SPECpower_ssj2008
Host 'WIN-O7O6EHP5IVF' Performance Report
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/TS10 (DL2) | ssj_ops@100% = 495,083 ssj_ops@100% per JVM = 247,541 |
||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Feb 22, 2013 |
| Hardware Availability: | Nov-2012 | Software Availability: | Jun-2012 | Publication: | Mar 20, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 492,605 | ||
| Calibration 2 | 497,494 | ||
| Calibration 3 | 497,739 | ||
| ssj_ops@calibrated=497,616 | |||
| 100% | 99.5% | 497,616 | 495,083 |
| 90% | 90.3% | 447,855 | 449,443 |
| 80% | 80.0% | 398,093 | 398,092 |
| 70% | 70.1% | 348,332 | 349,043 |
| 60% | 59.9% | 298,570 | 298,045 |
| 50% | 50.2% | 248,808 | 249,581 |
| 40% | 39.9% | 199,047 | 198,471 |
| 30% | 29.9% | 149,285 | 148,805 |
| 20% | 20.0% | 99,523 | 99,763 |
| 10% | 10.1% | 49,762 | 50,184 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/TS10 (DL2) |
| Form Factor: | 4U |
| CPU Name: | Intel Xeon E3-1280v2 |
| CPU Characteristics: | Quad Core, 3.60GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3600 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 GB |
| Memory Details: | 4GB 2Rx8 PC3L-12800E ECC CL11; slots DIMM_#2 and DIMM_#4 populated |
| Power Supply Quantity and Rating (W): | 1 x 400 |
| Power Supply Details: | DELTA DPS-400AB-14A |
| Disk Drive: | 1 x 500GB SATA (Hitachi P/N:GQ-UH72506B) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-Port Broadcom BCM5718 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1950m -Xmx1950m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start/affinity [F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1950 |
| JVM Maximum Heap (MB): | 1950 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | LU.1.00.01 |
| Management Firmware Version: | 06.33 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |

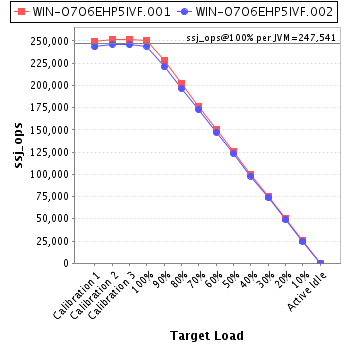

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-O7O6EHP5IVF.001 | 250,986 |
| WIN-O7O6EHP5IVF.002 | 244,097 |
| ssj_ops@100% | 495,083 |
| ssj_ops@100% per JVM | 247,541 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 249,330 | ||
| Calibration 2 | 251,178 | ||
| Calibration 3 | 251,988 | ||
| ssj_ops@calibrated=251,583 | |||
| 100% | 99.8% | 251,583 | 250,986 |
| 90% | 90.8% | 226,424 | 228,469 |
| 80% | 80.2% | 201,266 | 201,819 |
| 70% | 70.2% | 176,108 | 176,498 |
| 60% | 60.0% | 150,950 | 150,890 |
| 50% | 50.0% | 125,791 | 125,903 |
| 40% | 39.9% | 100,633 | 100,366 |
| 30% | 29.8% | 75,475 | 75,019 |
| 20% | 20.1% | 50,317 | 50,484 |
| 10% | 10.1% | 25,158 | 25,326 |
| Active Idle | 0 | 0 | |

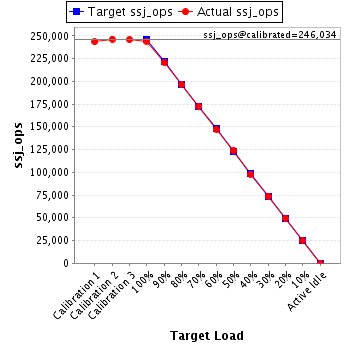

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 243,274 | ||
| Calibration 2 | 246,317 | ||
| Calibration 3 | 245,751 | ||
| ssj_ops@calibrated=246,034 | |||
| 100% | 99.2% | 246,034 | 244,097 |
| 90% | 89.8% | 221,430 | 220,974 |
| 80% | 79.8% | 196,827 | 196,273 |
| 70% | 70.1% | 172,224 | 172,546 |
| 60% | 59.8% | 147,620 | 147,155 |
| 50% | 50.3% | 123,017 | 123,678 |
| 40% | 39.9% | 98,413 | 98,105 |
| 30% | 30.0% | 73,810 | 73,785 |
| 20% | 20.0% | 49,207 | 49,279 |
| 10% | 10.1% | 24,603 | 24,858 |
| Active Idle | 0 | 0 | |
