SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/TS10 (DL2) | SPECpower_ssj2008 = 4,342 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Feb 22, 2013 |
| Hardware Availability: | Nov-2012 | Software Availability: | Jun-2012 | Publication: | Mar 20, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

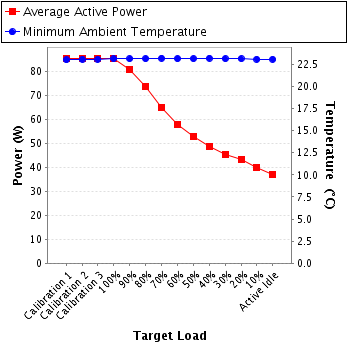

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 85.5 | 23.0 |
| Calibration 2 | 85.4 | 23.1 |
| Calibration 3 | 85.4 | 23.1 |
| 100% | 85.2 | 23.1 |
| 90% | 80.8 | 23.1 |
| 80% | 73.8 | 23.1 |
| 70% | 65.1 | 23.2 |
| 60% | 57.8 | 23.1 |
| 50% | 52.9 | 23.1 |
| 40% | 48.8 | 23.2 |
| 30% | 45.5 | 23.1 |
| 20% | 43.2 | 23.1 |
| 10% | 39.9 | 23.1 |
| Active Idle | 37.2 | 23.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2012-06-50931 |
| Date of Calibration: | 12-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 40 mm in front of SUT main airflow |

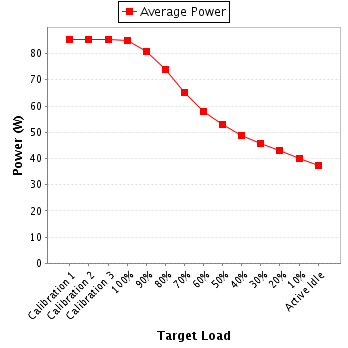

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 102 | 150.0 | 0.856 | 2.0 | 0.983 | 85.5 | 0.5% |
| Calibration 2 | 102 | 150.0 | 0.854 | 2.0 | 0.983 | 85.4 | 0.5% |
| Calibration 3 | 102 | 150.0 | 0.855 | 2.0 | 0.983 | 85.4 | 0.5% |
| 100% | 102 | 150.0 | 0.850 | 2.0 | 0.982 | 85.2 | 0.5% |
| 90% | 104 | 150.0 | 0.798 | 2.0 | 0.977 | 80.8 | 0.6% |
| 80% | 104 | 150.0 | 0.734 | 1.0 | 0.971 | 73.8 | 0.4% |
| 70% | 103 | 150.0 | 0.654 | 1.0 | 0.964 | 65.1 | 0.4% |
| 60% | 103 | 150.0 | 0.586 | 1.0 | 0.958 | 57.8 | 0.5% |
| 50% | 103 | 150.0 | 0.539 | 1.0 | 0.952 | 52.9 | 0.5% |
| 40% | 103 | 150.0 | 0.501 | 1.0 | 0.945 | 48.8 | 0.5% |
| 30% | 103 | 150.0 | 0.472 | 1.0 | 0.938 | 45.5 | 0.6% |
| 20% | 102 | 150.0 | 0.453 | 1.0 | 0.934 | 43.2 | 0.6% |
| 10% | 102 | 150.0 | 0.423 | 1.0 | 0.925 | 39.9 | 0.6% |
| Active Idle | 102 | 150.0 | 0.397 | 0.5 | 0.917 | 37.2 | 0.4% |
