Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz) SPECpower_ssj2008 = 4,982 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 11, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Feb 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,054 20.2
Calibration 2 4,076 20.2
Calibration 3 4,068 20.2
100% 4,057 20.1
90% 3,759 20.1
80% 3,233 20.2
70% 2,740 20.2
60% 2,359 20.2
50% 2,061 20.2
40% 1,886 20.2
30% 1,599 20.2
20% 1,396 20.3
10% 1,222 20.2
Active Idle 833 20.2

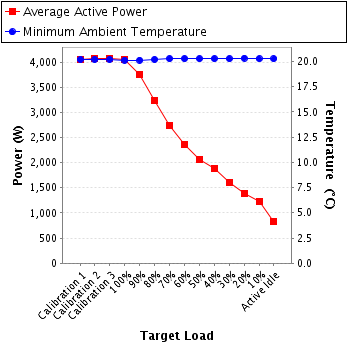

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91H723624
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 5497366
Date of Calibration: 17-Jan-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to SUT power supply 1 and 2
Power Analyzer pwr3
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91KA21980
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 5801064
Date of Calibration: 14-Sep-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to SUT power supply 3
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 9.73 20.0 0.991 1,963 0.5%
Calibration 2 203 300.0 13.1 20.0 0.989 2,631 0.4%
Calibration 3 203 300.0 13.1 20.0 0.989 2,630 0.4%
100% 203 300.0 13.0 20.0 0.989 2,617 0.4%
90% 204 300.0 12.1 20.0 0.989 2,431 0.4%
80% 205 300.0 10.2 20.0 0.988 2,064 0.5%
70% 206 300.0 8.54 10.0 0.987 1,732 0.4%
60% 206 300.0 7.25 10.0 0.987 1,475 0.4%
50% 206 300.0 6.26 10.0 0.987 1,275 0.4%
40% 207 300.0 4.35 10.0 0.981 882 0.5%
30% 207 300.0 3.65 5.0 0.977 739 0.4%
20% 208 300.0 3.15 5.0 0.972 636 0.4%
10% 207 300.0 2.74 5.0 0.963 547 0.5%
Active Idle 208 300.0 1.86 5.0 0.910 352 0.7%
Power details for pwr1
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 10.4 10.0 0.990 2,091 0.3%
Calibration 2 204 300.0 7.18 10.0 0.986 1,445 0.4%
Calibration 3 204 300.0 7.15 10.0 0.986 1,438 0.4%
100% 204 300.0 7.15 10.0 0.986 1,439 0.4%
90% 204 300.0 6.59 10.0 0.985 1,327 0.4%
80% 205 300.0 5.79 5.0 0.984 1,169 0.4%
70% 206 300.0 4.99 5.0 0.981 1,008 0.3%
60% 206 300.0 4.37 5.0 0.980 884 0.4%
50% 207 300.0 3.90 5.0 0.978 787 0.4%
40% 207 300.0 4.94 5.0 0.983 1,004 0.3%
30% 207 300.0 4.23 5.0 0.981 860 0.4%
20% 208 300.0 3.74 5.0 0.980 760 0.4%
10% 207 300.0 3.33 5.0 0.978 675 0.4%
Active Idle 208 300.0 2.40 2.0 0.965 481 0.4%
Power details for pwr3
