Acer Incoporated Acer AR360 F2 ssj_ops@100% = 1,435,697
ssj_ops@100% per JVM = 179,462
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: acer Incorporated Test Location: Taipei, R.O.C. Test Date: Dec 10, 2012
Hardware Availability: May-2012 Software Availability: Oct-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,415,684
Calibration 2     1,439,000
Calibration 3     1,442,260
ssj_ops@calibrated=1,440,630
100% 99.7% 1,440,630 1,435,697
90% 90.1% 1,296,567 1,297,557
80% 79.9% 1,152,504 1,150,879
70% 70.0% 1,008,441 1,007,940
60% 60.1% 864,378 865,402
50% 50.0% 720,315 720,975
40% 39.9% 576,252 575,426
30% 30.0% 432,189 432,447
20% 20.0% 288,126 288,246
10% 10.1% 144,063 145,611
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incoporated
Model: Acer AR360 F2
Form Factor: 1U
CPU Name: Intel Xeon E5-2660 2.2 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.2GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; Slots 1A, 1B, 1C, 1D and 1E, 1F are populated
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: Acer P/N PY.7000S.002
Disk Drive: 1 x 500GB 7.2K RPM SATA 2.5" HDD, Acer part #KH.50001.041
Disk Controller: onboard SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P03
Management Firmware Version: 1.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
AR360F2.001 176,999
AR360F2.002 175,499
AR360F2.003 174,587
AR360F2.004 175,972
AR360F2.005 185,004
AR360F2.006 183,871
AR360F2.007 180,751
AR360F2.008 183,015
ssj_ops@100% 1,435,697
ssj_ops@100% per JVM 179,462
Graph of per-instance results
JVM 'AR360F2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,043
Calibration 2     176,427
Calibration 3     176,968
ssj_ops@calibrated=176,697
100% 100.2% 176,697 176,999
90% 89.8% 159,028 158,625
80% 80.1% 141,358 141,523
70% 69.7% 123,688 123,168
60% 59.7% 106,018 105,451
50% 50.1% 88,349 88,444
40% 40.1% 70,679 70,846
30% 30.0% 53,009 53,050
20% 20.2% 35,339 35,608
10% 9.8% 17,670 17,342
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR360F2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,669
Calibration 2     175,974
Calibration 3     176,270
ssj_ops@calibrated=176,122
100% 99.6% 176,122 175,499
90% 90.6% 158,510 159,592
80% 79.7% 140,898 140,418
70% 69.7% 123,285 122,683
60% 59.3% 105,673 104,395
50% 50.4% 88,061 88,762
40% 40.2% 70,449 70,786
30% 29.7% 52,837 52,362
20% 20.2% 35,224 35,549
10% 10.0% 17,612 17,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR360F2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,773
Calibration 2     175,341
Calibration 3     175,285
ssj_ops@calibrated=175,313
100% 99.6% 175,313 174,587
90% 90.4% 157,782 158,403
80% 79.8% 140,250 139,823
70% 70.1% 122,719 122,824
60% 60.5% 105,188 106,085
50% 49.9% 87,656 87,417
40% 40.1% 70,125 70,361
30% 30.2% 52,594 52,974
20% 19.9% 35,063 34,809
10% 10.2% 17,531 17,855
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

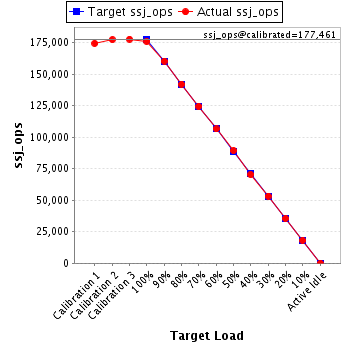

JVM 'AR360F2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,326
Calibration 2     177,247
Calibration 3     177,675
ssj_ops@calibrated=177,461
100% 99.2% 177,461 175,972
90% 90.3% 159,715 160,330
80% 80.0% 141,969 142,023
70% 70.1% 124,223 124,404
60% 60.0% 106,476 106,462
50% 50.3% 88,730 89,316
40% 39.6% 70,984 70,308
30% 30.0% 53,238 53,321
20% 20.0% 35,492 35,502
10% 10.3% 17,746 18,267
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR360F2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,966
Calibration 2     184,985
Calibration 3     184,913
ssj_ops@calibrated=184,949
100% 100.0% 184,949 185,004
90% 90.0% 166,454 166,498
80% 79.6% 147,959 147,213
70% 70.3% 129,464 130,079
60% 61.3% 110,969 113,378
50% 49.8% 92,474 92,148
40% 39.9% 73,980 73,799
30% 30.5% 55,485 56,325
20% 20.2% 36,990 37,303
10% 10.1% 18,495 18,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR360F2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,426
Calibration 2     184,871
Calibration 3     185,484
ssj_ops@calibrated=185,178
100% 99.3% 185,178 183,871
90% 90.2% 166,660 167,033
80% 80.0% 148,142 148,123
70% 69.7% 129,624 129,015
60% 60.3% 111,107 111,711
50% 50.0% 92,589 92,655
40% 40.2% 74,071 74,425
30% 29.6% 55,553 54,845
20% 19.9% 37,036 36,865
10% 10.2% 18,518 18,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR360F2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,169
Calibration 2     181,574
Calibration 3     182,160
ssj_ops@calibrated=181,867
100% 99.4% 181,867 180,751
90% 89.5% 163,680 162,734
80% 80.0% 145,493 145,408
70% 70.2% 127,307 127,755
60% 60.1% 109,120 109,236
50% 49.4% 90,933 89,805
40% 39.3% 72,747 71,523
30% 30.2% 54,560 54,848
20% 20.0% 36,373 36,437
10% 10.0% 18,187 18,199
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR360F2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,312
Calibration 2     182,581
Calibration 3     183,505
ssj_ops@calibrated=183,043
100% 100.0% 183,043 183,015
90% 89.8% 164,739 164,342
80% 80.0% 146,434 146,349
70% 69.9% 128,130 128,011
60% 59.4% 109,826 108,684
50% 50.5% 91,522 92,428
40% 40.1% 73,217 73,379
30% 29.9% 54,913 54,722
20% 19.8% 36,609 36,172
10% 10.2% 18,304 18,618
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
