Dell Inc. PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz) ssj_ops@100% = 802,370
ssj_ops@100% per JVM = 200,592
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 14, 2012
Hardware Availability: Feb-2013 Software Availability: Jun-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     789,831
Calibration 2     807,192
Calibration 3     805,392
ssj_ops@calibrated=806,292
100% 99.5% 806,292 802,370
90% 89.8% 725,663 724,147
80% 80.0% 645,034 644,771
70% 70.4% 564,404 567,247
60% 59.9% 483,775 483,216
50% 49.9% 403,146 402,292
40% 40.0% 322,517 322,735
30% 30.0% 241,888 241,885
20% 19.9% 161,258 160,821
10% 9.9% 80,629 80,026
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz)
Form Factor: Blade
CPU Name: AMD Opteron 4376HE
CPU Characteristics: 8-Core, 2.6GHz, 8MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 256 KB I + 128 KB D on chip per chip
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC ; slots A0,A1,B0,B1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 500GB 2.5" SATA 7200RPM (Dell PN: TH2NR)
Disk Controller: Onboard SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Plan in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.1.7
Management Firmware Version: 1.28
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-UEMOG929Onode2.001 202,132
WIN-UEMOG929Onode2.002 200,696
WIN-UEMOG929Onode2.003 202,140
WIN-UEMOG929Onode2.004 197,402
ssj_ops@100% 802,370
ssj_ops@100% per JVM 200,592
Graph of per-instance results
JVM 'WIN-UEMOG929Onode2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,242
Calibration 2     202,866
Calibration 3     202,641
ssj_ops@calibrated=202,753
100% 99.7% 202,753 202,132
90% 89.4% 182,478 181,199
80% 79.9% 162,203 162,100
70% 70.5% 141,927 143,017
60% 59.7% 121,652 120,999
50% 49.5% 101,377 100,463
40% 39.6% 81,101 80,314
30% 30.0% 60,826 60,837
20% 19.8% 40,551 40,108
10% 9.7% 20,275 19,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929Onode2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,930
Calibration 2     203,904
Calibration 3     201,129
ssj_ops@calibrated=202,517
100% 99.1% 202,517 200,696
90% 90.0% 182,265 182,199
80% 79.4% 162,013 160,804
70% 70.5% 141,762 142,715
60% 60.0% 121,510 121,429
50% 49.9% 101,258 101,081
40% 40.1% 81,007 81,139
30% 30.0% 60,755 60,658
20% 20.3% 40,503 41,072
10% 10.3% 20,252 20,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

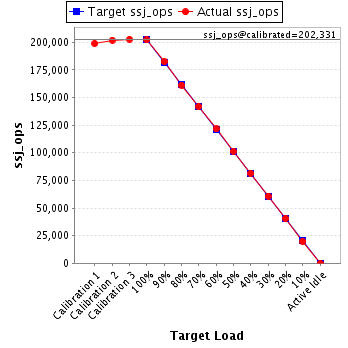

JVM 'WIN-UEMOG929Onode2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,721
Calibration 2     201,903
Calibration 3     202,760
ssj_ops@calibrated=202,331
100% 99.9% 202,331 202,140
90% 90.1% 182,098 182,289
80% 79.7% 161,865 161,290
70% 70.1% 141,632 141,816
60% 60.1% 121,399 121,515
50% 50.2% 101,166 101,473
40% 40.3% 80,932 81,481
30% 30.1% 60,699 60,804
20% 20.0% 40,466 40,479
10% 9.7% 20,233 19,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

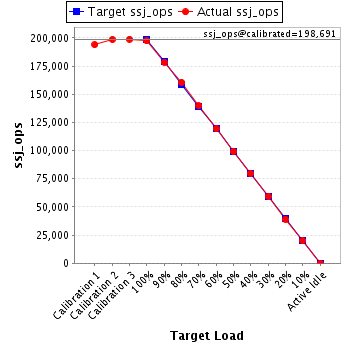

JVM 'WIN-UEMOG929Onode2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,939
Calibration 2     198,519
Calibration 3     198,862
ssj_ops@calibrated=198,691
100% 99.4% 198,691 197,402
90% 89.8% 178,822 178,461
80% 80.8% 158,953 160,577
70% 70.3% 139,083 139,700
60% 60.0% 119,214 119,273
50% 50.0% 99,345 99,276
40% 40.2% 79,476 79,802
30% 30.0% 59,607 59,586
20% 19.7% 39,738 39,162
10% 10.0% 19,869 19,814
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
