SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz) | SPECpower_ssj2008 = 4,510 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Sep 14, 2012 |
| Hardware Availability: | Feb-2013 | Software Availability: | Jun-2012 | Publication: | Jan 9, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

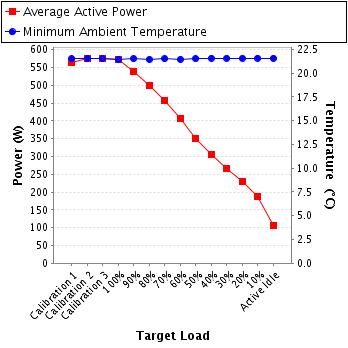

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 565 | 21.5 |
| Calibration 2 | 574 | 21.5 |
| Calibration 3 | 576 | 21.5 |
| 100% | 573 | 21.4 |
| 90% | 538 | 21.5 |
| 80% | 501 | 21.4 |
| 70% | 458 | 21.5 |
| 60% | 408 | 21.4 |
| 50% | 350 | 21.5 |
| 40% | 307 | 21.6 |
| 30% | 266 | 21.6 |
| 20% | 229 | 21.6 |
| 10% | 187 | 21.6 |
| Active Idle | 106 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K948943 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Simco Electronics |
| Calibration Label: | 4985261 |
| Date of Calibration: | 28-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | SUT Power Supply 1 and 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.3.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main airflow intake |

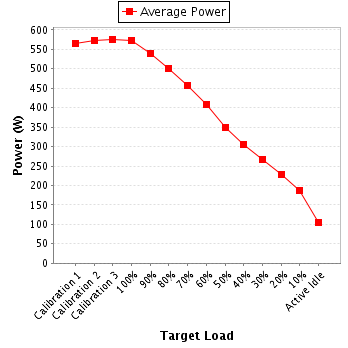

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.75 | 5.0 | 0.990 | 565 | 0.4% |
| Calibration 2 | 207 | 300.0 | 2.80 | 5.0 | 0.990 | 574 | 0.4% |
| Calibration 3 | 207 | 300.0 | 2.81 | 5.0 | 0.990 | 576 | 0.4% |
| 100% | 208 | 300.0 | 2.78 | 5.0 | 0.990 | 573 | 0.4% |
| 90% | 208 | 300.0 | 2.61 | 5.0 | 0.989 | 538 | 0.5% |
| 80% | 207 | 300.0 | 2.44 | 5.0 | 0.988 | 501 | 0.5% |
| 70% | 207 | 300.0 | 2.24 | 5.0 | 0.986 | 458 | 0.5% |
| 60% | 208 | 300.0 | 2.00 | 2.0 | 0.983 | 408 | 0.3% |
| 50% | 208 | 300.0 | 1.72 | 2.0 | 0.979 | 350 | 0.4% |
| 40% | 208 | 300.0 | 1.51 | 2.0 | 0.976 | 307 | 0.4% |
| 30% | 208 | 300.0 | 1.32 | 2.0 | 0.971 | 266 | 0.4% |
| 20% | 208 | 300.0 | 1.15 | 2.0 | 0.964 | 229 | 0.5% |
| 10% | 208 | 300.0 | 0.946 | 1.0 | 0.953 | 187 | 0.4% |
| Active Idle | 208 | 300.0 | 0.567 | 1.0 | 0.899 | 106 | 0.5% |
