Tyan Computer Corporation B8228Y190X2-045V4H ssj_ops@100% = 971,064
ssj_ops@100% per JVM = 121,383
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: AMD Performance Lab Test Location: Austin, TX, USA Test Date: Nov 8, 2012
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Dec 4, 2012
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     935,537
Calibration 2     974,533
Calibration 3     976,386
ssj_ops@calibrated=975,459
100% 99.5% 975,459 971,064
90% 90.1% 877,913 879,218
80% 79.7% 780,368 777,335
70% 70.1% 682,822 684,076
60% 60.0% 585,276 584,877
50% 49.9% 487,730 486,671
40% 40.1% 390,184 391,022
30% 29.8% 292,638 290,508
20% 19.9% 195,092 193,837
10% 10.0% 97,546 97,613
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Tyan Computer Corporation
Model: B8228Y190X2-045V4H
Form Factor: 1 of 2 Blades in 1U Rackmount Frame
CPU Name: AMD Opteron 4386
CPU Characteristics: 8 Core, 3.1GHz, 6MB L3 Cache
CPU Frequency (MHz): 3100
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 256 KB I + 128 KB D on chip per chip
Secondary Cache: 8 MB I+D on chip per chip
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8 GB
Memory Details: 8GB 2Rx4 PC3L-12800R
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: 3Y Power Technology YM-2451C
Disk Drive: 1 x 128GB, SSD, 2.5" SATA, WD SSC-D0128SC-2100
Disk Controller: Integrated AMD SP5100 SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 GigaBit Dual Port
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Power profile
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1(64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corparation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209(JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1875m -Xmn1400m -Xmx1875m -Xlp -Xaggressive -XlockReservation -Xcompressedrefs -Xnoloa -Xgcpolicy:gencon -Xthr:minimizeUserCPU -Xgcthreads2
JVM Affinity: start /affinity [03,0C,30,C0] /node [0|1]
JVM Instances: 8
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: .25
Management Firmware Version: 1.0
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
svrpwr-tyan.001 122,427
svrpwr-tyan.002 123,605
svrpwr-tyan.003 121,127
svrpwr-tyan.004 121,959
svrpwr-tyan.005 119,729
svrpwr-tyan.006 119,768
svrpwr-tyan.007 120,784
svrpwr-tyan.008 121,664
ssj_ops@100% 971,064
ssj_ops@100% per JVM 121,383

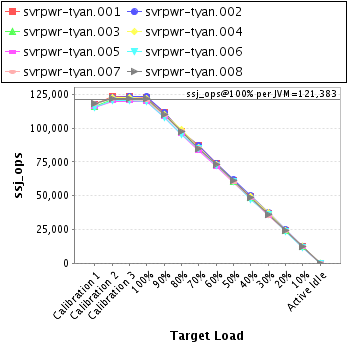

Graph of per-instance results
JVM 'svrpwr-tyan.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,482
Calibration 2     123,326
Calibration 3     123,561
ssj_ops@calibrated=123,444
100% 99.2% 123,444 122,427
90% 90.6% 111,099 111,779
80% 79.2% 98,755 97,821
70% 70.9% 86,411 87,492
60% 59.8% 74,066 73,774
50% 49.9% 61,722 61,620
40% 39.9% 49,378 49,246
30% 29.9% 37,033 36,892
20% 19.6% 24,689 24,166
10% 9.9% 12,344 12,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,514
Calibration 2     122,937
Calibration 3     123,730
ssj_ops@calibrated=123,333
100% 100.2% 123,333 123,605
90% 90.5% 111,000 111,648
80% 79.1% 98,667 97,564
70% 70.7% 86,333 87,227
60% 60.1% 74,000 74,102
50% 50.1% 61,667 61,829
40% 40.5% 49,333 49,918
30% 30.3% 37,000 37,310
20% 20.2% 24,667 24,969
10% 9.9% 12,333 12,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,936
Calibration 2     121,354
Calibration 3     121,775
ssj_ops@calibrated=121,565
100% 99.6% 121,565 121,127
90% 90.7% 109,408 110,304
80% 80.1% 97,252 97,414
70% 70.1% 85,095 85,266
60% 60.1% 72,939 73,053
50% 50.0% 60,782 60,837
40% 40.2% 48,626 48,883
30% 29.9% 36,469 36,329
20% 19.8% 24,313 24,060
10% 10.1% 12,156 12,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,253
Calibration 2     122,811
Calibration 3     123,015
ssj_ops@calibrated=122,913
100% 99.2% 122,913 121,959
90% 89.5% 110,621 109,948
80% 80.4% 98,330 98,796
70% 70.1% 86,039 86,104
60% 59.6% 73,748 73,275
50% 49.2% 61,456 60,528
40% 40.5% 49,165 49,718
30% 30.4% 36,874 37,319
20% 19.6% 24,583 24,113
10% 10.1% 12,291 12,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,674
Calibration 2     120,151
Calibration 3     120,105
ssj_ops@calibrated=120,128
100% 99.7% 120,128 119,729
90% 89.9% 108,115 107,964
80% 79.6% 96,102 95,629
70% 69.4% 84,089 83,324
60% 59.5% 72,077 71,527
50% 49.9% 60,064 59,932
40% 40.2% 48,051 48,237
30% 29.4% 36,038 35,354
20% 20.4% 24,026 24,448
10% 10.0% 12,013 11,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,212
Calibration 2     120,238
Calibration 3     120,581
ssj_ops@calibrated=120,410
100% 99.5% 120,410 119,768
90% 89.8% 108,369 108,125
80% 79.0% 96,328 95,149
70% 70.3% 84,287 84,679
60% 60.0% 72,246 72,272
50% 50.3% 60,205 60,622
40% 39.5% 48,164 47,591
30% 29.9% 36,123 35,983
20% 19.6% 24,082 23,590
10% 9.9% 12,041 11,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,020
Calibration 2     121,879
Calibration 3     121,618
ssj_ops@calibrated=121,749
100% 99.2% 121,749 120,784
90% 89.9% 109,574 109,480
80% 80.2% 97,399 97,679
70% 70.1% 85,224 85,338
60% 60.3% 73,049 73,466
50% 49.3% 60,874 59,968
40% 39.9% 48,700 48,550
30% 29.0% 36,525 35,303
20% 19.7% 24,350 24,024
10% 10.1% 12,175 12,276
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,446
Calibration 2     121,836
Calibration 3     122,001
ssj_ops@calibrated=121,919
100% 99.8% 121,919 121,664
90% 90.2% 109,727 109,971
80% 79.8% 97,535 97,283
70% 69.4% 85,343 84,647
60% 60.2% 73,151 73,406
50% 50.3% 60,959 61,335
40% 40.1% 48,768 48,879
30% 29.5% 36,576 36,018
20% 20.1% 24,384 24,466
10% 10.0% 12,192 12,249
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
