Dell Inc. PowerEdge R620 (Intel Xeon E5-2660, 2.20 GHz) ssj_ops@100% = 1,447,399
ssj_ops@100% per JVM = 180,925
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Nov 7, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,202
Calibration 2     1,462,801
Calibration 3     1,460,247
ssj_ops@calibrated=1,461,524
100% 99.0% 1,461,524 1,447,399
90% 89.7% 1,315,372 1,310,702
80% 80.1% 1,169,219 1,170,238
70% 69.8% 1,023,067 1,020,414
60% 60.0% 876,914 876,669
50% 49.8% 730,762 727,311
40% 40.0% 584,610 584,691
30% 29.8% 438,457 436,195
20% 20.0% 292,305 292,928
10% 10.0% 146,152 146,273
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R620.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R620 (Intel Xeon E5-2660, 2.20 GHz)
Form Factor: 1U
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3,B1-3 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell P/N XYXMG
Disk Drive: 1 x 200GB SATA SSD, Dell P/N 24XV8
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver plan in OS
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: R2 SP1 build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.3.6
Management Firmware Version: 1.23.23 (Build 1)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
  • QPI Speed set to 6.4GT/s
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher disabled
  • DCU Streamer Prefetcher disabled
  • System Profile set to Custom
  • CPU Power Management set to DAPC
  • Memory Frequency set to 1333MHz
  • Intel Turbo Boost enabled
  • Memory Patrol Scrub set to disabled
  • Memory Refresh Rate set to 1x
  • Memory Operating Voltage set to Auto
  • Collaborative CPU Performance Control disabled
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    WIN-BHAB93BNEPU.001 180,033
    WIN-BHAB93BNEPU.002 181,136
    WIN-BHAB93BNEPU.003 180,213
    WIN-BHAB93BNEPU.004 180,511
    WIN-BHAB93BNEPU.005 181,712
    WIN-BHAB93BNEPU.006 182,430
    WIN-BHAB93BNEPU.007 180,652
    WIN-BHAB93BNEPU.008 180,712
    ssj_ops@100% 1,447,399
    ssj_ops@100% per JVM 180,925

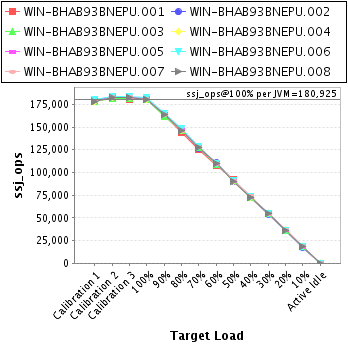

    Graph of per-instance results
    JVM 'WIN-BHAB93BNEPU.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     178,839
    Calibration 2     181,964
    Calibration 3     180,668
    ssj_ops@calibrated=181,316
    100% 99.3% 181,316 180,033
    90% 90.0% 163,184 163,105
    80% 79.4% 145,053 143,969
    70% 69.2% 126,921 125,529
    60% 59.6% 108,790 108,067
    50% 50.7% 90,658 92,005
    40% 40.1% 72,526 72,761
    30% 30.2% 54,395 54,799
    20% 20.2% 36,263 36,637
    10% 10.0% 18,132 18,156
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-BHAB93BNEPU.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     179,879
    Calibration 2     183,454
    Calibration 3     182,734
    ssj_ops@calibrated=183,094
    100% 98.9% 183,094 181,136
    90% 89.8% 164,784 164,368
    80% 80.3% 146,475 147,089
    70% 69.2% 128,166 126,673
    60% 60.4% 109,856 110,600
    50% 49.5% 91,547 90,552
    40% 39.8% 73,237 72,846
    30% 29.6% 54,928 54,218
    20% 20.0% 36,619 36,548
    10% 9.7% 18,309 17,850
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-BHAB93BNEPU.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     177,708
    Calibration 2     181,822
    Calibration 3     181,434
    ssj_ops@calibrated=181,628
    100% 99.2% 181,628 180,213
    90% 88.8% 163,465 161,229
    80% 80.2% 145,302 145,752
    70% 70.0% 127,139 127,118
    60% 59.8% 108,977 108,635
    50% 50.2% 90,814 91,149
    40% 39.8% 72,651 72,294
    30% 30.1% 54,488 54,629
    20% 19.9% 36,326 36,204
    10% 10.1% 18,163 18,320
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

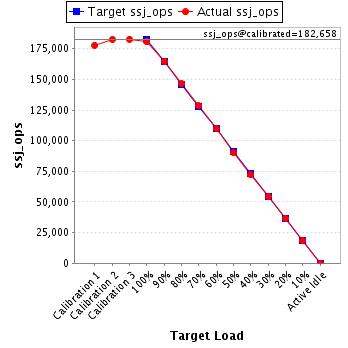

    JVM 'WIN-BHAB93BNEPU.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     177,739
    Calibration 2     182,508
    Calibration 3     182,808
    ssj_ops@calibrated=182,658
    100% 98.8% 182,658 180,511
    90% 90.2% 164,392 164,792
    80% 80.2% 146,126 146,415
    70% 70.4% 127,861 128,513
    60% 60.1% 109,595 109,846
    50% 49.4% 91,329 90,142
    40% 39.5% 73,063 72,204
    30% 29.8% 54,797 54,414
    20% 20.1% 36,532 36,667
    10% 10.1% 18,266 18,386
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-BHAB93BNEPU.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     179,691
    Calibration 2     183,880
    Calibration 3     182,554
    ssj_ops@calibrated=183,217
    100% 99.2% 183,217 181,712
    90% 90.0% 164,895 164,845
    80% 80.2% 146,574 146,942
    70% 70.2% 128,252 128,620
    60% 59.9% 109,930 109,667
    50% 49.7% 91,609 90,979
    40% 39.9% 73,287 73,170
    30% 29.9% 54,965 54,780
    20% 20.1% 36,643 36,875
    10% 9.8% 18,322 18,017
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-BHAB93BNEPU.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     179,924
    Calibration 2     183,567
    Calibration 3     184,060
    ssj_ops@calibrated=183,813
    100% 99.2% 183,813 182,430
    90% 89.8% 165,432 165,072
    80% 80.9% 147,051 148,761
    70% 69.8% 128,669 128,372
    60% 59.9% 110,288 110,122
    50% 49.6% 91,907 91,168
    40% 40.2% 73,525 73,979
    30% 29.6% 55,144 54,371
    20% 19.9% 36,763 36,633
    10% 10.1% 18,381 18,562
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-BHAB93BNEPU.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     178,438
    Calibration 2     183,065
    Calibration 3     183,161
    ssj_ops@calibrated=183,113
    100% 98.7% 183,113 180,652
    90% 89.5% 164,801 163,809
    80% 79.3% 146,490 145,269
    70% 69.8% 128,179 127,837
    60% 60.0% 109,868 109,820
    50% 49.6% 91,556 90,859
    40% 40.7% 73,245 74,554
    30% 29.6% 54,934 54,139
    20% 20.2% 36,623 36,966
    10% 10.2% 18,311 18,704
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

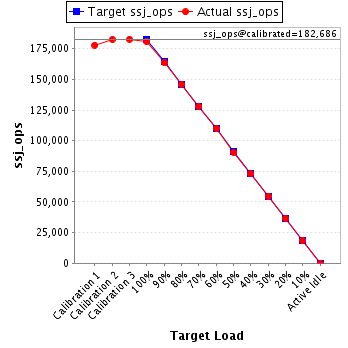

    JVM 'WIN-BHAB93BNEPU.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     177,985
    Calibration 2     182,543
    Calibration 3     182,829
    ssj_ops@calibrated=182,686
    100% 98.9% 182,686 180,712
    90% 89.5% 164,417 163,482
    80% 79.9% 146,149 146,041
    70% 69.9% 127,880 127,752
    60% 60.2% 109,611 109,913
    50% 49.5% 91,343 90,456
    40% 39.9% 73,074 72,883
    30% 30.0% 54,806 54,845
    20% 19.9% 36,537 36,398
    10% 10.0% 18,269 18,279
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
