Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,397,144
ssj_ops@100% per JVM = 174,643
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Nov 6, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Nov 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,237,748
Calibration 2     1,396,021
Calibration 3     1,397,530
ssj_ops@calibrated=1,396,776
100% 100.0% 1,396,776 1,397,144
90% 91.0% 1,257,098 1,270,752
80% 80.1% 1,117,421 1,118,961
70% 70.1% 977,743 979,033
60% 60.3% 838,065 842,469
50% 50.0% 698,388 698,101
40% 40.1% 558,710 559,869
30% 29.8% 419,033 416,124
20% 19.9% 279,355 278,266
10% 10.0% 139,678 139,129
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20 MB L3 Cache (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1 B1,C1, D1, populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V030
Management Firmware Version: 3.02
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-520TS8TU0CT.001 174,752
WIN-520TS8TU0CT.002 174,340
WIN-520TS8TU0CT.003 175,136
WIN-520TS8TU0CT.004 172,780
WIN-520TS8TU0CT.005 175,345
WIN-520TS8TU0CT.006 175,160
WIN-520TS8TU0CT.007 172,887
WIN-520TS8TU0CT.008 176,744
ssj_ops@100% 1,397,144
ssj_ops@100% per JVM 174,643

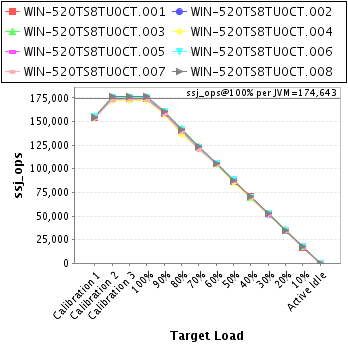

Graph of per-instance results

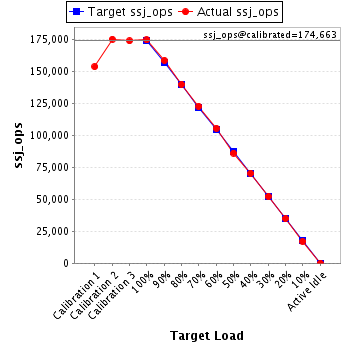

JVM 'WIN-520TS8TU0CT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,792
Calibration 2     175,366
Calibration 3     173,960
ssj_ops@calibrated=174,663
100% 100.1% 174,663 174,752
90% 90.8% 157,196 158,679
80% 80.1% 139,730 139,945
70% 70.4% 122,264 122,919
60% 60.5% 104,798 105,621
50% 49.4% 87,331 86,238
40% 40.3% 69,865 70,409
30% 29.9% 52,399 52,273
20% 20.0% 34,933 34,905
10% 9.8% 17,466 17,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-520TS8TU0CT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,161
Calibration 2     173,590
Calibration 3     174,789
ssj_ops@calibrated=174,190
100% 100.1% 174,190 174,340
90% 91.1% 156,771 158,703
80% 79.9% 139,352 139,127
70% 70.1% 121,933 122,046
60% 60.8% 104,514 105,875
50% 50.8% 87,095 88,439
40% 40.2% 69,676 70,005
30% 29.6% 52,257 51,536
20% 19.9% 34,838 34,655
10% 10.0% 17,419 17,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

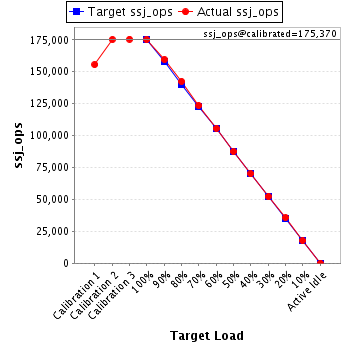

JVM 'WIN-520TS8TU0CT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,608
Calibration 2     175,216
Calibration 3     175,523
ssj_ops@calibrated=175,370
100% 99.9% 175,370 175,136
90% 91.0% 157,833 159,557
80% 81.2% 140,296 142,472
70% 70.5% 122,759 123,607
60% 60.3% 105,222 105,682
50% 49.9% 87,685 87,561
40% 39.9% 70,148 70,044
30% 29.8% 52,611 52,339
20% 20.3% 35,074 35,643
10% 10.1% 17,537 17,718
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-520TS8TU0CT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,651
Calibration 2     172,782
Calibration 3     172,231
ssj_ops@calibrated=172,506
100% 100.2% 172,506 172,780
90% 91.1% 155,256 157,116
80% 79.2% 138,005 136,651
70% 70.5% 120,754 121,678
60% 60.3% 103,504 104,038
50% 49.7% 86,253 85,774
40% 39.8% 69,003 68,653
30% 29.7% 51,752 51,306
20% 20.1% 34,501 34,695
10% 10.0% 17,251 17,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-520TS8TU0CT.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,438
Calibration 2     174,250
Calibration 3     174,967
ssj_ops@calibrated=174,608
100% 100.4% 174,608 175,345
90% 90.5% 157,147 158,056
80% 79.8% 139,687 139,360
70% 69.9% 122,226 122,038
60% 60.5% 104,765 105,696
50% 49.9% 87,304 87,170
40% 40.3% 69,843 70,417
30% 29.5% 52,382 51,562
20% 19.9% 34,922 34,713
10% 10.0% 17,461 17,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-520TS8TU0CT.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,673
Calibration 2     175,410
Calibration 3     175,887
ssj_ops@calibrated=175,649
100% 99.7% 175,649 175,160
90% 91.2% 158,084 160,238
80% 80.4% 140,519 141,168
70% 69.7% 122,954 122,469
60% 60.2% 105,389 105,791
50% 50.3% 87,824 88,330
40% 39.9% 70,259 70,044
30% 30.0% 52,695 52,614
20% 19.6% 35,130 34,513
10% 9.9% 17,565 17,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-520TS8TU0CT.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,701
Calibration 2     172,828
Calibration 3     173,372
ssj_ops@calibrated=173,100
100% 99.9% 173,100 172,887
90% 91.3% 155,790 158,079
80% 80.3% 138,480 139,037
70% 69.6% 121,170 120,393
60% 60.2% 103,860 104,154
50% 50.4% 86,550 87,163
40% 40.1% 69,240 69,460
30% 29.9% 51,930 51,743
20% 19.8% 34,620 34,269
10% 10.1% 17,310 17,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-520TS8TU0CT.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,724
Calibration 2     176,580
Calibration 3     176,801
ssj_ops@calibrated=176,691
100% 100.0% 176,691 176,744
90% 90.7% 159,022 160,325
80% 79.9% 141,353 141,201
70% 70.1% 123,684 123,883
60% 59.8% 106,014 105,612
50% 49.5% 88,345 87,426
40% 40.1% 70,676 70,837
30% 29.9% 53,007 52,751
20% 19.7% 35,338 34,872
10% 9.8% 17,669 17,392
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
