Huawei Technologies Co., Ltd RH2288 V2 SPECpower_ssj2008 = 5,544 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Nov 6, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Nov 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 212 22.6
Calibration 2 231 22.4
Calibration 3 231 22.2
100% 231 22.1
90% 209 22.1
80% 169 22.1
70% 146 22.1
60% 127 22.2
50% 110 22.2
40% 100 22.4
30% 91.3 22.4
20% 81.9 22.4
10% 71.3 22.5
Active Idle 52.4 22.5

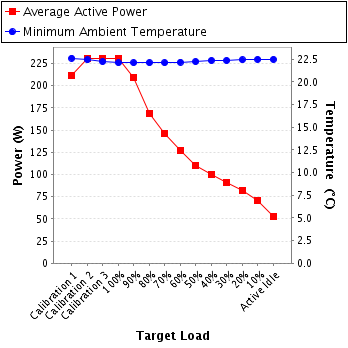

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB12006186-0010"
Date of Calibration: 30-Jul-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 224 300.0 0.988 2.0 0.972 212 0.4%
Calibration 2 223 300.0 1.06 2.0 0.975 231 0.4%
Calibration 3 224 300.0 1.06 2.0 0.975 231 0.4%
100% 224 300.0 1.06 2.0 0.975 231 0.4%
90% 223 300.0 0.971 1.0 0.968 209 0.3%
80% 223 300.0 0.787 1.0 0.964 169 0.3%
70% 223 300.0 0.679 1.0 0.965 146 0.4%
60% 223 300.0 0.595 1.0 0.956 127 0.4%
50% 223 300.0 0.519 1.0 0.947 110 0.4%
40% 223 300.0 0.477 1.0 0.939 100 0.5%
30% 223 300.0 0.441 0.5 0.930 91.3 0.3%
20% 225 300.0 0.396 0.5 0.921 81.9 0.4%
10% 227 300.0 0.348 0.5 0.900 71.3 0.4%
Active Idle 227 300.0 0.272 0.5 0.849 52.4 0.5%
Power details for pwr1
