Supermicro Inc. System 1027B-URF SPECpower_ssj2008 = 3,913 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: San Jose, CA, USA Test Date: Jun 19, 2012
Hardware Availability: Jun-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 1,288,201 285 4,520
90% 89.9% 1,164,539 266 4,371
80% 80.0% 1,036,252 217 4,770
70% 70.2% 909,138 201 4,527
60% 60.1% 778,913 182 4,276
50% 50.0% 647,298 162 3,994
40% 39.9% 517,396 139 3,719
30% 30.2% 390,700 118 3,301
20% 20.0% 259,606 101 2,579
10% 10.0% 129,284 85.7 1,509
Active Idle 0 62.4 0
∑ssj_ops / ∑power = 3,913

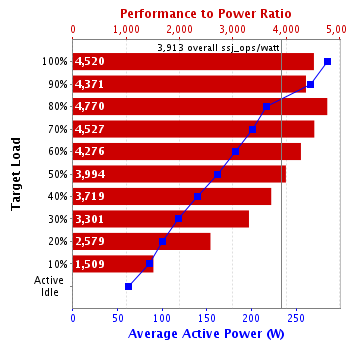

Graph of results
System Under Test
Set: '1027B'
Set Identifier: 1027B
Set Description: 1027B-URF
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Supermicro Inc.
Model: System 1027B-URF
Form Factor: 1U
CPU Name: Intel Xeon E5-2470 (2.30GHz)
CPU Characteristics: 8-Core, 2.30 GHz (Turbo Boost Technology up to 3.10 GHz), 20 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E-9-10 slots 1-3-5-7-9-11 populated
Power Supply Quantity and Rating (W): 1 x 500
Power Supply Details: Supermicro P/N: PWS-504P-1R
Disk Drive: 1 x 250GB SATA 3.0Gb/s 7200RPM Supermicro P/N:HDDT0250-WD2503ABYX
Disk Controller: Onboard SATA Intel C602 Chipset
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Dual Port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
OS Version: 6.1.7601 (64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corp.
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_33-b03)
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 5/10/2012 Ver1.0
Management Firmware Version: 1.48
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Supermicro Inc.
Model: SYS-1022G-URF
CPU Description: AMD Opteron 6220 (3.00GHz)
Memory amount (GB): 8
Software
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
JVM Vendor: Oracle Corp.
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_33-b03)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M516275
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NIST
Accredited by: SE Laboratories
Calibration Label: C56-0082
Date of Calibration: 7-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H Host
Driver Version: 5.30
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
="SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this java version"
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 285 22.4
90% 266 22.8
80% 217 22.2
70% 201 23.4
60% 182 22.0
50% 162 22.4
40% 139 22.4
30% 118 22.2
20% 101 23.2
10% 85.7 22.4
Active Idle 62.4 23.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.0 26
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,299,580
Calibration 2     1,293,983
Calibration 3     1,297,586
ssj_ops@calibrated=1,295,784
100% 99.4% 1,295,784 1,288,201
90% 89.9% 1,166,206 1,164,539
80% 80.0% 1,036,628 1,036,252
70% 70.2% 907,049 909,138
60% 60.1% 777,471 778,913
50% 50.0% 647,892 647,298
40% 39.9% 518,314 517,396
30% 30.2% 388,735 390,700
20% 20.0% 259,157 259,606
10% 10.0% 129,578 129,284
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
