IBM Corporation IBM System x3550 M4 ssj_ops@100% = 1,452,648
ssj_ops@100% per JVM = 181,581
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Oct 9, 2012
Hardware Availability: Sep-2012 Software Availability: Dec-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,424,202
Calibration 2     1,455,494
Calibration 3     1,456,796
ssj_ops@calibrated=1,456,145
100% 99.8% 1,456,145 1,452,648
90% 89.8% 1,310,530 1,307,796
80% 79.8% 1,164,916 1,162,212
70% 70.0% 1,019,301 1,019,850
60% 60.1% 873,687 874,626
50% 49.9% 728,072 727,266
40% 40.0% 582,458 582,407
30% 30.0% 436,843 437,416
20% 20.0% 291,229 291,318
10% 10.1% 145,614 146,776
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3550 M4
Form Factor: 1U
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8-Core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1, 4, 12, 13, 16 and 24 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: IBM 550w PSU(43X3311)
Disk Drive: 1 x 200GB SSD(x3550 M4 High Power Efficiency Kit, Feature Code: A2V6)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: D7E123D
Management Firmware Version: 1AOO31M
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-MOJO3PBBE6K.001 182,398
WIN-MOJO3PBBE6K.002 183,698
WIN-MOJO3PBBE6K.003 182,037
WIN-MOJO3PBBE6K.004 179,781
WIN-MOJO3PBBE6K.005 180,796
WIN-MOJO3PBBE6K.006 181,266
WIN-MOJO3PBBE6K.007 179,451
WIN-MOJO3PBBE6K.008 183,222
ssj_ops@100% 1,452,648
ssj_ops@100% per JVM 181,581

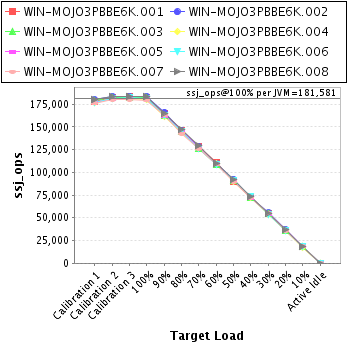

Graph of per-instance results
JVM 'WIN-MOJO3PBBE6K.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,358
Calibration 2     182,850
Calibration 3     183,026
ssj_ops@calibrated=182,938
100% 99.7% 182,938 182,398
90% 89.9% 164,644 164,446
80% 80.0% 146,350 146,350
70% 70.3% 128,057 128,592
60% 60.3% 109,763 110,378
50% 49.2% 91,469 90,052
40% 40.0% 73,175 73,233
30% 30.1% 54,881 55,039
20% 19.7% 36,588 36,032
10% 10.1% 18,294 18,395
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MOJO3PBBE6K.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,862
Calibration 2     183,415
Calibration 3     183,715
ssj_ops@calibrated=183,565
100% 100.1% 183,565 183,698
90% 90.5% 165,208 166,153
80% 79.4% 146,852 145,836
70% 70.0% 128,495 128,455
60% 59.7% 110,139 109,502
50% 50.4% 91,782 92,540
40% 39.6% 73,426 72,732
30% 30.2% 55,069 55,348
20% 20.3% 36,713 37,326
10% 10.0% 18,356 18,328
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MOJO3PBBE6K.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,202
Calibration 2     182,544
Calibration 3     181,914
ssj_ops@calibrated=182,229
100% 99.9% 182,229 182,037
90% 89.2% 164,006 162,622
80% 79.6% 145,783 145,050
70% 69.5% 127,560 126,630
60% 59.7% 109,337 108,740
50% 50.3% 91,115 91,591
40% 40.0% 72,892 72,842
30% 29.8% 54,669 54,386
20% 19.8% 36,446 36,161
10% 10.1% 18,223 18,462
Active Idle   0 0

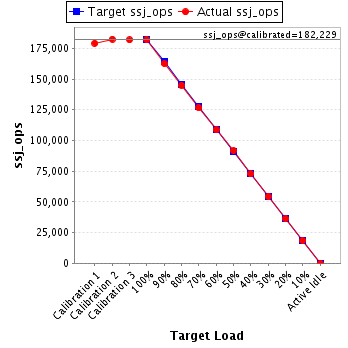

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MOJO3PBBE6K.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,405
Calibration 2     181,388
Calibration 3     181,041
ssj_ops@calibrated=181,215
100% 99.2% 181,215 179,781
90% 89.3% 163,093 161,830
80% 79.2% 144,972 143,556
70% 70.0% 126,850 126,879
60% 60.5% 108,729 109,616
50% 49.5% 90,607 89,678
40% 40.0% 72,486 72,409
30% 29.8% 54,364 54,018
20% 20.0% 36,243 36,204
10% 9.9% 18,121 17,885
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MOJO3PBBE6K.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,324
Calibration 2     181,049
Calibration 3     181,482
ssj_ops@calibrated=181,265
100% 99.7% 181,265 180,796
90% 89.7% 163,139 162,537
80% 80.7% 145,012 146,257
70% 70.3% 126,886 127,428
60% 60.1% 108,759 108,864
50% 50.1% 90,633 90,885
40% 39.8% 72,506 72,144
30% 30.0% 54,380 54,313
20% 20.5% 36,253 37,128
10% 10.2% 18,127 18,465
Active Idle   0 0

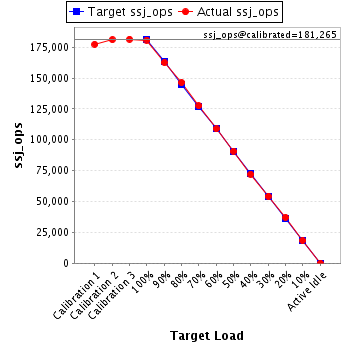

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MOJO3PBBE6K.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,348
Calibration 2     180,856
Calibration 3     181,959
ssj_ops@calibrated=181,408
100% 99.9% 181,408 181,266
90% 89.4% 163,267 162,224
80% 79.9% 145,126 144,911
70% 69.7% 126,985 126,503
60% 59.9% 108,845 108,743
50% 50.1% 90,704 90,954
40% 40.4% 72,563 73,375
30% 29.8% 54,422 54,079
20% 19.7% 36,282 35,826
10% 10.0% 18,141 18,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MOJO3PBBE6K.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,061
Calibration 2     179,944
Calibration 3     179,878
ssj_ops@calibrated=179,911
100% 99.7% 179,911 179,451
90% 90.5% 161,920 162,763
80% 79.3% 143,929 142,698
70% 70.1% 125,938 126,072
60% 60.5% 107,947 108,931
50% 49.9% 89,956 89,753
40% 40.1% 71,964 72,184
30% 30.6% 53,973 55,003
20% 20.0% 35,982 36,004
10% 10.3% 17,991 18,582
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MOJO3PBBE6K.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,641
Calibration 2     183,447
Calibration 3     183,782
ssj_ops@calibrated=183,615
100% 99.8% 183,615 183,222
90% 90.0% 165,253 165,221
80% 80.4% 146,892 147,553
70% 70.4% 128,530 129,291
60% 59.8% 110,169 109,852
50% 50.0% 91,807 91,812
40% 40.0% 73,446 73,489
30% 30.1% 55,084 55,230
20% 20.0% 36,723 36,637
10% 10.1% 18,361 18,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
