IBM Corporation IBM System x iDataPlex dx360 M4 ssj_ops@100% = 2,899,364
ssj_ops@100% per Host = 1,449,682
ssj_ops@100% per JVM = 181,210
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Aug 23, 2012
Hardware Availability: Apr-2012 Software Availability: Dec-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,828,127
Calibration 2     2,905,632
Calibration 3     2,905,737
ssj_ops@calibrated=2,905,685
100% 99.8% 2,905,685 2,899,364
90% 90.1% 2,615,116 2,619,432
80% 80.0% 2,324,548 2,325,902
70% 70.1% 2,033,979 2,036,116
60% 60.2% 1,743,411 1,749,969
50% 50.0% 1,452,842 1,453,774
40% 39.9% 1,162,274 1,159,529
30% 30.0% 871,705 871,488
20% 20.0% 581,137 582,210
10% 10.0% 290,568 289,967
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
2 4 32 64 48.0 2 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: iDataPlex dx360 M4 2U Chassis
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: 1 x 750W, IBM P/N: 43X3313
Network Switch: DLink DGS-1024D
Network Switch Details: 24-PORT GIGABIT DESKTOP SWITCH
KVM Switch: KVM Switch
KVM Switch Details: IBM Global 2x16 Console Manager
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware per Node
Hardware Vendor: IBM Corporation
Model: IBM System x iDataPlex dx360 M4
Form Factor: 2U
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8-Core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1, 3, 8, 9 11 and 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 200 GB SATA SSD, IBM P/N: 43W7742
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: IBM Power Profile
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: TDE115J
Management Firmware Version: 1AOO25K
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-A24F9MDMPRQ 1,453,378
WIN-KDRK08S3VO1 1,445,985
ssj_ops@100% 2,899,364
ssj_ops@100% per Host 1,449,682
ssj_ops@100% per JVM 181,210
Graph of per-host results

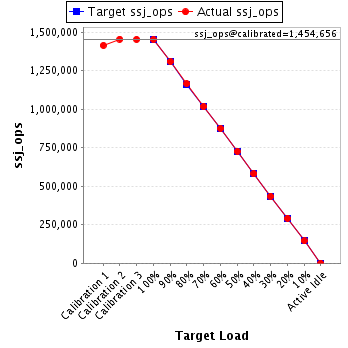

Host 'WIN-A24F9MDMPRQ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,414,601
Calibration 2     1,455,177
Calibration 3     1,454,135
ssj_ops@calibrated=1,454,656
100% 99.9% 1,454,656 1,453,378
90% 90.0% 1,309,190 1,309,752
80% 80.2% 1,163,725 1,166,687
70% 70.0% 1,018,259 1,018,885
60% 60.2% 872,794 876,067
50% 49.9% 727,328 726,532
40% 39.9% 581,862 580,521
30% 30.0% 436,397 435,927
20% 20.1% 290,931 291,904
10% 10.0% 145,466 145,319
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-KDRK08S3VO1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,413,526
Calibration 2     1,450,455
Calibration 3     1,451,603
ssj_ops@calibrated=1,451,029
100% 99.7% 1,451,029 1,445,985
90% 90.3% 1,305,926 1,309,679
80% 79.9% 1,160,823 1,159,215
70% 70.1% 1,015,720 1,017,230
60% 60.2% 870,617 873,902
50% 50.1% 725,514 727,242
40% 39.9% 580,412 579,007
30% 30.0% 435,309 435,561
20% 20.0% 290,206 290,306
10% 10.0% 145,103 144,649
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
