SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x iDataPlex dx360 M4 | SPECpower_ssj2008 = 5,392 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Multi Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Aug 23, 2012 |
| Hardware Availability: | Apr-2012 | Software Availability: | Dec-2012 | Publication: | Oct 31, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

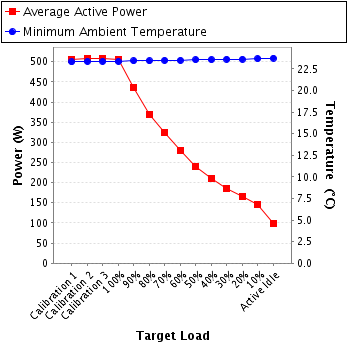

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 507 | 23.3 |
| Calibration 2 | 509 | 23.4 |
| Calibration 3 | 507 | 23.4 |
| 100% | 507 | 23.4 |
| 90% | 436 | 23.4 |
| 80% | 370 | 23.4 |
| 70% | 325 | 23.5 |
| 60% | 279 | 23.5 |
| 50% | 240 | 23.6 |
| 40% | 210 | 23.6 |
| 30% | 186 | 23.6 |
| 20% | 166 | 23.6 |
| 10% | 147 | 23.7 |
| Active Idle | 99.1 | 23.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91JB14535 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-032-03 |
| Date of Calibration: | 05-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main intake |

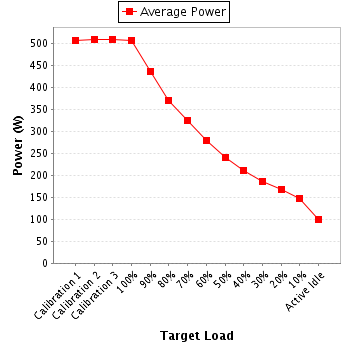

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 2.44 | 2.0 | 0.984 | 507 | 0.3% |
| Calibration 2 | 211 | 300.0 | 2.45 | 2.0 | 0.985 | 509 | 0.3% |
| Calibration 3 | 211 | 300.0 | 2.44 | 2.0 | 0.985 | 507 | 0.3% |
| 100% | 211 | 300.0 | 2.44 | 2.0 | 0.985 | 507 | 0.3% |
| 90% | 211 | 300.0 | 2.11 | 2.0 | 0.980 | 436 | 0.3% |
| 80% | 211 | 300.0 | 1.80 | 2.0 | 0.976 | 370 | 0.3% |
| 70% | 212 | 300.0 | 1.58 | 2.0 | 0.970 | 325 | 0.3% |
| 60% | 212 | 300.0 | 1.37 | 2.0 | 0.963 | 279 | 0.4% |
| 50% | 212 | 300.0 | 1.19 | 2.0 | 0.954 | 240 | 0.4% |
| 40% | 212 | 300.0 | 1.05 | 2.0 | 0.942 | 210 | 0.5% |
| 30% | 212 | 300.0 | 0.947 | 1.0 | 0.929 | 186 | 0.3% |
| 20% | 212 | 300.0 | 0.859 | 1.0 | 0.914 | 166 | 0.4% |
| 10% | 212 | 300.0 | 0.775 | 1.0 | 0.895 | 147 | 0.4% |
| Active Idle | 212 | 300.0 | 0.578 | 1.0 | 0.809 | 99.1 | 0.5% |
