Huawei Technologies Co., Ltd RH2288 V2 SPECpower_ssj2008 = 5,453 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 13, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 226 22.8
Calibration 2 239 22.9
Calibration 3 239 22.9
100% 239 22.9
90% 217 22.9
80% 182 22.9
70% 155 23.0
60% 134 23.0
50% 116 23.0
40% 105 23.1
30% 96.4 23.1
20% 86.4 23.1
10% 75.2 23.1
Active Idle 51.5 23.1

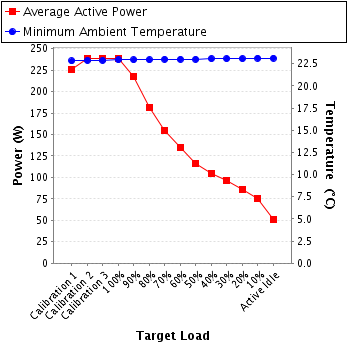

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB12006186-0010"
Date of Calibration: 30-Jul-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.06 2.0 0.974 226 0.4%
Calibration 2 221 300.0 1.11 2.0 0.976 239 0.4%
Calibration 3 221 300.0 1.11 2.0 0.976 239 0.4%
100% 221 300.0 1.10 2.0 0.976 239 0.4%
90% 222 300.0 1.01 1.0 0.970 217 0.3%
80% 223 300.0 0.851 1.0 0.963 182 0.3%
70% 224 300.0 0.716 1.0 0.967 155 0.3%
60% 224 300.0 0.627 1.0 0.960 134 0.4%
50% 224 300.0 0.546 1.0 0.952 116 0.4%
40% 224 300.0 0.496 1.0 0.946 105 0.5%
30% 225 300.0 0.457 1.0 0.939 96.4 0.5%
20% 225 300.0 0.414 0.5 0.927 86.4 0.4%
10% 225 300.0 0.366 0.5 0.913 75.2 0.4%
Active Idle 225 300.0 0.265 0.5 0.860 51.5 0.5%
Power details for pwr1
