Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,437,235
ssj_ops@100% per JVM = 179,654
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 12, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,401,015
Calibration 2     1,439,534
Calibration 3     1,441,952
ssj_ops@calibrated=1,440,743
100% 99.8% 1,440,743 1,437,235
90% 90.2% 1,296,669 1,299,110
80% 79.9% 1,152,594 1,151,791
70% 70.2% 1,008,520 1,011,097
60% 60.1% 864,446 865,505
50% 50.1% 720,372 722,342
40% 40.0% 576,297 576,932
30% 30.2% 432,223 434,669
20% 20.1% 288,149 289,174
10% 9.9% 144,074 143,284
Active Idle   0 0

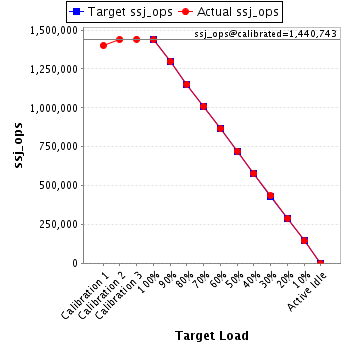

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2680
CPU Characteristics: 8-Core, 2.70 GHz, 20 MB L3 Cache (Intel Turbo Boost Technology up to 3.5 GHz)
CPU Frequency (MHz): 2700
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1 B1,C1, D1, E1,F1,populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V030
Management Firmware Version: 3.02
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-LPGQ3EF16AS.001 179,100
WIN-LPGQ3EF16AS.002 178,888
WIN-LPGQ3EF16AS.003 178,687
WIN-LPGQ3EF16AS.004 179,357
WIN-LPGQ3EF16AS.005 181,758
WIN-LPGQ3EF16AS.006 180,424
WIN-LPGQ3EF16AS.007 179,873
WIN-LPGQ3EF16AS.008 179,147
ssj_ops@100% 1,437,235
ssj_ops@100% per JVM 179,654

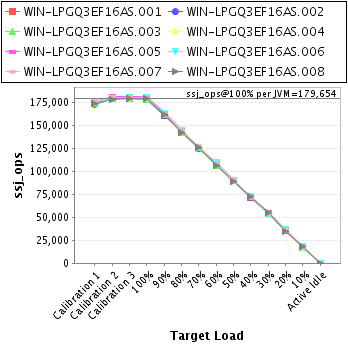

Graph of per-instance results
JVM 'WIN-LPGQ3EF16AS.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,277
Calibration 2     179,163
Calibration 3     179,868
ssj_ops@calibrated=179,516
100% 99.8% 179,516 179,100
90% 89.9% 161,564 161,369
80% 80.2% 143,613 143,974
70% 70.5% 125,661 126,528
60% 59.7% 107,709 107,218
50% 50.0% 89,758 89,829
40% 40.0% 71,806 71,778
30% 30.2% 53,855 54,251
20% 20.1% 35,903 36,135
10% 10.1% 17,952 18,206
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LPGQ3EF16AS.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,508
Calibration 2     179,273
Calibration 3     179,545
ssj_ops@calibrated=179,409
100% 99.7% 179,409 178,888
90% 89.6% 161,468 160,829
80% 79.9% 143,527 143,315
70% 69.5% 125,586 124,667
60% 60.6% 107,646 108,657
50% 50.3% 89,705 90,217
40% 39.7% 71,764 71,284
30% 30.2% 53,823 54,196
20% 20.0% 35,882 35,793
10% 10.0% 17,941 17,971
Active Idle   0 0

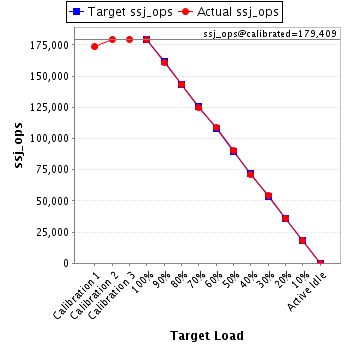

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LPGQ3EF16AS.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,516
Calibration 2     179,328
Calibration 3     179,436
ssj_ops@calibrated=179,382
100% 99.6% 179,382 178,687
90% 90.2% 161,444 161,768
80% 79.5% 143,506 142,545
70% 70.4% 125,568 126,348
60% 59.5% 107,629 106,739
50% 50.1% 89,691 89,857
40% 40.4% 71,753 72,421
30% 30.0% 53,815 53,859
20% 20.3% 35,876 36,373
10% 9.8% 17,938 17,589
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LPGQ3EF16AS.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,879
Calibration 2     180,501
Calibration 3     180,101
ssj_ops@calibrated=180,301
100% 99.5% 180,301 179,357
90% 90.3% 162,271 162,765
80% 79.9% 144,240 144,080
70% 70.4% 126,210 126,946
60% 60.6% 108,180 109,300
50% 50.2% 90,150 90,481
40% 40.2% 72,120 72,471
30% 30.1% 54,090 54,263
20% 20.0% 36,060 36,125
10% 9.7% 18,030 17,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LPGQ3EF16AS.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,524
Calibration 2     181,984
Calibration 3     182,085
ssj_ops@calibrated=182,034
100% 99.8% 182,034 181,758
90% 90.5% 163,831 164,792
80% 80.2% 145,628 145,911
70% 69.6% 127,424 126,653
60% 60.1% 109,221 109,453
50% 50.4% 91,017 91,807
40% 39.6% 72,814 71,996
30% 30.3% 54,610 55,196
20% 20.0% 36,407 36,335
10% 9.8% 18,203 17,751
Active Idle   0 0

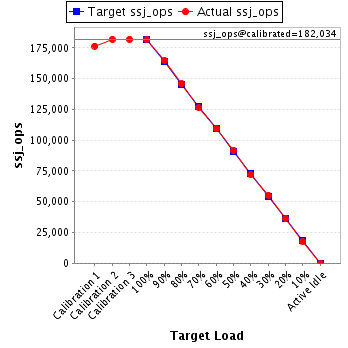

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LPGQ3EF16AS.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,736
Calibration 2     179,910
Calibration 3     180,855
ssj_ops@calibrated=180,383
100% 100.0% 180,383 180,424
90% 90.4% 162,344 163,136
80% 80.5% 144,306 145,249
70% 70.1% 126,268 126,397
60% 60.7% 108,230 109,464
50% 49.8% 90,191 89,824
40% 40.3% 72,153 72,728
30% 29.5% 54,115 53,220
20% 20.5% 36,077 36,941
10% 10.1% 18,038 18,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LPGQ3EF16AS.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,313
Calibration 2     180,622
Calibration 3     180,946
ssj_ops@calibrated=180,784
100% 99.5% 180,784 179,873
90% 90.0% 162,706 162,775
80% 80.1% 144,627 144,723
70% 70.4% 126,549 127,313
60% 59.9% 108,471 108,248
50% 50.2% 90,392 90,724
40% 39.8% 72,314 71,886
30% 30.3% 54,235 54,818
20% 20.1% 36,157 36,329
10% 10.1% 18,078 18,230
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LPGQ3EF16AS.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,263
Calibration 2     178,752
Calibration 3     179,116
ssj_ops@calibrated=178,934
100% 100.1% 178,934 179,147
90% 90.4% 161,041 161,676
80% 79.4% 143,147 141,995
70% 70.6% 125,254 126,245
60% 59.5% 107,361 106,426
50% 50.1% 89,467 89,602
40% 40.4% 71,574 72,368
30% 30.7% 53,680 54,867
20% 19.6% 35,787 35,144
10% 10.0% 17,893 17,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
