Huawei Technologies Co., Ltd RH2285 V2 ssj_ops@100% = 1,489,644
ssj_ops@100% per JVM = 186,206
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 10, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,325,184
Calibration 2     1,491,665
Calibration 3     1,492,217
ssj_ops@calibrated=1,491,941
100% 99.8% 1,491,941 1,489,644
90% 90.0% 1,342,747 1,343,079
80% 79.7% 1,193,553 1,189,720
70% 70.1% 1,044,359 1,046,249
60% 60.1% 895,165 896,675
50% 49.9% 745,971 744,533
40% 40.2% 596,776 599,043
30% 30.1% 447,582 448,735
20% 20.1% 298,388 299,449
10% 9.9% 149,194 148,106
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2285 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8-Core, 2.30 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1 B1,C1, D1, E1,F1,populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V036
Management Firmware Version: 3.60
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-64QGT1J5C10.001 186,938
WIN-64QGT1J5C10.002 184,576
WIN-64QGT1J5C10.003 186,735
WIN-64QGT1J5C10.004 186,855
WIN-64QGT1J5C10.005 188,322
WIN-64QGT1J5C10.006 186,117
WIN-64QGT1J5C10.007 183,897
WIN-64QGT1J5C10.008 186,204
ssj_ops@100% 1,489,644
ssj_ops@100% per JVM 186,206

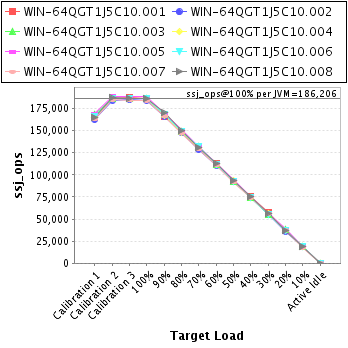

Graph of per-instance results

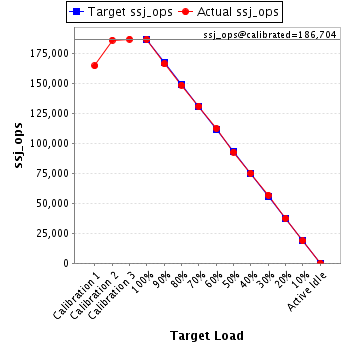

JVM 'WIN-64QGT1J5C10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,836
Calibration 2     186,285
Calibration 3     187,124
ssj_ops@calibrated=186,704
100% 100.1% 186,704 186,938
90% 89.2% 168,034 166,536
80% 79.7% 149,363 148,740
70% 70.2% 130,693 131,101
60% 60.3% 112,023 112,667
50% 49.8% 93,352 92,906
40% 40.2% 74,682 75,127
30% 30.5% 56,011 56,892
20% 20.1% 37,341 37,534
10% 10.0% 18,670 18,723
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-64QGT1J5C10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,616
Calibration 2     184,571
Calibration 3     184,877
ssj_ops@calibrated=184,724
100% 99.9% 184,724 184,576
90% 90.1% 166,252 166,524
80% 79.9% 147,779 147,504
70% 69.8% 129,307 128,960
60% 60.2% 110,834 111,167
50% 50.1% 92,362 92,615
40% 40.5% 73,890 74,832
30% 29.8% 55,417 55,071
20% 19.6% 36,945 36,229
10% 10.0% 18,472 18,510
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-64QGT1J5C10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,836
Calibration 2     186,950
Calibration 3     186,523
ssj_ops@calibrated=186,737
100% 100.0% 186,737 186,735
90% 90.0% 168,063 168,132
80% 79.6% 149,389 148,713
70% 70.5% 130,716 131,683
60% 60.1% 112,042 112,295
50% 49.4% 93,368 92,324
40% 40.1% 74,695 74,800
30% 29.8% 56,021 55,672
20% 20.2% 37,347 37,796
10% 9.9% 18,674 18,476
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-64QGT1J5C10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,179
Calibration 2     186,924
Calibration 3     186,936
ssj_ops@calibrated=186,930
100% 100.0% 186,930 186,855
90% 89.4% 168,237 167,079
80% 79.0% 149,544 147,700
70% 69.9% 130,851 130,718
60% 59.8% 112,158 111,778
50% 50.2% 93,465 93,767
40% 39.7% 74,772 74,209
30% 30.0% 56,079 56,166
20% 20.0% 37,386 37,319
10% 10.0% 18,693 18,623
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

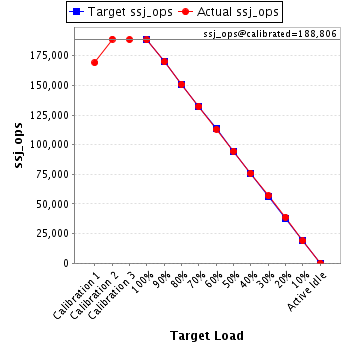

JVM 'WIN-64QGT1J5C10.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,135
Calibration 2     189,014
Calibration 3     188,599
ssj_ops@calibrated=188,806
100% 99.7% 188,806 188,322
90% 90.0% 169,926 169,991
80% 80.0% 151,045 151,020
70% 70.0% 132,165 132,257
60% 59.9% 113,284 113,006
50% 50.1% 94,403 94,549
40% 40.2% 75,523 75,963
30% 30.1% 56,642 56,798
20% 20.6% 37,761 38,929
10% 10.0% 18,881 18,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-64QGT1J5C10.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,184
Calibration 2     186,094
Calibration 3     186,701
ssj_ops@calibrated=186,397
100% 99.8% 186,397 186,117
90% 90.2% 167,758 168,160
80% 79.9% 149,118 148,997
70% 70.6% 130,478 131,572
60% 60.1% 111,838 112,034
50% 49.9% 93,199 93,004
40% 40.0% 74,559 74,608
30% 29.8% 55,919 55,472
20% 20.0% 37,279 37,206
10% 10.0% 18,640 18,579
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

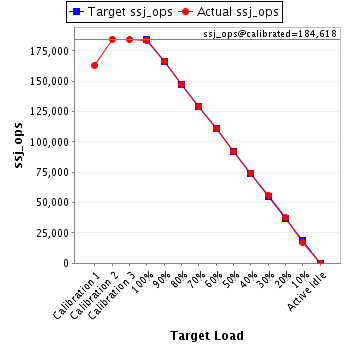

JVM 'WIN-64QGT1J5C10.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,173
Calibration 2     184,741
Calibration 3     184,494
ssj_ops@calibrated=184,618
100% 99.6% 184,618 183,897
90% 90.2% 166,156 166,586
80% 79.8% 147,694 147,357
70% 69.9% 129,232 129,131
60% 60.1% 110,771 110,925
50% 49.8% 92,309 91,862
40% 40.3% 73,847 74,321
30% 30.4% 55,385 56,046
20% 20.2% 36,924 37,333
10% 9.4% 18,462 17,406
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-64QGT1J5C10.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,225
Calibration 2     187,086
Calibration 3     186,964
ssj_ops@calibrated=187,025
100% 99.6% 187,025 186,204
90% 90.9% 168,322 170,071
80% 80.0% 149,620 149,689
70% 70.0% 130,917 130,826
60% 60.3% 112,215 112,802
50% 50.0% 93,512 93,507
40% 40.2% 74,810 75,183
30% 30.3% 56,107 56,618
20% 19.8% 37,405 37,104
10% 10.1% 18,702 18,951
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
