Huawei Technologies Co., Ltd RH2285 V2 SPECpower_ssj2008 = 5,717 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 10, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 222 23.0
Calibration 2 241 23.0
Calibration 3 241 23.0
100% 241 23.0
90% 218 22.9
80% 178 22.9
70% 154 22.8
60% 133 22.8
50% 114 22.8
40% 101 22.8
30% 92.0 22.8
20% 81.9 22.7
10% 72.5 22.6
Active Idle 51.0 22.6

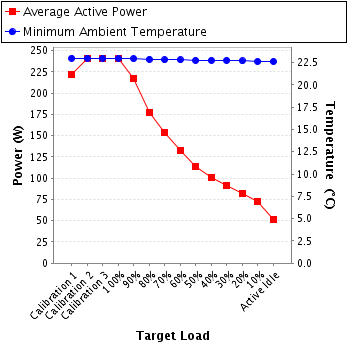

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB12006186-0010"
Date of Calibration: 30-Jul-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 1.03 2.0 0.975 222 0.4%
Calibration 2 225 300.0 1.10 2.0 0.977 241 0.4%
Calibration 3 224 300.0 1.10 2.0 0.977 241 0.4%
100% 224 300.0 1.10 2.0 0.977 241 0.4%
90% 224 300.0 1.01 2.0 0.970 218 0.4%
80% 223 300.0 0.829 1.0 0.963 178 0.3%
70% 223 300.0 0.712 1.0 0.967 154 0.3%
60% 223 300.0 0.621 1.0 0.960 133 0.4%
50% 223 300.0 0.538 1.0 0.951 114 0.4%
40% 222 300.0 0.482 1.0 0.945 101 0.5%
30% 222 300.0 0.442 1.0 0.937 92.0 0.5%
20% 222 300.0 0.398 1.0 0.926 81.9 0.5%
10% 222 300.0 0.357 0.5 0.914 72.5 0.4%
Active Idle 222 300.0 0.264 0.5 0.868 51.0 0.5%
Power details for pwr1
