SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Cisco Systems, Inc. UCS C220 M3 | SPECpower_ssj2008 = 4,904 overall ssj_ops/watt | ||||
| Test Sponsor: | Cisco Systems, Inc. | SPEC License #: | 3184 | Test Method: | Single Node |
| Tested By: | Principled Technologies, Inc. | Test Location: | Durham, NC, USA | Test Date: | Oct 3, 2012 |
| Hardware Availability: | Mar-2012 | Software Availability: | Aug-2012 | Publication: | Oct 17, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

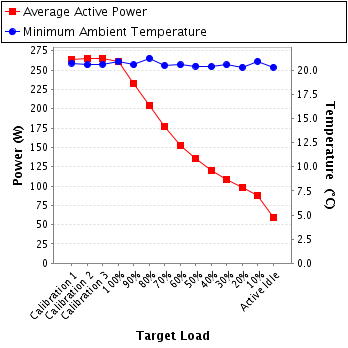

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 264 | 20.8 |
| Calibration 2 | 265 | 20.6 |
| Calibration 3 | 265 | 20.6 |
| 100% | 261 | 20.9 |
| 90% | 233 | 20.6 |
| 80% | 204 | 21.2 |
| 70% | 177 | 20.5 |
| 60% | 153 | 20.6 |
| 50% | 136 | 20.4 |
| 40% | 120 | 20.4 |
| 30% | 109 | 20.6 |
| 20% | 98.5 | 20.3 |
| 10% | 87.6 | 20.9 |
| Active Idle | 59.5 | 20.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91GB51135 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Tektronix |
| Calibration Label: | 07-1684 |
| Date of Calibration: | 06-Dec-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | Connected to SUT Power Supply Unit (PSU) 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.27 | 2.0 | 0.992 | 264 | 0.4% |
| Calibration 2 | 209 | 300.0 | 1.28 | 2.0 | 0.992 | 265 | 0.4% |
| Calibration 3 | 209 | 300.0 | 1.28 | 2.0 | 0.992 | 265 | 0.4% |
| 100% | 209 | 300.0 | 1.26 | 2.0 | 0.990 | 261 | 0.4% |
| 90% | 209 | 300.0 | 1.14 | 1.0 | 0.981 | 233 | 0.4% |
| 80% | 209 | 300.0 | 1.01 | 1.0 | 0.968 | 204 | 0.4% |
| 70% | 210 | 300.0 | 0.881 | 1.0 | 0.961 | 177 | 0.4% |
| 60% | 209 | 300.0 | 0.757 | 1.0 | 0.965 | 153 | 0.4% |
| 50% | 210 | 300.0 | 0.662 | 1.0 | 0.977 | 136 | 0.4% |
| 40% | 210 | 300.0 | 0.583 | 1.0 | 0.982 | 120 | 0.4% |
| 30% | 210 | 300.0 | 0.531 | 0.5 | 0.978 | 109 | 0.3% |
| 20% | 209 | 300.0 | 0.483 | 0.5 | 0.973 | 98.5 | 0.3% |
| 10% | 209 | 300.0 | 0.433 | 0.5 | 0.966 | 87.6 | 0.4% |
| Active Idle | 210 | 300.0 | 0.307 | 0.5 | 0.926 | 59.5 | 0.5% |
