IBM Corporation IBM Flex System x440 Compute Node ssj_ops@100% = 2,709,268
ssj_ops@100% per JVM = 169,329
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: Sep 23, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,625,131
Calibration 2     2,713,048
Calibration 3     2,709,849
ssj_ops@calibrated=2,711,448
100% 99.9% 2,711,448 2,709,268
90% 90.5% 2,440,303 2,453,170
80% 79.9% 2,169,159 2,167,084
70% 69.9% 1,898,014 1,895,893
60% 60.2% 1,626,869 1,631,576
50% 49.9% 1,355,724 1,353,078
40% 39.9% 1,084,579 1,082,753
30% 30.1% 813,434 817,126
20% 19.9% 542,290 540,877
10% 10.0% 271,145 270,060
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: x440
# of Identical Nodes: 7
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM Flex System x440 Compute Node
Form Factor: Blade
CPU Name: Intel Xeon E5-4640 (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 8-core, 2.4GHz, 20MB L3 Cache (Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1, 4, 9, 13, 16, 21, 25, 28, 33, 37, 40, and 45 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 200GB SATA SSD (Feature Code: A2FN)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Dual-Port Emulex BE3 10Gb (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: CNE115M
Management Firmware Version: 1AOO31l
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
Acoustic Attenuation set to 1
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
EP4S-07.001 168,936
EP4S-07.002 166,114
EP4S-07.003 166,789
EP4S-07.004 167,443
EP4S-07.005 170,527
EP4S-07.006 172,619
EP4S-07.007 167,482
EP4S-07.008 168,464
EP4S-07.009 171,329
EP4S-07.010 168,790
EP4S-07.011 170,123
EP4S-07.012 170,477
EP4S-07.013 169,103
EP4S-07.014 170,438
EP4S-07.015 169,269
EP4S-07.016 171,365
ssj_ops@100% 2,709,268
ssj_ops@100% per JVM 169,329

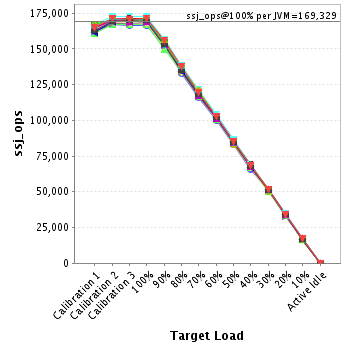

Graph of per-instance results
JVM 'EP4S-07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,027
Calibration 2     169,517
Calibration 3     169,126
ssj_ops@calibrated=169,321
100% 99.8% 169,321 168,936
90% 90.6% 152,389 153,370
80% 79.8% 135,457 135,045
70% 69.8% 118,525 118,248
60% 60.7% 101,593 102,783
50% 50.4% 84,661 85,292
40% 39.8% 67,729 67,313
30% 30.3% 50,796 51,329
20% 19.9% 33,864 33,708
10% 10.0% 16,932 16,986
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

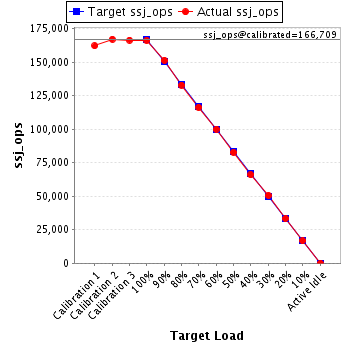

JVM 'EP4S-07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,015
Calibration 2     167,019
Calibration 3     166,398
ssj_ops@calibrated=166,709
100% 99.6% 166,709 166,114
90% 90.7% 150,038 151,281
80% 79.7% 133,367 132,841
70% 69.7% 116,696 116,185
60% 60.0% 100,025 100,014
50% 49.6% 83,354 82,762
40% 39.5% 66,683 65,886
30% 30.3% 50,013 50,552
20% 20.0% 33,342 33,353
10% 10.0% 16,671 16,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,938
Calibration 2     166,827
Calibration 3     167,124
ssj_ops@calibrated=166,975
100% 99.9% 166,975 166,789
90% 89.7% 150,278 149,851
80% 80.4% 133,580 134,281
70% 69.7% 116,883 116,399
60% 60.4% 100,185 100,788
50% 50.2% 83,488 83,787
40% 40.0% 66,790 66,821
30% 29.9% 50,093 49,917
20% 19.8% 33,395 33,085
10% 10.2% 16,698 17,019
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,963
Calibration 2     168,257
Calibration 3     168,004
ssj_ops@calibrated=168,131
100% 99.6% 168,131 167,443
90% 90.4% 151,318 151,971
80% 79.5% 134,505 133,591
70% 69.6% 117,692 117,040
60% 60.4% 100,878 101,498
50% 50.2% 84,065 84,319
40% 39.7% 67,252 66,699
30% 29.9% 50,439 50,293
20% 20.2% 33,626 33,895
10% 9.7% 16,813 16,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,731
Calibration 2     170,925
Calibration 3     170,951
ssj_ops@calibrated=170,938
100% 99.8% 170,938 170,527
90% 90.4% 153,844 154,607
80% 80.3% 136,751 137,283
70% 70.1% 119,657 119,870
60% 60.6% 102,563 103,559
50% 50.7% 85,469 86,659
40% 39.7% 68,375 67,888
30% 30.2% 51,281 51,553
20% 20.3% 34,188 34,761
10% 10.2% 17,094 17,403
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

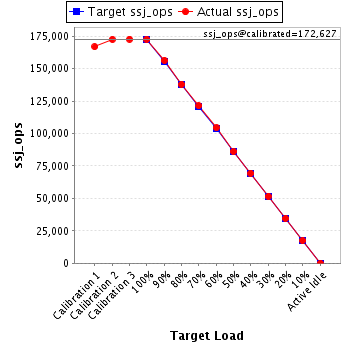

JVM 'EP4S-07.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,885
Calibration 2     172,534
Calibration 3     172,720
ssj_ops@calibrated=172,627
100% 100.0% 172,627 172,619
90% 90.6% 155,365 156,402
80% 79.9% 138,102 137,990
70% 70.3% 120,839 121,395
60% 60.5% 103,576 104,409
50% 50.0% 86,314 86,273
40% 40.2% 69,051 69,428
30% 29.9% 51,788 51,634
20% 20.0% 34,525 34,552
10% 10.2% 17,263 17,574
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,170
Calibration 2     168,144
Calibration 3     167,672
ssj_ops@calibrated=167,908
100% 99.7% 167,908 167,482
90% 91.0% 151,117 152,761
80% 80.1% 134,326 134,446
70% 69.7% 117,536 117,030
60% 59.9% 100,745 100,623
50% 50.4% 83,954 84,555
40% 39.7% 67,163 66,589
30% 30.5% 50,372 51,247
20% 19.9% 33,582 33,435
10% 10.0% 16,791 16,749
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     161,895
Calibration 2     167,793
Calibration 3     167,731
ssj_ops@calibrated=167,762
100% 100.4% 167,762 168,464
90% 90.8% 150,986 152,355
80% 80.0% 134,210 134,129
70% 69.6% 117,433 116,817
60% 60.7% 100,657 101,861
50% 49.8% 83,881 83,524
40% 40.3% 67,105 67,614
30% 30.5% 50,329 51,245
20% 19.6% 33,552 32,946
10% 10.0% 16,776 16,852
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,047
Calibration 2     170,764
Calibration 3     170,969
ssj_ops@calibrated=170,866
100% 100.3% 170,866 171,329
90% 90.7% 153,780 154,952
80% 79.8% 136,693 136,324
70% 70.4% 119,607 120,342
60% 59.6% 102,520 101,854
50% 49.7% 85,433 84,923
40% 40.2% 68,347 68,752
30% 30.2% 51,260 51,676
20% 19.9% 34,173 33,992
10% 9.9% 17,087 16,965
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     161,596
Calibration 2     169,093
Calibration 3     168,919
ssj_ops@calibrated=169,006
100% 99.9% 169,006 168,790
90% 91.1% 152,106 153,975
80% 79.6% 135,205 134,445
70% 70.4% 118,304 118,917
60% 60.2% 101,404 101,765
50% 50.2% 84,503 84,868
40% 39.4% 67,602 66,660
30% 30.4% 50,702 51,424
20% 20.0% 33,801 33,867
10% 10.0% 16,901 16,823
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,782
Calibration 2     170,627
Calibration 3     170,736
ssj_ops@calibrated=170,681
100% 99.7% 170,681 170,123
90% 90.5% 153,613 154,527
80% 79.7% 136,545 136,033
70% 69.4% 119,477 118,511
60% 59.3% 102,409 101,204
50% 49.5% 85,341 84,544
40% 40.1% 68,273 68,453
30% 30.0% 51,204 51,282
20% 19.8% 34,136 33,806
10% 9.8% 17,068 16,753
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,571
Calibration 2     170,823
Calibration 3     169,960
ssj_ops@calibrated=170,391
100% 100.1% 170,391 170,477
90% 90.0% 153,352 153,392
80% 80.2% 136,313 136,598
70% 70.9% 119,274 120,849
60% 60.1% 102,235 102,343
50% 48.9% 85,196 83,242
40% 39.8% 68,157 67,820
30% 29.5% 51,117 50,340
20% 20.0% 34,078 34,019
10% 9.9% 17,039 16,881
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,478
Calibration 2     170,091
Calibration 3     168,941
ssj_ops@calibrated=169,516
100% 99.8% 169,516 169,103
90% 90.4% 152,565 153,239
80% 80.0% 135,613 135,551
70% 69.3% 118,661 117,393
60% 59.9% 101,710 101,569
50% 49.7% 84,758 84,306
40% 40.1% 67,807 67,994
30% 30.5% 50,855 51,709
20% 20.0% 33,903 33,900
10% 10.1% 16,952 17,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,565
Calibration 2     170,566
Calibration 3     170,240
ssj_ops@calibrated=170,403
100% 100.0% 170,403 170,438
90% 89.2% 153,363 152,027
80% 79.9% 136,323 136,138
70% 70.1% 119,282 119,469
60% 60.1% 102,242 102,465
50% 49.6% 85,202 84,476
40% 40.4% 68,161 68,856
30% 29.7% 51,121 50,634
20% 20.0% 34,081 34,021
10% 9.8% 17,040 16,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,705
Calibration 2     168,802
Calibration 3     169,617
ssj_ops@calibrated=169,209
100% 100.0% 169,209 169,269
90% 90.2% 152,288 152,665
80% 79.7% 135,367 134,804
70% 69.6% 118,446 117,801
60% 60.2% 101,525 101,894
50% 49.8% 84,605 84,250
40% 40.0% 67,684 67,648
30% 29.9% 50,763 50,616
20% 20.0% 33,842 33,772
10% 9.6% 16,921 16,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-07.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,762
Calibration 2     171,266
Calibration 3     170,740
ssj_ops@calibrated=171,003
100% 100.2% 171,003 171,365
90% 91.1% 153,903 155,795
80% 80.5% 136,802 137,584
70% 70.0% 119,702 119,626
60% 60.2% 102,602 102,947
50% 49.9% 85,501 85,298
40% 40.0% 68,401 68,332
30% 30.2% 51,301 51,675
20% 19.7% 34,201 33,765
10% 9.9% 17,100 16,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
