IBM Corporation IBM Flex System x440 Compute Node ssj_ops@100% = 2,707,004
ssj_ops@100% per JVM = 169,188
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: Sep 23, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,630,327
Calibration 2     2,713,161
Calibration 3     2,710,559
ssj_ops@calibrated=2,711,860
100% 99.8% 2,711,860 2,707,004
90% 89.9% 2,440,674 2,437,971
80% 80.0% 2,169,488 2,168,297
70% 70.1% 1,898,302 1,900,045
60% 59.9% 1,627,116 1,623,552
50% 50.1% 1,355,930 1,357,635
40% 39.9% 1,084,744 1,081,602
30% 30.1% 813,558 815,127
20% 19.9% 542,372 540,216
10% 10.0% 271,186 271,072
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: x440
# of Identical Nodes: 7
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM Flex System x440 Compute Node
Form Factor: Blade
CPU Name: Intel Xeon E5-4640 (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 8-core, 2.4GHz, 20MB L3 Cache (Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1, 4, 9, 13, 16, 21, 25, 28, 33, 37, 40, and 45 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 200GB SATA SSD (Feature Code: A2FN)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Dual-Port Emulex BE3 10Gb (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: CNE115M
Management Firmware Version: 1AOO31l
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
Acoustic Attenuation set to 1
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
EP4S-01.001 169,147
EP4S-01.002 169,645
EP4S-01.003 169,646
EP4S-01.004 169,454
EP4S-01.005 171,203
EP4S-01.006 168,886
EP4S-01.007 168,240
EP4S-01.008 169,709
EP4S-01.009 169,166
EP4S-01.010 168,959
EP4S-01.011 165,994
EP4S-01.012 169,039
EP4S-01.013 171,007
EP4S-01.014 167,071
EP4S-01.015 169,654
EP4S-01.016 170,186
ssj_ops@100% 2,707,004
ssj_ops@100% per JVM 169,188
Graph of per-instance results
JVM 'EP4S-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,502
Calibration 2     170,090
Calibration 3     170,422
ssj_ops@calibrated=170,256
100% 99.3% 170,256 169,147
90% 89.7% 153,230 152,737
80% 80.1% 136,205 136,453
70% 69.7% 119,179 118,584
60% 59.4% 102,153 101,181
50% 49.4% 85,128 84,184
40% 39.8% 68,102 67,815
30% 30.6% 51,077 52,154
20% 19.9% 34,051 33,948
10% 9.9% 17,026 16,830
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,644
Calibration 2     169,379
Calibration 3     169,496
ssj_ops@calibrated=169,438
100% 100.1% 169,438 169,645
90% 89.3% 152,494 151,239
80% 79.5% 135,550 134,760
70% 70.3% 118,606 119,091
60% 60.0% 101,663 101,713
50% 49.8% 84,719 84,449
40% 39.9% 67,775 67,618
30% 30.2% 50,831 51,090
20% 19.9% 33,888 33,676
10% 9.9% 16,944 16,807
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,781
Calibration 2     169,803
Calibration 3     170,020
ssj_ops@calibrated=169,912
100% 99.8% 169,912 169,646
90% 89.4% 152,920 151,981
80% 80.1% 135,929 136,160
70% 70.0% 118,938 118,913
60% 59.6% 101,947 101,262
50% 50.0% 84,956 84,872
40% 39.8% 67,965 67,614
30% 30.2% 50,973 51,303
20% 20.0% 33,982 33,990
10% 9.9% 16,991 16,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,228
Calibration 2     169,237
Calibration 3     169,819
ssj_ops@calibrated=169,528
100% 100.0% 169,528 169,454
90% 90.0% 152,575 152,552
80% 79.9% 135,622 135,413
70% 69.8% 118,670 118,372
60% 60.2% 101,717 102,008
50% 49.7% 84,764 84,222
40% 39.8% 67,811 67,550
30% 30.2% 50,858 51,124
20% 19.9% 33,906 33,819
10% 9.8% 16,953 16,641
Active Idle   0 0

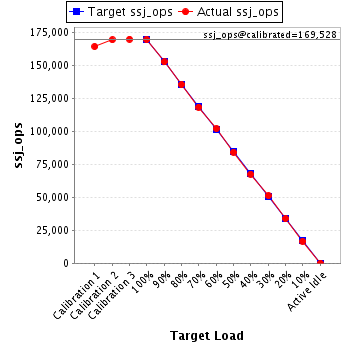

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,244
Calibration 2     171,619
Calibration 3     170,897
ssj_ops@calibrated=171,258
100% 100.0% 171,258 171,203
90% 89.8% 154,132 153,835
80% 79.5% 137,006 136,095
70% 70.5% 119,881 120,693
60% 59.9% 102,755 102,599
50% 50.3% 85,629 86,149
40% 39.8% 68,503 68,230
30% 30.0% 51,377 51,407
20% 19.9% 34,252 34,158
10% 10.1% 17,126 17,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,636
Calibration 2     169,919
Calibration 3     169,246
ssj_ops@calibrated=169,583
100% 99.6% 169,583 168,886
90% 90.0% 152,624 152,637
80% 79.9% 135,666 135,573
70% 70.3% 118,708 119,206
60% 59.1% 101,750 100,215
50% 50.0% 84,791 84,867
40% 40.2% 67,833 68,092
30% 30.4% 50,875 51,525
20% 19.8% 33,917 33,648
10% 10.0% 16,958 16,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,557
Calibration 2     168,466
Calibration 3     167,606
ssj_ops@calibrated=168,036
100% 100.1% 168,036 168,240
90% 90.6% 151,232 152,252
80% 79.0% 134,429 132,720
70% 69.7% 117,625 117,050
60% 60.0% 100,822 100,895
50% 50.4% 84,018 84,657
40% 40.1% 67,214 67,447
30% 29.8% 50,411 50,064
20% 20.0% 33,607 33,594
10% 10.2% 16,804 17,105
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,773
Calibration 2     168,792
Calibration 3     168,974
ssj_ops@calibrated=168,883
100% 100.5% 168,883 169,709
90% 89.5% 151,995 151,141
80% 80.8% 135,107 136,426
70% 69.6% 118,218 117,574
60% 59.9% 101,330 101,173
50% 49.9% 84,442 84,239
40% 40.2% 67,553 67,937
30% 29.5% 50,665 49,827
20% 19.8% 33,777 33,444
10% 10.0% 16,888 16,847
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,444
Calibration 2     170,170
Calibration 3     169,261
ssj_ops@calibrated=169,715
100% 99.7% 169,715 169,166
90% 90.1% 152,744 152,850
80% 79.7% 135,772 135,180
70% 70.8% 118,801 120,094
60% 60.1% 101,829 101,954
50% 50.5% 84,858 85,653
40% 39.0% 67,886 66,167
30% 29.6% 50,915 50,285
20% 20.0% 33,943 34,019
10% 10.1% 16,972 17,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,964
Calibration 2     169,487
Calibration 3     169,436
ssj_ops@calibrated=169,461
100% 99.7% 169,461 168,959
90% 89.9% 152,515 152,289
80% 79.4% 135,569 134,550
70% 70.6% 118,623 119,682
60% 59.6% 101,677 100,940
50% 50.8% 84,731 86,104
40% 39.8% 67,784 67,460
30% 29.9% 50,838 50,682
20% 19.9% 33,892 33,646
10% 9.7% 16,946 16,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,794
Calibration 2     167,169
Calibration 3     166,496
ssj_ops@calibrated=166,832
100% 99.5% 166,832 165,994
90% 89.4% 150,149 149,168
80% 80.3% 133,466 133,980
70% 70.4% 116,783 117,505
60% 59.9% 100,099 99,990
50% 50.3% 83,416 83,887
40% 40.4% 66,733 67,411
30% 30.1% 50,050 50,241
20% 20.0% 33,366 33,326
10% 10.2% 16,683 16,945
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,044
Calibration 2     169,110
Calibration 3     169,274
ssj_ops@calibrated=169,192
100% 99.9% 169,192 169,039
90% 90.2% 152,273 152,589
80% 80.3% 135,354 135,860
70% 70.1% 118,434 118,635
60% 59.7% 101,515 100,966
50% 50.3% 84,596 85,130
40% 40.2% 67,677 67,931
30% 30.0% 50,758 50,676
20% 20.1% 33,838 34,052
10% 10.1% 16,919 17,091
Active Idle   0 0

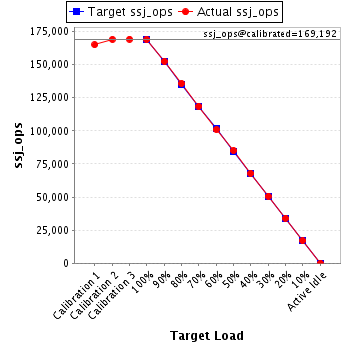

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,082
Calibration 2     171,266
Calibration 3     171,422
ssj_ops@calibrated=171,344
100% 99.8% 171,344 171,007
90% 89.9% 154,210 154,094
80% 79.9% 137,075 136,951
70% 69.7% 119,941 119,393
60% 60.2% 102,806 103,136
50% 49.7% 85,672 85,233
40% 39.7% 68,538 68,104
30% 30.0% 51,403 51,426
20% 19.7% 34,269 33,807
10% 10.0% 17,134 17,199
Active Idle   0 0

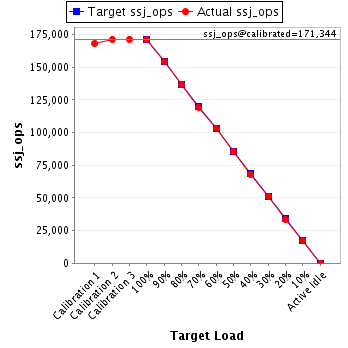

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,412
Calibration 2     167,382
Calibration 3     167,459
ssj_ops@calibrated=167,421
100% 99.8% 167,421 167,071
90% 90.2% 150,679 151,009
80% 80.5% 133,937 134,725
70% 70.1% 117,195 117,345
60% 60.2% 100,453 100,820
50% 50.3% 83,710 84,282
40% 39.4% 66,968 66,027
30% 30.0% 50,226 50,238
20% 19.6% 33,484 32,882
10% 9.9% 16,742 16,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,542
Calibration 2     169,669
Calibration 3     169,988
ssj_ops@calibrated=169,828
100% 99.9% 169,828 169,654
90% 89.6% 152,845 152,208
80% 80.1% 135,863 136,087
70% 69.6% 118,880 118,160
60% 60.5% 101,897 102,708
50% 49.5% 84,914 84,065
40% 40.0% 67,931 67,848
30% 30.1% 50,948 51,061
20% 19.8% 33,966 33,627
10% 10.0% 16,983 16,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-01.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,679
Calibration 2     171,604
Calibration 3     170,743
ssj_ops@calibrated=171,173
100% 99.4% 171,173 170,186
90% 90.8% 154,056 155,388
80% 80.2% 136,939 137,366
70% 70.0% 119,821 119,749
60% 59.6% 102,704 101,991
50% 50.0% 85,587 85,641
40% 39.9% 68,469 68,352
30% 30.4% 51,352 52,024
20% 20.2% 34,235 34,580
10% 10.2% 17,117 17,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
