IBM Corporation IBM Flex System x440 Compute Node SPECpower_ssj2008 = 4,847 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: Sep 23, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,330 20.2
Calibration 2 3,329 20.2
Calibration 3 3,339 20.2
100% 3,331 20.2
90% 2,970 20.2
80% 2,635 20.1
70% 2,305 20.1
60% 2,038 20.1
50% 1,806 20.1
40% 1,622 20.2
30% 1,471 20.1
20% 1,333 20.2
10% 1,197 20.2
Active Idle 812 20.2

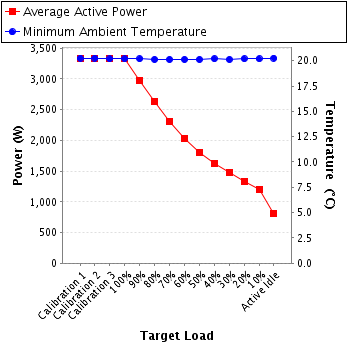

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91GB51133
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO Electronics
Calibration Label: 34436
Date of Calibration: 24-Jan-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Meter 1 Attached to power supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91GB37404
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO Electronics
Calibration Label: 34435
Date of Calibration: 24-Jan-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Meter 2 Attached to power supply 2
Power Analyzer pwr3
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91GB51131
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO Electronics
Calibration Label: 34441
Date of Calibration: 13-Feb-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Meter 3 Attached to power supply 3
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 300.0 5.45 10.0 0.994 1,096 0.4%
Calibration 2 202 300.0 5.45 10.0 0.994 1,097 0.4%
Calibration 3 202 300.0 5.47 10.0 0.994 1,101 0.4%
100% 202 300.0 5.46 10.0 0.994 1,098 0.4%
90% 203 300.0 4.86 10.0 0.993 977 0.5%
80% 203 300.0 4.30 10.0 0.992 864 0.5%
70% 203 300.0 3.75 5.0 0.990 754 0.4%
60% 203 300.0 3.31 5.0 0.989 665 0.4%
50% 203 300.0 2.99 5.0 0.987 601 0.4%
40% 204 300.0 2.68 5.0 0.985 537 0.5%
30% 204 300.0 2.48 5.0 0.982 496 0.5%
20% 204 300.0 2.31 5.0 0.979 461 0.5%
10% 204 300.0 2.10 5.0 0.975 417 0.6%
Active Idle 204 300.0 1.48 5.0 0.949 286 0.7%

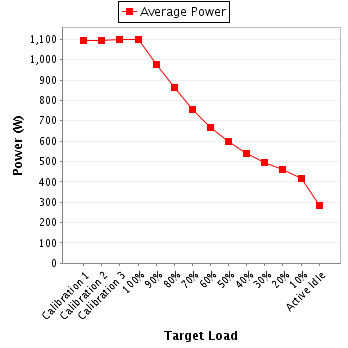

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 300.0 5.72 10.0 0.995 1,150 0.4%
Calibration 2 202 300.0 5.72 10.0 0.995 1,149 0.4%
Calibration 3 202 300.0 5.74 10.0 0.995 1,154 0.4%
100% 202 300.0 5.73 10.0 0.995 1,151 0.4%
90% 202 300.0 5.11 10.0 0.994 1,027 0.5%
80% 203 300.0 4.54 10.0 0.993 912 0.5%
70% 203 300.0 3.98 5.0 0.991 801 0.4%
60% 203 300.0 3.52 5.0 0.990 707 0.4%
50% 203 300.0 3.15 5.0 0.988 634 0.4%
40% 204 300.0 2.81 5.0 0.986 563 0.5%
30% 204 300.0 2.53 5.0 0.983 507 0.5%
20% 204 300.0 2.25 5.0 0.977 448 0.5%
10% 204 300.0 1.99 5.0 0.971 394 0.6%
Active Idle 205 300.0 1.37 5.0 0.939 263 0.8%

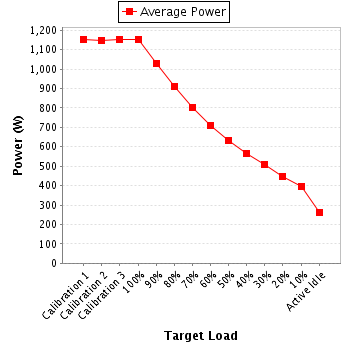

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 201 300.0 5.42 10.0 0.994 1,085 0.4%
Calibration 2 201 300.0 5.41 10.0 0.994 1,083 0.4%
Calibration 3 201 300.0 5.41 10.0 0.994 1,084 0.4%
100% 201 300.0 5.40 10.0 0.994 1,082 0.4%
90% 202 300.0 4.82 10.0 0.993 965 0.5%
80% 202 300.0 4.29 10.0 0.992 859 0.5%
70% 202 300.0 3.74 5.0 0.991 750 0.4%
60% 202 300.0 3.33 5.0 0.989 666 0.4%
50% 203 300.0 2.86 5.0 0.987 571 0.4%
40% 203 300.0 2.61 5.0 0.984 522 0.5%
30% 203 300.0 2.35 5.0 0.980 468 0.5%
20% 203 300.0 2.14 5.0 0.976 424 0.5%
10% 203 300.0 1.96 5.0 0.972 386 0.6%
Active Idle 204 300.0 1.37 5.0 0.942 264 0.8%

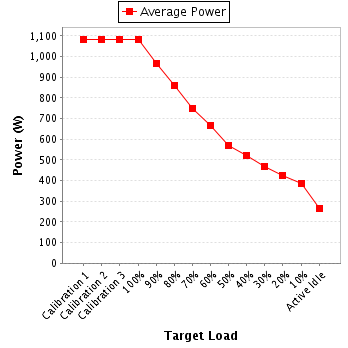

Power details for pwr3
