SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX200 S7 (Intel Xeon E5-2660) | SPECpower_ssj2008 = 5,058 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Sep 12, 2012 |
| Hardware Availability: | Sep-2012 | Software Availability: | Jun-2012 | Publication: | Oct 3, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

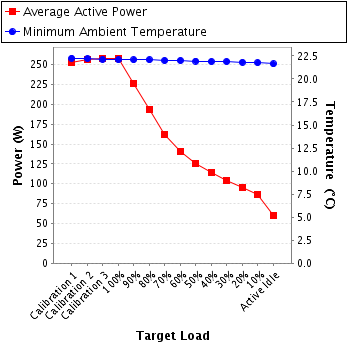

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 252 | 22.2 |
| Calibration 2 | 257 | 22.2 |
| Calibration 3 | 258 | 22.1 |
| 100% | 258 | 22.1 |
| 90% | 227 | 22.1 |
| 80% | 194 | 22.1 |
| 70% | 162 | 22.0 |
| 60% | 141 | 22.0 |
| 50% | 126 | 21.9 |
| 40% | 114 | 21.9 |
| 30% | 104 | 21.9 |
| 20% | 95.5 | 21.8 |
| 10% | 86.0 | 21.8 |
| Active Idle | 59.8 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Kalibrierdienst Stenger |
| Calibration Label: | 12084181 |
| Date of Calibration: | 06-Aug-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 229 | 250.0 | 1.11 | 2.5 | 0.990 | 252 | 0.1% |
| Calibration 2 | 229 | 250.0 | 1.13 | 2.5 | 0.990 | 257 | 0.1% |
| Calibration 3 | 229 | 250.0 | 1.14 | 2.5 | 0.990 | 258 | 0.1% |
| 100% | 228 | 250.0 | 1.14 | 2.5 | 0.990 | 258 | 0.1% |
| 90% | 228 | 250.0 | 1.01 | 2.5 | 0.986 | 227 | 0.1% |
| 80% | 228 | 250.0 | 0.871 | 2.5 | 0.983 | 194 | 0.2% |
| 70% | 228 | 250.0 | 0.727 | 2.5 | 0.983 | 162 | 0.2% |
| 60% | 228 | 250.0 | 0.633 | 2.5 | 0.981 | 141 | 0.2% |
| 50% | 231 | 250.0 | 0.556 | 2.5 | 0.977 | 126 | 0.3% |
| 40% | 231 | 250.0 | 0.507 | 2.5 | 0.975 | 114 | 0.3% |
| 30% | 231 | 250.0 | 0.465 | 2.5 | 0.972 | 104 | 0.3% |
| 20% | 231 | 250.0 | 0.427 | 2.5 | 0.968 | 95.5 | 0.3% |
| 10% | 232 | 250.0 | 0.386 | 0.6 | 0.961 | 86.0 | 0.1% |
| Active Idle | 231 | 250.0 | 0.277 | 0.6 | 0.933 | 59.8 | 0.1% |
