SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3550 M4 | SPECpower_ssj2008 = 4,662 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Aug 6, 2012 |
| Hardware Availability: | Sep-2012 | Software Availability: | Jun-2012 | Publication: | Aug 22, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

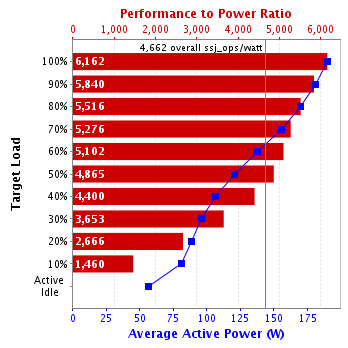

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.8% | 1,169,290 | 190 | 6,162 |
| 90% | 90.2% | 1,056,520 | 181 | 5,840 |
| 80% | 80.0% | 937,420 | 170 | 5,516 |
| 70% | 70.1% | 821,021 | 156 | 5,276 |
| 60% | 59.9% | 702,441 | 138 | 5,102 |
| 50% | 50.0% | 585,772 | 120 | 4,865 |
| 40% | 39.9% | 467,158 | 106 | 4,400 |
| 30% | 29.9% | 350,340 | 95.9 | 3,653 |
| 20% | 20.1% | 235,231 | 88.2 | 2,666 |
| 10% | 10.1% | 118,045 | 80.9 | 1,460 |
| Active Idle | 0 | 56.5 | 0 | |
| ∑ssj_ops / ∑power = | 4,662 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3550 M4 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E5-2660 |
| CPU Characteristics: | 8-Core, 2.20 GHz, 20MB L3 Cache |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E; slots 1, 4, 13, and 16 populated |
| Power Supply Quantity and Rating (W): | 1 x 550 |
| Power Supply Details: | IBM 550w PSU(43X3311) |
| Disk Drive: | 1 x 200GB SSD(x3550 M4 High Power Efficiency Kit, Feature Code: A2V6) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 4 x Integrated Intel I350 Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (See SUT Note) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition x64 |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [F, F0, F00, F000, F0000, F00000,F000000,F0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 111L |
| Management Firmware Version: | 25K |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | x3650 M3 |
| CPU Description: | Intel Xeon L5506 |
| Memory amount (GB): | 24 |
| Software | |
|---|---|
| Operating System (OS): | Windows 2008 R2 SP1 |
| JVM Vendor: | IBM |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 12-04-BAC-479-01 |
| Date of Calibration: | 12-Apr-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 190 | 22.9 |
| 90% | 181 | 23.4 |
| 80% | 170 | 24.3 |
| 70% | 156 | 25.1 |
| 60% | 138 | 24.5 |
| 50% | 120 | 23.7 |
| 40% | 106 | 22.9 |
| 30% | 95.9 | 22.9 |
| 20% | 88.2 | 23.3 |
| 10% | 80.9 | 24.2 |
| Active Idle | 56.5 | 24.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 22.9 | 63 |

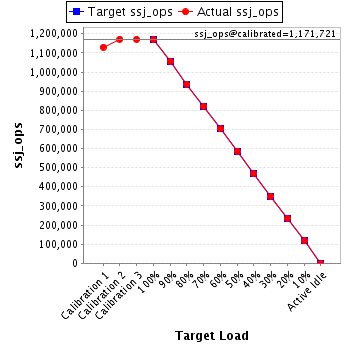

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,130,477 | ||
| Calibration 2 | 1,171,976 | ||
| Calibration 3 | 1,171,467 | ||
| ssj_ops@calibrated=1,171,721 | |||
| 100% | 99.8% | 1,171,721 | 1,169,290 |
| 90% | 90.2% | 1,054,549 | 1,056,520 |
| 80% | 80.0% | 937,377 | 937,420 |
| 70% | 70.1% | 820,205 | 821,021 |
| 60% | 59.9% | 703,033 | 702,441 |
| 50% | 50.0% | 585,861 | 585,772 |
| 40% | 39.9% | 468,689 | 467,158 |
| 30% | 29.9% | 351,516 | 350,340 |
| 20% | 20.1% | 234,344 | 235,231 |
| 10% | 10.1% | 117,172 | 118,045 |
| Active Idle | 0 | 0 | |
