SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/RS110-hHM | SPECpower_ssj2008 = 3,224 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jun 22, 2012 |
| Hardware Availability: | Jun-2012 | Software Availability: | Dec-2011 | Publication: | Aug 22, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

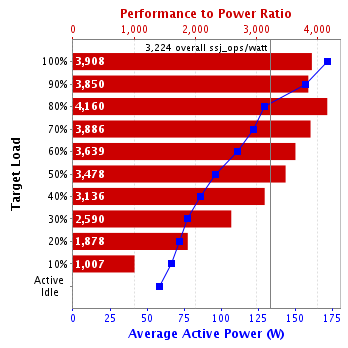

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.7% | 670,220 | 171 | 3,908 |
| 90% | 89.9% | 604,637 | 157 | 3,850 |
| 80% | 80.0% | 537,620 | 129 | 4,160 |
| 70% | 70.2% | 472,030 | 121 | 3,886 |
| 60% | 60.1% | 403,725 | 111 | 3,639 |
| 50% | 49.7% | 334,391 | 96.1 | 3,478 |
| 40% | 40.0% | 268,866 | 85.7 | 3,136 |
| 30% | 29.8% | 200,262 | 77.3 | 2,590 |
| 20% | 20.0% | 134,490 | 71.6 | 1,878 |
| 10% | 9.9% | 66,871 | 66.4 | 1,007 |
| Active Idle | 0 | 58.2 | 0 | |
| ∑ssj_ops / ∑power = | 3,224 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110-hHM |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E5-2470 |
| CPU Characteristics: | 8 core, 2.3GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz) |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 8 cores, 1 chip, 8 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 2 x 8192 MB |
| Memory Details: | 8GB 2Rx2 PC3L-10600R ECC CL9;slots CPU1_DIMM1,2 populated |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | DELTA DPS-450UB_A(Hitachi P/N:GQ-BP2360) |
| Disk Drive: | 1 x 80GB SSD SATA (Hitachi P/N:GQ-UH7080NDM) |
| Disk Controller: | LSI SAS 2208 (add-on card) |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom BCM5719 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 4/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30 |
| JVM Command-line Options: | -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts |
| JVM Affinity: | start / affinity [f,f0,f00,f000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 2048 |
| JVM Maximum Heap (MB): | 2048 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | M2.1.04 |
| Management Firmware Version: | 09.15 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110-hHM |
| CPU Description: | Intel Core i3-540 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Standard 32-bit SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_17-b04) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric Corporation |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2012-06-50931 |
| Date of Calibration: | 12-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 40 mm in front of SUT main airflow intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 171 | 26.4 |
| 90% | 157 | 26.4 |
| 80% | 129 | 26.4 |
| 70% | 121 | 26.4 |
| 60% | 111 | 26.5 |
| 50% | 96.1 | 26.5 |
| 40% | 85.7 | 26.5 |
| 30% | 77.3 | 26.5 |
| 20% | 71.6 | 26.5 |
| 10% | 66.4 | 26.5 |
| Active Idle | 58.2 | 26.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 200V / 50 Hz / 1 phase / 2 wires | 26.4 | 105 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 668,101 | ||
| Calibration 2 | 671,133 | ||
| Calibration 3 | 673,289 | ||
| ssj_ops@calibrated=672,211 | |||
| 100% | 99.7% | 672,211 | 670,220 |
| 90% | 89.9% | 604,990 | 604,637 |
| 80% | 80.0% | 537,769 | 537,620 |
| 70% | 70.2% | 470,548 | 472,030 |
| 60% | 60.1% | 403,327 | 403,725 |
| 50% | 49.7% | 336,106 | 334,391 |
| 40% | 40.0% | 268,885 | 268,866 |
| 30% | 29.8% | 201,663 | 200,262 |
| 20% | 20.0% | 134,442 | 134,490 |
| 10% | 9.9% | 67,221 | 66,871 |
| Active Idle | 0 | 0 | |
