Hitachi, Ltd. HA8000/RS210-hHM SPECpower_ssj2008 = 3,597 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 15, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 1,394,450 337 4,138
90% 90.0% 1,259,013 294 4,281
80% 80.1% 1,120,874 257 4,366
70% 70.0% 978,285 237 4,121
60% 59.9% 838,165 209 4,020
50% 49.8% 695,777 178 3,916
40% 39.9% 557,589 154 3,630
30% 30.0% 419,531 136 3,084
20% 19.9% 278,795 123 2,266
10% 10.1% 141,635 113 1,254
Active Idle 0 99.3 0
∑ssj_ops / ∑power = 3,597

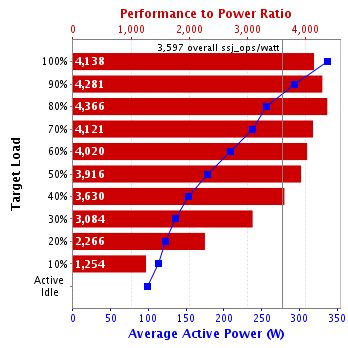

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS210-hHM
Form Factor: 1U
CPU Name: Intel Xeon E5-2670
CPU Characteristics: 8 core, 2.6GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC CL9; slots CPU1_DIMM1,2 and CPU2_DIMM1,2 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DELTA DPS-800QB_A (Hitachi P/N:GQ-BP2361)
Disk Drive: 1 x 80GB SSD SATA (Hitachi P/N:GQ-UH7080NDM)
Disk Controller: LSI SAS 2208 (add-on card)
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom BCM5718 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start / affinity [NODE0 : f,f0,f00,f000,NODE1 : f,f0,f00,f000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: MH.1.04
Management Firmware Version: 09.15
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/SS10 (GK1)
CPU Description: Intel Core i3-540
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2008 Standard 32-bit SP2
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_17-b04)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric Corporation
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Tchnology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2012-06-50931
Date of Calibration: 12-Jun-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 40 mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 337 26.1
90% 294 26.1
80% 257 26.1
70% 237 26.1
60% 209 26.1
50% 178 26.1
40% 154 26.1
30% 136 26.1
20% 123 26.1
10% 113 26.1
Active Idle 99.3 26.1
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 26.1 105
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,389,593
Calibration 2     1,397,729
Calibration 3     1,399,227
ssj_ops@calibrated=1,398,478
100% 99.7% 1,398,478 1,394,450
90% 90.0% 1,258,630 1,259,013
80% 80.1% 1,118,783 1,120,874
70% 70.0% 978,935 978,285
60% 59.9% 839,087 838,165
50% 49.8% 699,239 695,777
40% 39.9% 559,391 557,589
30% 30.0% 419,543 419,531
20% 19.9% 279,696 278,795
10% 10.1% 139,848 141,635
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
