SPECpower_ssj2008

Fujitsu PRIMERGY RX500 S7 (Intel Xeon E5-4640)			SPECpower_ssj2008 = 5,029 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Paderborn, NRW, Germany	Test Date:	Jul 13, 2012
Hardware Availability:	Sep-2012	Software Availability:	Dec-2011	Publication:	Aug 8, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY RX500 S7 (Intel Xeon E5-4640)
Form Factor:	4U
CPU Name:	Intel Xeon E5-4640
CPU Characteristics:	8-Core, 2.40GHz, 20MB L3 Cache
CPU Frequency (MHz):	2400
CPU(s) Enabled:	32 cores, 4 chips, 8 cores/chip
Hardware Threads:	64 (2 / core)
CPU(s) Orderable:	1, 2, 4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	48
# and size of DIMM:	12 x 4096 MB
Memory Details:	4 GB 2Rx8 PC3L-12800R-11, ECC; slots 1A, 1B, 1C, 1E, 1F, 1G, 1I, 1J, 1K, 1M, 1N, 1O populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	Fujitsu Technology Solutions S26113-E574-E10
Disk Drive:	1 x 100GB, SSD, 2.5" SATA, S26361-F5225-E100
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version:	Version 6.1.7601 Service Pack 1 Build 7601
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /node [0,1,2,3] /affinity [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances:	32
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	R01.07
Management Firmware Version:	6.55D
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Set "Intel Turbo Boost Technology = Disabled" in BIOS.
Set "Adjacent Sector Prefetch = Disable" in BIOS.
Set "Hardware Prefetch = Disable" in BIOS.
Set "DCU Streamer Prefetch = Disable" in BIOS.
Set "DDR Performance = Low-voltage optimized (effective memory speed = 1333 MHz)" in BIOS.
Set "USB Port Disable = Disable all external ports" in BIOS.
Set "QPI Link Speed = 6.4GT/s" in BIOS.
Set "P-State coordination = SW_ANY" in BIOS.
Set "Intel Virtualization Technology = Disable" in BIOS.

Set "Turn off hard disk after = 1 Minute" in OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.

Software
Operating System (OS):	Windows Server 2003 Enterprise Edition + SP1
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version:	1.2.5

Power Analyzer pwr1
Hardware Vendor:	ZES Zimmer Electronic Systems GmbH
Model:	LMG95
Serial Number:	11780806
Connectivity:	RS-232
Input Connection:	Default (20A)
Metrology Institute:	PTB (Physikalisch Technische Bundesanstalt)
Accredited by:	Kalibrierdienst Stenger
Calibration Label:	11080967
Date of Calibration:	03-Aug-2011
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.4.1-1271fb18-20110728
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version.

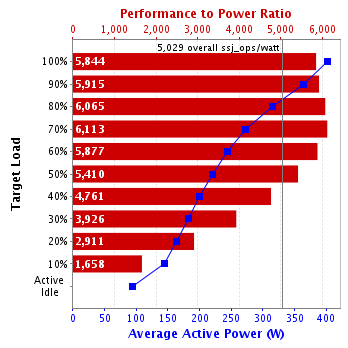

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	402	24.0
90%	364	24.1
80%	315	24.1
70%	273	24.1
60%	244	24.1
50%	220	24.1
40%	200	24.1
30%	183	24.1
20%	164	24.1
10%	144	24.1
Active Idle	94.6	24.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	24.0	117

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
