Huawei Technologies Co., Ltd BH640 V2 | ssj_ops@100% = 2,365,342 ssj_ops@100% per JVM = 147,834 |
||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Aug 5, 2012 |
Hardware Availability: | Jul-2012 | Software Availability: | Dec-2011 | Publication: | Aug 8, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

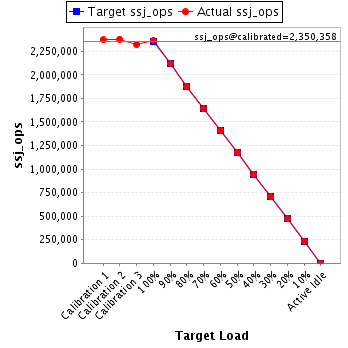

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 2,369,866 | ||
Calibration 2 | 2,378,395 | ||
Calibration 3 | 2,322,321 | ||
ssj_ops@calibrated=2,350,358 | |||
100% | 100.6% | 2,350,358 | 2,365,342 |
90% | 90.2% | 2,115,322 | 2,119,200 |
80% | 79.8% | 1,880,286 | 1,874,445 |
70% | 69.8% | 1,645,250 | 1,639,984 |
60% | 60.0% | 1,410,215 | 1,409,571 |
50% | 50.0% | 1,175,179 | 1,176,064 |
40% | 40.0% | 940,143 | 939,332 |
30% | 30.0% | 705,107 | 705,120 |
20% | 20.0% | 470,072 | 470,811 |
10% | 10.0% | 235,036 | 236,158 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 3 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Huawei Technologies Co., Ltd |
Model: | BH640 V2 |
Form Factor: | Blade |
CPU Name: | Intel Xeon E5-4640 |
CPU Characteristics: | 8-Core, 2.40 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 2.80 GHz) |
CPU Frequency (MHz): | 2400 |
CPU(s) Enabled: | 32 cores, 4 chips, 8 cores/chip |
Hardware Threads: | 64 (2 / core) |
CPU(s) Orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 8 x 4 GB |
Memory Details: | 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots 1A1 1B1, 2C1,2D1,3A1,3B1,4C1,4D1 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82580 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power Saver enabled in OS |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
OS Version: | R2 SP1 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30 |
JVM Command-line Options: | -server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000,0xF000000000000,0xF0000000000000,0xF00000000000000,0xF000000000000000] |
JVM Instances: | 16 |
JVM Initial Heap (MB): | 1600 |
JVM Maximum Heap (MB): | 1600 |
JVM Address Bits: | 64 |
Boot Firmware Version: | V028 |
Management Firmware Version: | 3.00 |
Workload Version: | SSJ 1.2.9 |
Director Location: | Controller |
Other Software: | None |

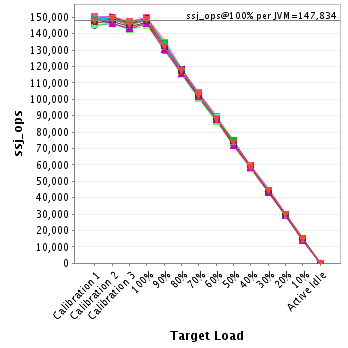

JVM Instance | ssj_ops@100% |
---|---|
WIN-1980QQTDBJM.001 | 149,989 |
WIN-1980QQTDBJM.002 | 145,334 |
WIN-1980QQTDBJM.003 | 144,738 |
WIN-1980QQTDBJM.004 | 145,123 |
WIN-1980QQTDBJM.005 | 149,611 |
WIN-1980QQTDBJM.006 | 148,952 |
WIN-1980QQTDBJM.007 | 148,250 |
WIN-1980QQTDBJM.008 | 149,264 |
WIN-1980QQTDBJM.009 | 149,044 |
WIN-1980QQTDBJM.010 | 148,136 |
WIN-1980QQTDBJM.011 | 148,639 |
WIN-1980QQTDBJM.012 | 148,528 |
WIN-1980QQTDBJM.013 | 145,948 |
WIN-1980QQTDBJM.014 | 148,381 |
WIN-1980QQTDBJM.015 | 146,973 |
WIN-1980QQTDBJM.016 | 148,432 |
ssj_ops@100% | 2,365,342 |
ssj_ops@100% per JVM | 147,834 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 150,515 | ||
Calibration 2 | 149,833 | ||
Calibration 3 | 147,226 | ||
ssj_ops@calibrated=148,529 | |||
100% | 101.0% | 148,529 | 149,989 |
90% | 89.4% | 133,676 | 132,810 |
80% | 79.3% | 118,823 | 117,838 |
70% | 70.0% | 103,970 | 103,949 |
60% | 60.2% | 89,117 | 89,458 |
50% | 49.9% | 74,265 | 74,063 |
40% | 40.1% | 59,412 | 59,617 |
30% | 29.8% | 44,559 | 44,331 |
20% | 19.9% | 29,706 | 29,629 |
10% | 10.2% | 14,853 | 15,168 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 144,940 | ||
Calibration 2 | 146,481 | ||
Calibration 3 | 142,471 | ||
ssj_ops@calibrated=144,476 | |||
100% | 100.6% | 144,476 | 145,334 |
90% | 89.8% | 130,029 | 129,770 |
80% | 80.4% | 115,581 | 116,116 |
70% | 69.9% | 101,133 | 101,031 |
60% | 59.9% | 86,686 | 86,534 |
50% | 51.2% | 72,238 | 73,957 |
40% | 40.0% | 57,790 | 57,820 |
30% | 30.2% | 43,343 | 43,575 |
20% | 20.0% | 28,895 | 28,927 |
10% | 10.3% | 14,448 | 14,947 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 145,773 | ||
Calibration 2 | 146,316 | ||
Calibration 3 | 142,823 | ||
ssj_ops@calibrated=144,569 | |||
100% | 100.1% | 144,569 | 144,738 |
90% | 90.4% | 130,113 | 130,642 |
80% | 79.4% | 115,656 | 114,844 |
70% | 69.6% | 101,199 | 100,579 |
60% | 60.0% | 86,742 | 86,724 |
50% | 49.6% | 72,285 | 71,745 |
40% | 39.8% | 57,828 | 57,506 |
30% | 30.1% | 43,371 | 43,505 |
20% | 20.4% | 28,914 | 29,533 |
10% | 10.0% | 14,457 | 14,432 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 147,124 | ||
Calibration 2 | 147,240 | ||
Calibration 3 | 143,658 | ||
ssj_ops@calibrated=145,449 | |||
100% | 99.8% | 145,449 | 145,123 |
90% | 89.8% | 130,904 | 130,619 |
80% | 79.4% | 116,359 | 115,422 |
70% | 70.5% | 101,814 | 102,556 |
60% | 60.2% | 87,269 | 87,549 |
50% | 49.6% | 72,725 | 72,133 |
40% | 40.4% | 58,180 | 58,700 |
30% | 29.8% | 43,635 | 43,347 |
20% | 20.1% | 29,090 | 29,283 |
10% | 10.0% | 14,545 | 14,596 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 150,294 | ||
Calibration 2 | 150,611 | ||
Calibration 3 | 147,252 | ||
ssj_ops@calibrated=148,932 | |||
100% | 100.5% | 148,932 | 149,611 |
90% | 91.1% | 134,039 | 135,657 |
80% | 79.8% | 119,146 | 118,858 |
70% | 69.9% | 104,252 | 104,075 |
60% | 59.9% | 89,359 | 89,223 |
50% | 49.9% | 74,466 | 74,389 |
40% | 39.9% | 59,573 | 59,388 |
30% | 30.4% | 44,680 | 45,336 |
20% | 20.2% | 29,786 | 30,095 |
10% | 10.4% | 14,893 | 15,467 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 148,434 | ||
Calibration 2 | 149,206 | ||
Calibration 3 | 145,497 | ||
ssj_ops@calibrated=147,352 | |||
100% | 101.1% | 147,352 | 148,952 |
90% | 89.5% | 132,616 | 131,848 |
80% | 80.0% | 117,881 | 117,858 |
70% | 69.2% | 103,146 | 101,970 |
60% | 60.3% | 88,411 | 88,848 |
50% | 50.2% | 73,676 | 74,035 |
40% | 40.1% | 58,941 | 59,041 |
30% | 30.2% | 44,205 | 44,490 |
20% | 20.0% | 29,470 | 29,450 |
10% | 10.0% | 14,735 | 14,778 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 148,052 | ||
Calibration 2 | 149,214 | ||
Calibration 3 | 145,385 | ||
ssj_ops@calibrated=147,299 | |||
100% | 100.6% | 147,299 | 148,250 |
90% | 90.6% | 132,569 | 133,438 |
80% | 79.5% | 117,840 | 117,085 |
70% | 69.2% | 103,110 | 101,898 |
60% | 60.0% | 88,380 | 88,385 |
50% | 50.3% | 73,650 | 74,155 |
40% | 39.4% | 58,920 | 58,095 |
30% | 30.4% | 44,190 | 44,818 |
20% | 19.8% | 29,460 | 29,133 |
10% | 9.8% | 14,730 | 14,458 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 149,512 | ||
Calibration 2 | 150,361 | ||
Calibration 3 | 145,964 | ||
ssj_ops@calibrated=148,162 | |||
100% | 100.7% | 148,162 | 149,264 |
90% | 90.4% | 133,346 | 133,945 |
80% | 79.3% | 118,530 | 117,534 |
70% | 70.0% | 103,714 | 103,749 |
60% | 59.9% | 88,897 | 88,780 |
50% | 49.7% | 74,081 | 73,596 |
40% | 40.0% | 59,265 | 59,239 |
30% | 30.2% | 44,449 | 44,776 |
20% | 20.1% | 29,632 | 29,715 |
10% | 10.0% | 14,816 | 14,800 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 147,465 | ||
Calibration 2 | 149,607 | ||
Calibration 3 | 146,061 | ||
ssj_ops@calibrated=147,834 | |||
100% | 100.8% | 147,834 | 149,044 |
90% | 90.2% | 133,051 | 133,359 |
80% | 79.9% | 118,267 | 118,117 |
70% | 69.3% | 103,484 | 102,383 |
60% | 59.7% | 88,701 | 88,313 |
50% | 49.8% | 73,917 | 73,651 |
40% | 39.9% | 59,134 | 59,028 |
30% | 29.8% | 44,350 | 43,987 |
20% | 20.0% | 29,567 | 29,539 |
10% | 10.3% | 14,783 | 15,230 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 148,451 | ||
Calibration 2 | 148,986 | ||
Calibration 3 | 145,764 | ||
ssj_ops@calibrated=147,375 | |||
100% | 100.5% | 147,375 | 148,136 |
90% | 89.7% | 132,637 | 132,145 |
80% | 80.0% | 117,900 | 117,897 |
70% | 69.7% | 103,162 | 102,789 |
60% | 59.6% | 88,425 | 87,770 |
50% | 49.5% | 73,687 | 73,001 |
40% | 40.0% | 58,950 | 58,922 |
30% | 29.6% | 44,212 | 43,656 |
20% | 20.0% | 29,475 | 29,473 |
10% | 9.8% | 14,737 | 14,395 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 148,648 | ||
Calibration 2 | 149,006 | ||
Calibration 3 | 145,681 | ||
ssj_ops@calibrated=147,343 | |||
100% | 100.9% | 147,343 | 148,639 |
90% | 91.0% | 132,609 | 134,034 |
80% | 79.9% | 117,875 | 117,655 |
70% | 70.0% | 103,140 | 103,136 |
60% | 59.8% | 88,406 | 88,160 |
50% | 50.9% | 73,672 | 74,948 |
40% | 39.8% | 58,937 | 58,654 |
30% | 29.9% | 44,203 | 44,018 |
20% | 20.0% | 29,469 | 29,418 |
10% | 10.2% | 14,734 | 14,999 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 147,896 | ||
Calibration 2 | 149,454 | ||
Calibration 3 | 145,246 | ||
ssj_ops@calibrated=147,350 | |||
100% | 100.8% | 147,350 | 148,528 |
90% | 90.2% | 132,615 | 132,908 |
80% | 79.1% | 117,880 | 116,558 |
70% | 69.6% | 103,145 | 102,575 |
60% | 59.8% | 88,410 | 88,177 |
50% | 50.0% | 73,675 | 73,662 |
40% | 40.1% | 58,940 | 59,074 |
30% | 29.6% | 44,205 | 43,571 |
20% | 19.9% | 29,470 | 29,300 |
10% | 9.9% | 14,735 | 14,548 |
Active Idle | 0 | 0 |

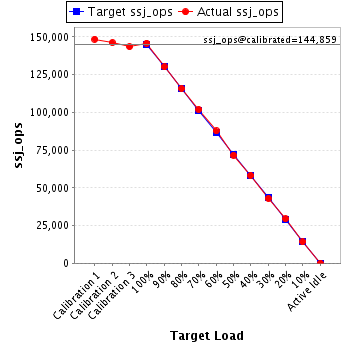

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 148,560 | ||
Calibration 2 | 146,221 | ||
Calibration 3 | 143,496 | ||
ssj_ops@calibrated=144,859 | |||
100% | 100.8% | 144,859 | 145,948 |
90% | 89.9% | 130,373 | 130,202 |
80% | 79.9% | 115,887 | 115,775 |
70% | 70.4% | 101,401 | 101,992 |
60% | 60.6% | 86,915 | 87,721 |
50% | 49.5% | 72,429 | 71,711 |
40% | 40.2% | 57,943 | 58,161 |
30% | 29.7% | 43,458 | 43,012 |
20% | 20.3% | 28,972 | 29,402 |
10% | 9.8% | 14,486 | 14,181 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 149,061 | ||
Calibration 2 | 149,213 | ||
Calibration 3 | 145,747 | ||
ssj_ops@calibrated=147,480 | |||
100% | 100.6% | 147,480 | 148,381 |
90% | 90.4% | 132,732 | 133,260 |
80% | 80.2% | 117,984 | 118,341 |
70% | 69.9% | 103,236 | 103,117 |
60% | 59.9% | 88,488 | 88,348 |
50% | 49.7% | 73,740 | 73,367 |
40% | 39.9% | 58,992 | 58,793 |
30% | 30.2% | 44,244 | 44,498 |
20% | 19.7% | 29,496 | 29,074 |
10% | 10.0% | 14,748 | 14,723 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 147,153 | ||
Calibration 2 | 147,661 | ||
Calibration 3 | 144,560 | ||
ssj_ops@calibrated=146,111 | |||
100% | 100.6% | 146,111 | 146,973 |
90% | 90.5% | 131,500 | 132,191 |
80% | 80.0% | 116,888 | 116,841 |
70% | 69.8% | 102,277 | 101,931 |
60% | 60.1% | 87,666 | 87,767 |
50% | 50.5% | 73,055 | 73,803 |
40% | 40.4% | 58,444 | 59,090 |
30% | 29.9% | 43,833 | 43,737 |
20% | 20.1% | 29,222 | 29,314 |
10% | 10.0% | 14,611 | 14,646 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 147,987 | ||
Calibration 2 | 148,986 | ||
Calibration 3 | 145,488 | ||
ssj_ops@calibrated=147,237 | |||
100% | 100.8% | 147,237 | 148,432 |
90% | 89.9% | 132,513 | 132,370 |
80% | 79.9% | 117,790 | 117,706 |
70% | 69.4% | 103,066 | 102,254 |
60% | 59.6% | 88,342 | 87,815 |
50% | 50.2% | 73,618 | 73,849 |
40% | 39.5% | 58,895 | 58,203 |
30% | 30.2% | 44,171 | 44,464 |
20% | 20.1% | 29,447 | 29,525 |
10% | 10.0% | 14,724 | 14,791 |
Active Idle | 0 | 0 |
