Dell Inc. PowerEdge M420 ssj_ops@100% = 36,985,454
ssj_ops@100% per Host = 1,155,795
ssj_ops@100% per JVM = 144,474
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 20, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Jul 11, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     37,001,749
Calibration 2     37,122,577
Calibration 3     37,071,235
ssj_ops@calibrated=37,096,906
100% 99.7% 37,096,906 36,985,454
90% 90.1% 33,387,215 33,411,430
80% 80.0% 29,677,525 29,670,355
70% 70.0% 25,967,834 25,981,035
60% 60.0% 22,258,144 22,255,784
50% 50.0% 18,548,453 18,548,239
40% 40.0% 14,838,762 14,834,962
30% 30.0% 11,129,072 11,140,539
20% 20.0% 7,419,381 7,420,953
10% 10.0% 3,709,691 3,707,990
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
32 64 512 1,024 768 32 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000e
Form Factor: 10U
Power Supply Quantity and Rating (W): 6 x 2700
Power Supply Details: Dell PN G803N
Network Switch: Dell PowerConnect 6248
Network Switch Details: 48 Port 1Gb Ethernet Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: Dell M1000e Chassis Management Controller, Two Dell 16-Port Gigabit Ethernet Pass-Through Modules
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: M420
# of Identical Nodes: 32
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M420
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.3 GHz)
CPU Characteristics: 8 Core, 2.30 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 1.8" SATA SSD Dell P/N 02KFM
Disk Controller: PERC H310
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard dual-port Broadcom 10Gb Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 1.0.0
Management Firmware Version: iDRAC7 1.10 Build 20
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled.
  • Hardware Prefetcher Disabled.
  • DCU Streamer Prefetcher disabled.
  • User Accessible USB Ports set to Disabled.
  • CPU Power management set to System DBPM (DAPC).
  • Memory Speed set to 1067MHz.
  • Turbo Boost Disabled.
  • C1E Enabled.
  • C States enabled
  • QPI speed set to 6.4 GT/s.
  • Memory Patrol Scrub disabled.
  • Memory refresh rate set to 1x.
  • Memory Operating Voltage set to Auto.
    • Management Firmware Settings
    none
    System Under Test Notes
  • Each JVM instance was affinitized to four logical processors.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Run was started remotely via psexec script.
  • Windows Power Saver Settings:
  • Turn off Hard Disk after 1 Minute.
  • Turn off Display after 1 Minute.
  • SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
    • Notes
    None
    Host Instance Summary
    Host ssj_ops@100%
    M420-01a 1,157,653
    M420-01b 1,157,389
    M420-01c 1,155,986
    M420-01d 1,156,455
    M420-02a 1,155,810
    M420-02b 1,156,519
    M420-02c 1,155,106
    M420-02d 1,157,824
    M420-03a 1,154,490
    M420-03b 1,157,058
    M420-03c 1,156,963
    M420-03d 1,162,871
    M420-04a 1,152,219
    M420-04b 1,160,957
    M420-04c 1,155,606
    M420-04d 1,156,174
    M420-05a 1,154,791
    M420-05b 1,151,400
    M420-05c 1,154,021
    M420-05d 1,155,575
    M420-06a 1,154,967
    M420-06b 1,155,890
    M420-06c 1,153,911
    M420-06d 1,155,332
    M420-07a 1,153,650
    M420-07b 1,156,418
    M420-07c 1,158,237
    M420-07d 1,156,516
    M420-08a 1,157,567
    M420-08b 1,151,229
    M420-08c 1,155,395
    M420-08d 1,151,477
    ssj_ops@100% 36,985,454
    ssj_ops@100% per Host 1,155,795
    ssj_ops@100% per JVM 144,474

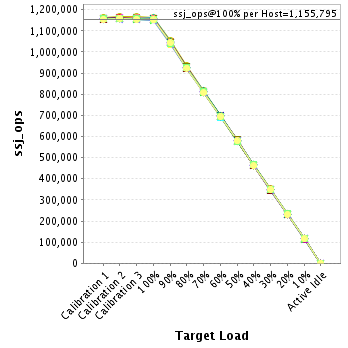

    Graph of per-host results
    Host 'M420-01a' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,157,185
    Calibration 2     1,162,952
    Calibration 3     1,161,270
    ssj_ops@calibrated=1,162,111
    100% 99.6% 1,162,111 1,157,653
    90% 90.2% 1,045,900 1,048,306
    80% 80.2% 929,689 931,628
    70% 70.0% 813,478 813,345
    60% 59.7% 697,267 694,258
    50% 50.2% 581,055 583,403
    40% 39.9% 464,844 463,797
    30% 29.8% 348,633 346,644
    20% 20.2% 232,422 234,490
    10% 10.0% 116,211 115,799
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-01b' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,153,024
    Calibration 2     1,159,248
    Calibration 3     1,157,093
    ssj_ops@calibrated=1,158,171
    100% 99.9% 1,158,171 1,157,389
    90% 90.0% 1,042,354 1,041,775
    80% 79.7% 926,537 923,609
    70% 70.0% 810,720 810,967
    60% 60.0% 694,903 695,339
    50% 49.9% 579,085 577,471
    40% 40.1% 463,268 464,910
    30% 30.0% 347,451 347,930
    20% 19.9% 231,634 230,019
    10% 9.9% 115,817 114,601
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-01c' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,156,784
    Calibration 2     1,160,070
    Calibration 3     1,158,569
    ssj_ops@calibrated=1,159,320
    100% 99.7% 1,159,320 1,155,986
    90% 90.1% 1,043,388 1,044,594
    80% 80.1% 927,456 928,482
    70% 70.2% 811,524 813,725
    60% 60.0% 695,592 695,796
    50% 49.8% 579,660 577,451
    40% 40.2% 463,728 465,957
    30% 30.1% 347,796 349,235
    20% 20.1% 231,864 232,833
    10% 10.1% 115,932 116,706
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-01d' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,159,918
    Calibration 2     1,161,569
    Calibration 3     1,160,029
    ssj_ops@calibrated=1,160,799
    100% 99.6% 1,160,799 1,156,455
    90% 90.3% 1,044,719 1,047,983
    80% 79.6% 928,639 923,559
    70% 70.0% 812,559 812,130
    60% 60.1% 696,479 697,464
    50% 50.0% 580,399 580,832
    40% 39.8% 464,320 462,133
    30% 30.1% 348,240 348,908
    20% 20.2% 232,160 234,146
    10% 10.0% 116,080 116,621
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-02a' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,158,245
    Calibration 2     1,163,282
    Calibration 3     1,162,756
    ssj_ops@calibrated=1,163,019
    100% 99.4% 1,163,019 1,155,810
    90% 89.8% 1,046,717 1,044,094
    80% 80.1% 930,416 931,819
    70% 69.9% 814,114 812,567
    60% 59.8% 697,812 695,801
    50% 49.7% 581,510 578,291
    40% 39.9% 465,208 464,194
    30% 30.0% 348,906 349,142
    20% 20.0% 232,604 232,192
    10% 9.9% 116,302 115,340
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-02b' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,153,562
    Calibration 2     1,160,482
    Calibration 3     1,160,712
    ssj_ops@calibrated=1,160,597
    100% 99.6% 1,160,597 1,156,519
    90% 90.0% 1,044,537 1,044,690
    80% 80.2% 928,478 930,564
    70% 69.8% 812,418 810,093
    60% 59.9% 696,358 695,143
    50% 50.2% 580,299 583,152
    40% 40.1% 464,239 465,041
    30% 29.9% 348,179 346,996
    20% 20.0% 232,119 232,307
    10% 9.9% 116,060 115,114
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-02c' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,158,397
    Calibration 2     1,161,505
    Calibration 3     1,161,013
    ssj_ops@calibrated=1,161,259
    100% 99.5% 1,161,259 1,155,106
    90% 90.1% 1,045,133 1,046,505
    80% 79.9% 929,007 927,536
    70% 69.9% 812,881 811,761
    60% 60.1% 696,755 697,345
    50% 49.8% 580,629 578,635
    40% 39.9% 464,504 462,776
    30% 30.0% 348,378 348,092
    20% 20.0% 232,252 232,207
    10% 10.0% 116,126 116,017
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-02d' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,157,922
    Calibration 2     1,163,412
    Calibration 3     1,162,033
    ssj_ops@calibrated=1,162,723
    100% 99.6% 1,162,723 1,157,824
    90% 90.2% 1,046,450 1,048,790
    80% 79.8% 930,178 928,105
    70% 70.1% 813,906 815,274
    60% 60.1% 697,634 698,292
    50% 50.0% 581,361 581,691
    40% 40.0% 465,089 465,221
    30% 30.2% 348,817 350,626
    20% 20.0% 232,545 232,344
    10% 10.0% 116,272 116,035
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-03a' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,154,567
    Calibration 2     1,158,633
    Calibration 3     1,157,403
    ssj_ops@calibrated=1,158,018
    100% 99.7% 1,158,018 1,154,490
    90% 90.0% 1,042,216 1,042,394
    80% 79.9% 926,414 925,650
    70% 70.3% 810,612 814,066
    60% 59.9% 694,811 694,078
    50% 49.7% 579,009 575,454
    40% 40.0% 463,207 463,151
    30% 29.9% 347,405 346,735
    20% 19.9% 231,604 230,229
    10% 10.1% 115,802 116,429
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-03b' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,156,269
    Calibration 2     1,157,985
    Calibration 3     1,158,278
    ssj_ops@calibrated=1,158,132
    100% 99.9% 1,158,132 1,157,058
    90% 90.1% 1,042,318 1,043,560
    80% 80.2% 926,505 928,549
    70% 70.2% 810,692 812,514
    60% 60.2% 694,879 697,184
    50% 50.2% 579,066 581,437
    40% 40.1% 463,253 463,908
    30% 30.0% 347,439 347,312
    20% 19.9% 231,626 230,276
    10% 10.0% 115,813 115,383
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-03c' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,156,141
    Calibration 2     1,161,574
    Calibration 3     1,158,894
    ssj_ops@calibrated=1,160,234
    100% 99.7% 1,160,234 1,156,963
    90% 89.9% 1,044,211 1,043,244
    80% 80.1% 928,187 929,800
    70% 69.9% 812,164 810,578
    60% 60.0% 696,141 695,978
    50% 50.0% 580,117 580,413
    40% 40.0% 464,094 464,369
    30% 29.9% 348,070 346,776
    20% 20.0% 232,047 232,008
    10% 10.0% 116,023 115,961
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-03d' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,162,397
    Calibration 2     1,168,703
    Calibration 3     1,165,942
    ssj_ops@calibrated=1,167,323
    100% 99.6% 1,167,323 1,162,871
    90% 90.2% 1,050,591 1,052,822
    80% 80.2% 933,858 936,714
    70% 70.2% 817,126 819,835
    60% 59.9% 700,394 699,004
    50% 49.8% 583,661 580,927
    40% 40.0% 466,929 467,069
    30% 30.1% 350,197 351,526
    20% 19.9% 233,465 232,675
    10% 10.1% 116,732 117,937
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-04a' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,152,331
    Calibration 2     1,157,701
    Calibration 3     1,153,335
    ssj_ops@calibrated=1,155,518
    100% 99.7% 1,155,518 1,152,219
    90% 90.2% 1,039,966 1,042,844
    80% 80.0% 924,414 924,653
    70% 70.2% 808,862 810,653
    60% 60.0% 693,311 693,599
    50% 50.2% 577,759 579,928
    40% 39.9% 462,207 461,377
    30% 30.0% 346,655 346,930
    20% 19.9% 231,104 229,426
    10% 9.9% 115,552 114,198
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-04b' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,159,834
    Calibration 2     1,163,041
    Calibration 3     1,162,529
    ssj_ops@calibrated=1,162,785
    100% 99.8% 1,162,785 1,160,957
    90% 90.2% 1,046,507 1,049,066
    80% 79.9% 930,228 928,804
    70% 70.2% 813,950 815,944
    60% 60.3% 697,671 700,974
    50% 50.1% 581,393 582,650
    40% 39.8% 465,114 463,153
    30% 29.8% 348,836 346,291
    20% 20.1% 232,557 233,170
    10% 10.1% 116,279 117,333
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-04c' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,154,530
    Calibration 2     1,159,510
    Calibration 3     1,157,495
    ssj_ops@calibrated=1,158,503
    100% 99.7% 1,158,503 1,155,606
    90% 90.3% 1,042,652 1,046,339
    80% 80.3% 926,802 929,904
    70% 69.8% 810,952 808,962
    60% 60.0% 695,102 694,895
    50% 49.9% 579,251 578,125
    40% 39.8% 463,401 460,709
    30% 30.2% 347,551 350,375
    20% 19.9% 231,701 231,040
    10% 10.0% 115,850 115,494
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-04d' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,158,006
    Calibration 2     1,161,880
    Calibration 3     1,158,668
    ssj_ops@calibrated=1,160,274
    100% 99.6% 1,160,274 1,156,174
    90% 89.9% 1,044,247 1,042,977
    80% 79.8% 928,219 925,781
    70% 70.3% 812,192 815,268
    60% 60.0% 696,164 696,402
    50% 50.0% 580,137 580,132
    40% 40.0% 464,110 463,688
    30% 30.1% 348,082 348,795
    20% 20.0% 232,055 232,368
    10% 10.0% 116,027 115,712
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-05a' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,156,435
    Calibration 2     1,158,489
    Calibration 3     1,158,210
    ssj_ops@calibrated=1,158,350
    100% 99.7% 1,158,350 1,154,791
    90% 89.9% 1,042,515 1,041,880
    80% 80.0% 926,680 926,645
    70% 69.9% 810,845 810,227
    60% 60.0% 695,010 695,398
    50% 50.2% 579,175 581,322
    40% 40.1% 463,340 464,467
    30% 30.1% 347,505 348,509
    20% 20.0% 231,670 231,506
    10% 10.0% 115,835 115,452
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-05b' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,153,326
    Calibration 2     1,156,842
    Calibration 3     1,152,881
    ssj_ops@calibrated=1,154,862
    100% 99.7% 1,154,862 1,151,400
    90% 90.2% 1,039,376 1,041,180
    80% 79.9% 923,889 923,144
    70% 70.1% 808,403 809,914
    60% 60.0% 692,917 692,855
    50% 50.0% 577,431 577,582
    40% 40.0% 461,945 462,253
    30% 30.1% 346,459 347,647
    20% 20.0% 230,972 230,748
    10% 9.9% 115,486 114,608
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-05c' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,153,097
    Calibration 2     1,157,862
    Calibration 3     1,154,391
    ssj_ops@calibrated=1,156,127
    100% 99.8% 1,156,127 1,154,021
    90% 89.7% 1,040,514 1,037,286
    80% 80.1% 924,901 925,651
    70% 70.1% 809,289 810,444
    60% 59.9% 693,676 692,102
    50% 49.9% 578,063 577,066
    40% 39.9% 462,451 460,966
    30% 29.9% 346,838 345,846
    20% 20.0% 231,225 231,226
    10% 10.1% 115,613 116,235
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-05d' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,157,739
    Calibration 2     1,161,087
    Calibration 3     1,158,814
    ssj_ops@calibrated=1,159,951
    100% 99.6% 1,159,951 1,155,575
    90% 89.6% 1,043,956 1,039,640
    80% 80.0% 927,961 928,168
    70% 70.1% 811,966 813,544
    60% 59.8% 695,970 694,100
    50% 50.1% 579,975 580,964
    40% 39.9% 463,980 462,811
    30% 29.9% 347,985 347,136
    20% 20.0% 231,990 231,542
    10% 10.0% 115,995 115,659
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-06a' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,156,502
    Calibration 2     1,159,154
    Calibration 3     1,156,414
    ssj_ops@calibrated=1,157,784
    100% 99.8% 1,157,784 1,154,967
    90% 90.1% 1,042,006 1,042,705
    80% 80.2% 926,227 928,375
    70% 70.2% 810,449 812,302
    60% 59.8% 694,671 692,089
    50% 50.1% 578,892 579,958
    40% 39.9% 463,114 461,947
    30% 30.0% 347,335 347,159
    20% 20.1% 231,557 232,336
    10% 9.9% 115,778 114,955
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-06b' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,153,980
    Calibration 2     1,157,402
    Calibration 3     1,155,910
    ssj_ops@calibrated=1,156,656
    100% 99.9% 1,156,656 1,155,890
    90% 90.2% 1,040,991 1,043,701
    80% 79.7% 925,325 922,350
    70% 69.7% 809,659 805,953
    60% 60.0% 693,994 694,480
    50% 50.0% 578,328 578,017
    40% 39.9% 462,662 461,780
    30% 30.1% 346,997 348,266
    20% 20.0% 231,331 231,164
    10% 10.1% 115,666 116,432
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-06c' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,152,161
    Calibration 2     1,156,710
    Calibration 3     1,156,423
    ssj_ops@calibrated=1,156,566
    100% 99.8% 1,156,566 1,153,911
    90% 90.2% 1,040,910 1,043,423
    80% 79.8% 925,253 923,171
    70% 70.3% 809,596 813,131
    60% 60.0% 693,940 694,300
    50% 50.0% 578,283 577,951
    40% 40.1% 462,627 463,810
    30% 29.9% 346,970 345,296
    20% 20.0% 231,313 231,876
    10% 10.0% 115,657 115,782
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-06d' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,154,798
    Calibration 2     1,158,696
    Calibration 3     1,158,357
    ssj_ops@calibrated=1,158,527
    100% 99.7% 1,158,527 1,155,332
    90% 90.2% 1,042,674 1,044,530
    80% 79.9% 926,821 925,470
    70% 70.1% 810,969 812,025
    60% 60.0% 695,116 694,996
    50% 49.9% 579,263 578,605
    40% 40.3% 463,411 466,358
    30% 29.9% 347,558 346,840
    20% 20.1% 231,705 232,944
    10% 10.1% 115,853 116,701
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-07a' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,157,425
    Calibration 2     1,161,457
    Calibration 3     1,156,964
    ssj_ops@calibrated=1,159,211
    100% 99.5% 1,159,211 1,153,650
    90% 90.1% 1,043,290 1,044,335
    80% 79.6% 927,368 922,650
    70% 69.9% 811,447 810,717
    60% 60.4% 695,526 699,697
    50% 49.8% 579,605 577,536
    40% 39.9% 463,684 462,967
    30% 30.2% 347,763 349,694
    20% 20.0% 231,842 231,580
    10% 10.0% 115,921 116,232
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-07b' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,157,597
    Calibration 2     1,160,785
    Calibration 3     1,159,487
    ssj_ops@calibrated=1,160,136
    100% 99.7% 1,160,136 1,156,418
    90% 90.0% 1,044,122 1,044,447
    80% 80.1% 928,109 929,834
    70% 69.8% 812,095 809,475
    60% 60.1% 696,082 696,771
    50% 50.3% 580,068 583,964
    40% 39.8% 464,054 461,737
    30% 30.2% 348,041 350,618
    20% 19.9% 232,027 231,393
    10% 10.0% 116,014 115,434
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-07c' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,156,353
    Calibration 2     1,160,983
    Calibration 3     1,159,323
    ssj_ops@calibrated=1,160,153
    100% 99.8% 1,160,153 1,158,237
    90% 90.1% 1,044,138 1,045,588
    80% 80.2% 928,122 930,242
    70% 70.2% 812,107 814,622
    60% 59.7% 696,092 693,055
    50% 49.9% 580,076 578,970
    40% 40.1% 464,061 465,798
    30% 30.2% 348,046 350,003
    20% 20.1% 232,031 233,294
    10% 10.1% 116,015 117,164
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-07d' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,159,282
    Calibration 2     1,160,795
    Calibration 3     1,159,155
    ssj_ops@calibrated=1,159,975
    100% 99.7% 1,159,975 1,156,516
    90% 90.3% 1,043,977 1,046,955
    80% 80.1% 927,980 928,758
    70% 70.0% 811,982 811,771
    60% 60.2% 695,985 698,325
    50% 50.0% 579,987 580,392
    40% 40.2% 463,990 466,023
    30% 30.0% 347,992 348,465
    20% 20.0% 231,995 232,500
    10% 10.0% 115,997 115,646
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-08a' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,155,486
    Calibration 2     1,159,564
    Calibration 3     1,161,283
    ssj_ops@calibrated=1,160,424
    100% 99.8% 1,160,424 1,157,567
    90% 90.2% 1,044,381 1,047,214
    80% 79.9% 928,339 927,144
    70% 69.9% 812,297 811,655
    60% 59.7% 696,254 693,202
    50% 50.0% 580,212 579,722
    40% 40.0% 464,170 463,817
    30% 30.0% 348,127 348,394
    20% 20.0% 232,085 232,466
    10% 10.1% 116,042 116,867
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-08b' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,156,777
    Calibration 2     1,154,824
    Calibration 3     1,155,429
    ssj_ops@calibrated=1,155,126
    100% 99.7% 1,155,126 1,151,229
    90% 89.8% 1,039,614 1,037,151
    80% 80.0% 924,101 924,028
    70% 69.9% 808,588 807,357
    60% 60.2% 693,076 695,379
    50% 50.1% 577,563 579,031
    40% 39.9% 462,050 461,045
    30% 30.0% 346,538 346,605
    20% 19.8% 231,025 229,196
    10% 10.0% 115,513 115,091
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-08c' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,156,560
    Calibration 2     1,156,637
    Calibration 3     1,156,801
    ssj_ops@calibrated=1,156,719
    100% 99.9% 1,156,719 1,155,395
    90% 89.8% 1,041,047 1,038,340
    80% 80.0% 925,375 925,479
    70% 70.3% 809,703 812,899
    60% 59.9% 694,031 693,396
    50% 50.0% 578,359 578,254
    40% 40.3% 462,688 465,914
    30% 30.1% 347,016 347,890
    20% 20.2% 231,344 234,093
    10% 9.9% 115,672 115,051
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M420-08d' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,155,120
    Calibration 2     1,159,742
    Calibration 3     1,155,370
    ssj_ops@calibrated=1,157,556
    100% 99.5% 1,157,556 1,151,477
    90% 90.1% 1,041,800 1,043,069
    80% 79.8% 926,045 924,089
    70% 69.7% 810,289 807,317
    60% 60.0% 694,534 694,087
    50% 50.0% 578,778 578,912
    40% 39.9% 463,022 461,817
    30% 30.2% 347,267 349,862
    20% 20.0% 231,511 231,360
    10% 10.0% 115,756 116,001
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
