Dell Inc. PowerEdge M420 SPECpower_ssj2008 = 4,535 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 20, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Jul 11, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 6,769 20.1
Calibration 2 6,882 20.1
Calibration 3 6,875 20.2
100% 6,854 20.2
90% 6,364 20.3
80% 5,539 20.4
70% 4,804 20.4
60% 4,224 20.4
50% 3,797 20.4
40% 3,439 20.4
30% 3,040 20.3
20% 2,726 20.3
10% 2,411 20.3
Active Idle 1,773 20.3
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91KA21978
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 5412137
Date of Calibration: 20-Oct-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to SUT power supply 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91KA21980
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 5412138
Date of Calibration: 20-Oct-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to SUT power supply 3 and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H723624
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 5497366
Date of Calibration: 17-Jan-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to SUT power supply 5 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 300.0 11.0 20.0 0.986 2,200 0.4%
Calibration 2 202 300.0 11.3 20.0 0.986 2,251 0.4%
Calibration 3 202 300.0 11.3 20.0 0.986 2,255 0.4%
100% 202 300.0 11.3 20.0 0.986 2,245 0.4%
90% 203 300.0 10.4 20.0 0.985 2,090 0.4%
80% 204 300.0 9.22 10.0 0.984 1,847 0.3%
70% 204 300.0 7.88 10.0 0.982 1,580 0.3%
60% 205 300.0 6.92 10.0 0.980 1,389 0.4%
50% 205 300.0 6.21 10.0 0.979 1,248 0.4%
40% 206 300.0 5.62 10.0 0.977 1,129 0.4%
30% 206 300.0 4.89 10.0 0.972 979 0.5%
20% 206 300.0 4.48 5.0 0.975 901 0.3%
10% 207 300.0 3.86 5.0 0.966 772 0.3%
Active Idle 207 300.0 3.14 5.0 0.946 616 0.4%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 300.0 11.7 20.0 0.986 2,324 0.4%
Calibration 2 202 300.0 11.7 20.0 0.986 2,326 0.4%
Calibration 3 202 300.0 11.5 20.0 0.986 2,303 0.4%
100% 202 300.0 11.5 20.0 0.986 2,290 0.4%
90% 203 300.0 10.6 20.0 0.985 2,125 0.4%
80% 204 300.0 9.25 10.0 0.984 1,854 0.3%
70% 204 300.0 8.09 10.0 0.982 1,622 0.3%
60% 205 300.0 7.15 10.0 0.980 1,437 0.3%
50% 205 300.0 6.50 10.0 0.980 1,307 0.4%
40% 206 300.0 5.83 10.0 0.978 1,173 0.4%
30% 206 300.0 5.31 10.0 0.976 1,068 0.4%
20% 206 300.0 4.60 5.0 0.974 924 0.3%
10% 207 300.0 4.20 5.0 0.973 845 0.3%
Active Idle 207 300.0 2.97 5.0 0.946 583 0.4%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 10.9 20.0 0.990 2,245 0.4%
Calibration 2 208 300.0 11.2 20.0 0.990 2,305 0.4%
Calibration 3 208 300.0 11.2 20.0 0.990 2,317 0.4%
100% 208 300.0 11.3 20.0 0.990 2,319 0.4%
90% 208 300.0 10.4 20.0 0.990 2,148 0.4%
80% 209 300.0 8.90 10.0 0.990 1,838 0.3%
70% 209 300.0 7.75 10.0 0.990 1,601 0.3%
60% 209 300.0 6.75 10.0 0.991 1,398 0.3%
50% 209 300.0 5.98 10.0 0.992 1,241 0.4%
40% 210 300.0 5.46 10.0 0.992 1,136 0.4%
30% 210 300.0 4.77 5.0 0.992 992 0.3%
20% 210 300.0 4.33 5.0 0.991 901 0.3%
10% 210 300.0 3.83 5.0 0.988 795 0.3%
Active Idle 210 300.0 2.80 5.0 0.973 574 0.4%

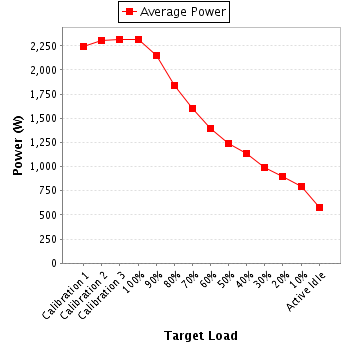

Power details for pwr3
