Acer Incorporated Acer AT350 F2 ssj_ops@100% = 1,028,960
ssj_ops@100% per JVM = 171,493
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 24, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,024,109
Calibration 2     1,031,182
Calibration 3     1,033,971
ssj_ops@calibrated=1,032,577
100% 99.6% 1,032,577 1,028,960
90% 90.2% 929,319 931,235
80% 79.5% 826,061 821,310
70% 69.8% 722,804 720,498
60% 59.8% 619,546 617,566
50% 50.1% 516,288 517,140
40% 40.0% 413,031 412,607
30% 30.1% 309,773 310,474
20% 20.1% 206,515 207,878
10% 10.0% 103,258 103,081
Active Idle   0 0

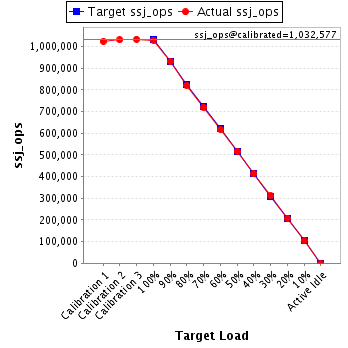

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT350 F2
Form Factor: Tower
CPU Name: Intel Xeon E5-2640
CPU Characteristics: 6 core, 2.5GHz, 15MB L3 Cache (Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600E; Slots 1A,2A,1B,2B,1C,2C,1D,2D and 1E,2E,1F,2F,1G,2G,1H,2H are populated
Power Supply Quantity and Rating (W): 1 x 920
Power Supply Details: Acer P/N SC.9201S.002
Disk Drive: 2 x 300GB 15K RPM SAS 3.5" HDD (P/N KH.30007.007)
Disk Controller: LSI MegaRAID SAS 9260-8i
# and type of Network Interface Cards (NICs) Installed: 4 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: No
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [0000000F, 000000F0, 00000F00, 0000F000, 000F0000, 00F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: D19
Management Firmware Version: 0.12
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-OVSNQNAO1QU.001 170,934
WIN-OVSNQNAO1QU.002 169,455
WIN-OVSNQNAO1QU.003 172,402
WIN-OVSNQNAO1QU.004 170,746
WIN-OVSNQNAO1QU.005 170,408
WIN-OVSNQNAO1QU.006 175,016
ssj_ops@100% 1,028,960
ssj_ops@100% per JVM 171,493

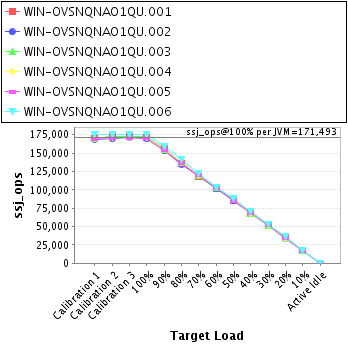

Graph of per-instance results
JVM 'WIN-OVSNQNAO1QU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,419
Calibration 2     171,986
Calibration 3     172,086
ssj_ops@calibrated=172,036
100% 99.4% 172,036 170,934
90% 90.5% 154,832 155,653
80% 79.0% 137,629 135,879
70% 68.9% 120,425 118,565
60% 59.3% 103,222 102,099
50% 50.0% 86,018 85,981
40% 40.0% 68,814 68,839
30% 30.0% 51,611 51,637
20% 20.5% 34,407 35,182
10% 9.8% 17,204 16,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,162
Calibration 2     169,402
Calibration 3     171,010
ssj_ops@calibrated=170,206
100% 99.6% 170,206 169,455
90% 90.0% 153,185 153,258
80% 79.3% 136,165 134,981
70% 70.4% 119,144 119,875
60% 60.1% 102,124 102,306
50% 50.0% 85,103 85,141
40% 39.9% 68,082 67,955
30% 30.0% 51,062 51,019
20% 20.2% 34,041 34,395
10% 10.0% 17,021 17,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,105
Calibration 2     172,129
Calibration 3     172,317
ssj_ops@calibrated=172,223
100% 100.1% 172,223 172,402
90% 89.8% 155,001 154,649
80% 79.3% 137,778 136,541
70% 69.6% 120,556 119,819
60% 60.0% 103,334 103,419
50% 50.1% 86,112 86,337
40% 39.7% 68,889 68,345
30% 30.0% 51,667 51,702
20% 20.0% 34,445 34,421
10% 10.0% 17,222 17,192
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,062
Calibration 2     171,185
Calibration 3     171,852
ssj_ops@calibrated=171,518
100% 99.5% 171,518 170,746
90% 90.2% 154,366 154,695
80% 79.6% 137,215 136,519
70% 69.7% 120,063 119,544
60% 60.2% 102,911 103,316
50% 50.6% 85,759 86,816
40% 39.7% 68,607 68,152
30% 30.0% 51,455 51,445
20% 19.8% 34,304 34,033
10% 10.0% 17,152 17,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,511
Calibration 2     170,853
Calibration 3     171,018
ssj_ops@calibrated=170,935
100% 99.7% 170,935 170,408
90% 90.2% 153,842 154,209
80% 79.8% 136,748 136,326
70% 70.2% 119,655 119,962
60% 60.1% 102,561 102,741
50% 49.8% 85,468 85,143
40% 40.2% 68,374 68,675
30% 30.3% 51,281 51,804
20% 19.9% 34,187 34,009
10% 9.9% 17,094 16,923
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,849
Calibration 2     175,627
Calibration 3     175,689
ssj_ops@calibrated=175,658
100% 99.6% 175,658 175,016
90% 90.4% 158,092 158,772
80% 80.3% 140,526 141,065
70% 69.9% 122,961 122,734
60% 59.0% 105,395 103,685
50% 49.9% 87,829 87,723
40% 40.2% 70,263 70,641
30% 30.1% 52,697 52,867
20% 20.4% 35,132 35,839
10% 10.2% 17,566 17,883
Active Idle   0 0

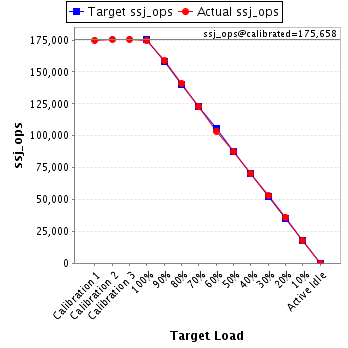

Graph of results
See the JVM Instance Performance Report for additional details.
