Acer Incorporated Acer AT350 F2 ssj_ops@100% = 961,609
ssj_ops@100% per JVM = 160,268
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 24, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     958,601
Calibration 2     963,909
Calibration 3     962,706
ssj_ops@calibrated=963,307
100% 99.8% 963,307 961,609
90% 90.3% 866,977 869,465
80% 79.7% 770,646 767,984
70% 70.1% 674,315 675,326
60% 60.1% 577,984 578,707
50% 49.9% 481,654 480,834
40% 40.3% 385,323 388,395
30% 30.0% 288,992 288,991
20% 20.1% 192,661 193,316
10% 10.0% 96,331 96,548
Active Idle   0 0

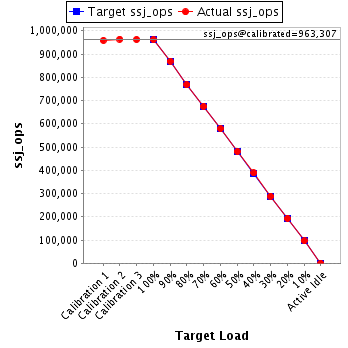

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT350 F2
Form Factor: Tower
CPU Name: Intel Xeon E5-2630
CPU Characteristics: 6 core, 2.3GHz, 15MB L3 Cache (Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600E; Slots 1A,2A,1B,2B,1C,2C,1D,2D and 1E,2E,1F,2F,1G,2G,1H,2H are populated
Power Supply Quantity and Rating (W): 1 x 920
Power Supply Details: Acer P/N SC.9201S.002
Disk Drive: 2 x 300GB 15K RPM SAS 3.5" HDD (P/N KH.30007.007)
Disk Controller: LSI MegaRAID SAS 9260-8i
# and type of Network Interface Cards (NICs) Installed: 4 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: No
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [0000000F, 000000F0, 00000F00, 0000F000, 000F0000, 00F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: D19
Management Firmware Version: 0.12
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-11AFDVMM189.001 160,181
WIN-11AFDVMM189.002 160,972
WIN-11AFDVMM189.003 159,407
WIN-11AFDVMM189.004 160,706
WIN-11AFDVMM189.005 159,401
WIN-11AFDVMM189.006 160,942
ssj_ops@100% 961,609
ssj_ops@100% per JVM 160,268
Graph of per-instance results
JVM 'WIN-11AFDVMM189.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,031
Calibration 2     160,868
Calibration 3     160,984
ssj_ops@calibrated=160,926
100% 99.5% 160,926 160,181
90% 90.3% 144,833 145,394
80% 79.7% 128,741 128,223
70% 70.2% 112,648 112,892
60% 60.3% 96,556 97,083
50% 49.8% 80,463 80,138
40% 40.5% 64,370 65,188
30% 29.7% 48,278 47,719
20% 20.2% 32,185 32,516
10% 10.3% 16,093 16,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     159,553
Calibration 2     160,363
Calibration 3     161,228
ssj_ops@calibrated=160,796
100% 100.1% 160,796 160,972
90% 91.3% 144,716 146,780
80% 79.8% 128,637 128,322
70% 70.0% 112,557 112,625
60% 59.5% 96,477 95,609
50% 49.5% 80,398 79,623
40% 40.3% 64,318 64,765
30% 30.1% 48,239 48,473
20% 19.8% 32,159 31,821
10% 10.0% 16,080 16,081
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     159,068
Calibration 2     159,969
Calibration 3     159,723
ssj_ops@calibrated=159,846
100% 99.7% 159,846 159,407
90% 90.0% 143,861 143,910
80% 80.0% 127,877 127,947
70% 70.5% 111,892 112,653
60% 60.2% 95,908 96,218
50% 49.7% 79,923 79,377
40% 40.8% 63,938 65,176
30% 29.7% 47,954 47,456
20% 20.2% 31,969 32,260
10% 10.0% 15,985 16,061
Active Idle   0 0

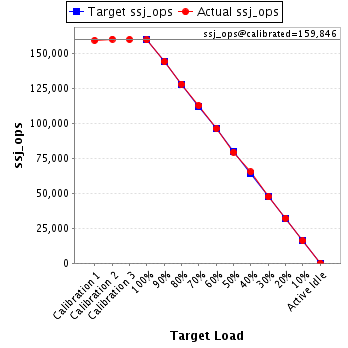

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,135
Calibration 2     161,038
Calibration 3     160,307
ssj_ops@calibrated=160,673
100% 100.0% 160,673 160,706
90% 89.5% 144,606 143,830
80% 79.4% 128,538 127,609
70% 69.9% 112,471 112,239
60% 60.0% 96,404 96,366
50% 49.7% 80,336 79,830
40% 39.9% 64,269 64,075
30% 30.3% 48,202 48,692
20% 20.0% 32,135 32,207
10% 9.8% 16,067 15,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,452
Calibration 2     160,117
Calibration 3     159,024
ssj_ops@calibrated=159,570
100% 99.9% 159,570 159,401
90% 91.0% 143,613 145,256
80% 80.0% 127,656 127,708
70% 70.3% 111,699 112,200
60% 60.0% 95,742 95,765
50% 50.2% 79,785 80,086
40% 40.5% 63,828 64,656
30% 30.1% 47,871 47,989
20% 20.2% 31,914 32,166
10% 9.9% 15,957 15,875
Active Idle   0 0

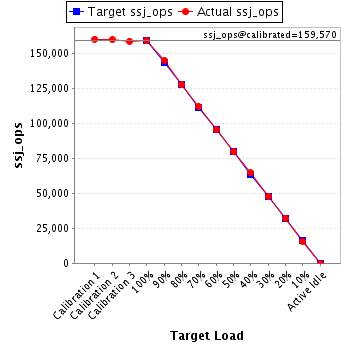

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     159,362
Calibration 2     161,553
Calibration 3     161,440
ssj_ops@calibrated=161,496
100% 99.7% 161,496 160,942
90% 89.3% 145,347 144,295
80% 79.4% 129,197 128,176
70% 69.8% 113,047 112,716
60% 60.5% 96,898 97,666
50% 50.6% 80,748 81,780
40% 40.0% 64,599 64,535
30% 30.1% 48,449 48,661
20% 20.0% 32,299 32,346
10% 10.1% 16,150 16,310
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
