SPECpower_ssj2008

Huawei Technologies Co., Ltd RH2485 V2			SPECpower_ssj2008 = 4,991 overall ssj_ops/watt
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Single Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Jun 12, 2012
Hardware Availability:	Jun-2012	Software Availability:	Dec-2011	Publication:	Jun 28, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	RH2485 V2
Form Factor:	2U
CPU Name:	Intel Xeon E5-4640
CPU Characteristics:	8-Core, 2.40 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 2.80 GHz)
CPU Frequency (MHz):	2400
CPU(s) Enabled:	32 cores, 4 chips, 8 cores/chip
Hardware Threads:	64 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	48
# and size of DIMM:	12 x 4 GB
Memory Details:	4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Huawei P/N 98080310
Disk Drive:	1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver enabled in OS
Operating System (OS):	Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version:	R2 SP1
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000,0xF000000000000,0xF0000000000000,0xF00000000000000,0xF000000000000000]
JVM Instances:	16
JVM Initial Heap (MB):	1600
JVM Maximum Heap (MB):	1600
JVM Address Bits:	64
Boot Firmware Version:	V023
Management Firmware Version:	3.00
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

none

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to four logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Software
Operating System (OS):	Microsoft Windows Server 2003 SP2
JVM Vendor:	Oracle
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
CCS Version:	1.2.5

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Electric International Pte. Ltd.
Model:	WT210
Serial Number:	91K630156
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	B11004997-0007
Date of Calibration:	7-Jun-2012
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.4.1-1271fb18-20110728
Setup Description:	none

Temperature Sensor temp1
Hardware Vendor:	Temperature@lert
Model:	TM-STD30
Driver Version:	3.1.0.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	The Temperature@lert-TM-STD30 used a 2 meters USB extension cable to connect to the controller. The Temperature@lert probe was placed in front of the main airflow inlet of the SUT less than 50mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version.

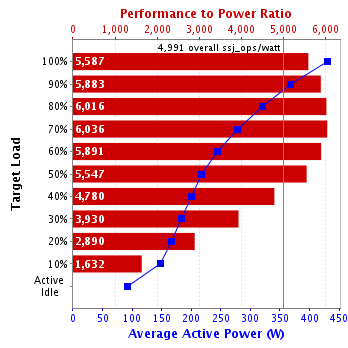

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	430	21.2
90%	368	21.1
80%	320	21.1
70%	279	21.0
60%	245	21.0
50%	217	21.0
40%	201	21.0
30%	184	21.0
20%	166	21.0
10%	147	21.0
Active Idle	92.7	21.0

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	21.0	101

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
