Huawei Technologies Co., Ltd RH2485 V2 | SPECpower_ssj2008 = Invalid overall ssj_ops/watt | ||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Jun 11, 2012 |
Hardware Availability: | Jun-2012 | Software Availability: | Dec-2011 | Publication: | Jun 28, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

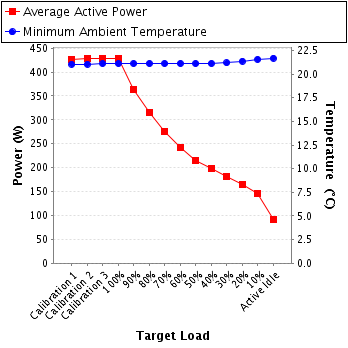

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 426 | 21.1 |
Calibration 2 | 429 | 21.1 |
Calibration 3 | 428 | 21.1 |
100% | 428 | 21.1 |
90% | 363 | 21.1 |
80% | 316 | 21.1 |
70% | 276 | 21.1 |
60% | 243 | 21.1 |
50% | 215 | 21.1 |
40% | 199 | 21.1 |
30% | 182 | 21.2 |
20% | 164 | 21.4 |
10% | 145 | 21.6 |
Active Idle | 92.3 | 21.7 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91K630156 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
Accredited by: | Calibration and Testing Center of CEPREI |
Calibration Label: | B11004997-0007 |
Date of Calibration: | 7-Jun-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | none |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Temperature@lert |
Model: | TM-STD30 |
Driver Version: | 3.1.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | The Temperature@lert-TM-STD30 used a 2 meters USB extension cable to connect to the controller. The Temperature@lert probe was placed in front of the main airflow inlet of the SUT less than 50mm. |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 226 | 300.0 | 1.91 | 2.0 | 0.989 | 426 | 0.6% |
Calibration 2 | 227 | 300.0 | 1.91 | 2.0 | 0.989 | 429 | 0.6% |
Calibration 3 | 228 | 300.0 | 1.90 | 2.0 | 0.989 | 428 | 0.6% |
100% | 227 | 300.0 | 1.90 | 2.0 | 0.989 | 428 | 0.6% |
90% | 228 | 300.0 | 1.62 | 2.0 | 0.985 | 363 | 0.6% |
80% | 227 | 300.0 | 1.42 | 2.0 | 0.982 | 316 | 0.6% |
70% | 228 | 300.0 | 1.24 | 2.0 | 0.976 | 276 | 0.7% |
60% | 228 | 300.0 | 1.09 | 1.0 | 0.981 | 243 | 0.6% |
50% | 228 | 300.0 | 0.956 | 1.0 | 0.985 | 215 | 0.6% |
40% | 229 | 300.0 | 0.884 | 1.0 | 0.983 | 199 | 0.6% |
30% | 229 | 300.0 | 0.809 | 1.0 | 0.980 | 182 | 0.6% |
20% | 230 | 300.0 | 0.734 | 1.0 | 0.974 | 164 | 0.6% |
10% | 230 | 300.0 | 0.655 | 1.0 | 0.966 | 145 | 0.7% |
Active Idle | 230 | 300.0 | 0.413 | 0.5 | 0.971 | 92.3 | 0.6% |
