SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Supermicro SYS-7047R-72RF | SPECpower_ssj2008 = 3,145 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | San Jose, CA, USA | Test Date: | May 26, 2012 |
| Hardware Availability: | Apr-2012 | Software Availability: | Jan-2012 | Publication: | Jun 28, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

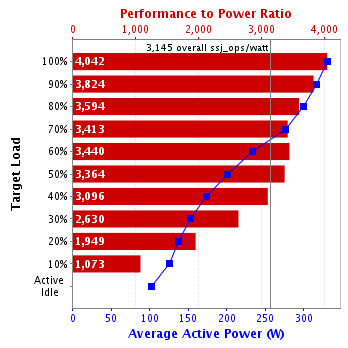

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.3% | 1,337,474 | 331 | 4,042 |
| 90% | 89.8% | 1,209,226 | 316 | 3,824 |
| 80% | 80.1% | 1,079,156 | 300 | 3,594 |
| 70% | 70.1% | 944,231 | 277 | 3,413 |
| 60% | 59.8% | 805,554 | 234 | 3,440 |
| 50% | 50.2% | 675,768 | 201 | 3,364 |
| 40% | 39.9% | 537,477 | 174 | 3,096 |
| 30% | 29.9% | 403,133 | 153 | 2,630 |
| 20% | 20.0% | 268,765 | 138 | 1,949 |
| 10% | 10.0% | 134,365 | 125 | 1,073 |
| Active Idle | 0 | 102 | 0 | |
| ∑ssj_ops / ∑power = | 3,145 | |||
| Set Identifier: | 7047R |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Supermicro |
| Model: | SYS-7047R-72RF |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon E5-2665 |
| CPU Characteristics: | 8-Core, 2.40GHz, 20MB L3 Cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 128 |
| # and size of DIMM: | 8 x 16384 MB |
| Memory Details: | 16GB 2Rx4 PC3-12800R ECC; A1, B1, C1, D1, E1, F1, G1, H1 Populated. |
| Power Supply Quantity and Rating (W): | 1 x 920 |
| Power Supply Details: | PWS-920P-1R |
| Disk Drive: | RAID0: 2 x FUJITSU 146 GB SASII 15KRPM (MBE2147RC) |
| Disk Controller: | Onboard LSI 2208 SAS Controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Dual-Port 1Gbit Network Controller. |
| NICs Enabled in Firmware / OS / Connected: | 1/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver |
| Operating System (OS): | Microsoft Windows Server Enterprise 2008 R2 SP1 |
| OS Version: | 6.1.7601 Build 7601 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_26-b03) |
| JVM Command-line Options: | -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy |
| JVM Affinity: | start /affinity [0xF,0x0F,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 2048 |
| JVM Maximum Heap (MB): | 2048 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 4/20/2012 Ver1.00 |
| Management Firmware Version: | 1.48 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Supermicro |
| Model: | SYS-1026T-6RFT+ |
| CPU Description: | Intel Xeon L5630 |
| Memory amount (GB): | 16.0 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2008 R2 Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.7.0_02-b13) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT210 |
| Serial Number: | 91J523226 |
| Connectivity: | COM1 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SE Laboratories |
| Calibration Label: | C56-0089 |
| Date of Calibration: | 07-Jan-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 331 | 22.1 |
| 90% | 316 | 22.9 |
| 80% | 300 | 22.4 |
| 70% | 277 | 21.7 |
| 60% | 234 | 21.0 |
| 50% | 201 | 20.3 |
| 40% | 174 | 20.6 |
| 30% | 153 | 20.9 |
| 20% | 138 | 21.7 |
| 10% | 125 | 22.6 |
| Active Idle | 102 | 22.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 20.3 | 26 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,338,387 | ||
| Calibration 2 | 1,348,076 | ||
| Calibration 3 | 1,345,955 | ||
| ssj_ops@calibrated=1,347,016 | |||
| 100% | 99.3% | 1,347,016 | 1,337,474 |
| 90% | 89.8% | 1,212,314 | 1,209,226 |
| 80% | 80.1% | 1,077,613 | 1,079,156 |
| 70% | 70.1% | 942,911 | 944,231 |
| 60% | 59.8% | 808,209 | 805,554 |
| 50% | 50.2% | 673,508 | 675,768 |
| 40% | 39.9% | 538,806 | 537,477 |
| 30% | 29.9% | 404,105 | 403,133 |
| 20% | 20.0% | 269,403 | 268,765 |
| 10% | 10.0% | 134,702 | 134,365 |
| Active Idle | 0 | 0 | |
