Acer Incorporated Acer AR585 F1 SPECpower_ssj2008 = 2,076 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 23, 2012
Hardware Availability: Sep-2011 Software Availability: Jun-2011 Publication: Jun 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 2,220,373 779 2,850
90% 90.0% 2,005,083 742 2,704
80% 80.0% 1,782,011 702 2,540
70% 70.0% 1,559,834 659 2,367
60% 59.9% 1,334,467 614 2,174
50% 50.0% 1,113,292 561 1,985
40% 40.1% 892,814 503 1,774
30% 29.9% 666,869 443 1,505
20% 19.9% 443,958 384 1,157
10% 10.0% 223,066 324 688
Active Idle 0 187 0
∑ssj_ops / ∑power = 2,076

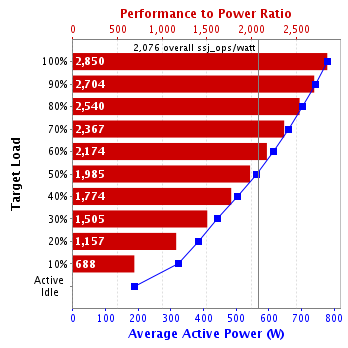

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6276
CPU Characteristics: 16 cores, 2.30 GHz (AMD Turbo CORE technology up to 3.2 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 32 x 8192 MB
Memory Details: 8GB 2Rx4 PC3-10600R; slots 1A, 1B, 2A, 2B, 3A, 3B, 4A and 4B are populated for each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 2 x 300GB SAS 15K RPM 3.5" HDD, Acer part #KH.300W1.025
Disk Controller: Flex IO USAS2H8iR add-on SAS RAID controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20110619_85080 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P6T0
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
  • Fan Speed Control Modes: Engery Saving /ES
    • Management Firmware Settings
    None
    System Under Test Notes
    Controller System
    Hardware
    Hardware Vendor: Acer Incorporated
    Model: Gateway GR160 F1
    CPU Description: Intel L5520
    Memory amount (GB): 3
    Software
    Operating System (OS): Windows Server 2003 R2, Enterprise Edition SP2
    JVM Vendor: Oracle Corporation
    JVM Version: Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode)
    CCS Version: 1.2.5
    Measurement Devices
    Power Analyzer pwr1
    Hardware Vendor: Yokogawa Electric International Pte. Ltd.
    Model: WT210
    Serial Number: 91H534921
    Connectivity: RS232
    Input Connection: Default
    Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
    Accredited by: ETC, Taiwan
    Calibration Label: 12-05-BAC-113-01
    Date of Calibration: 10-May-2012
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    PTDaemon Version: 1.4.1-1271fb18-20110728
    Setup Description: None
    Temperature Sensor temp1
    Hardware Vendor: Digi International Inc.
    Model: Watchport/H
    Driver Version: Watchport Virtual Port 5.0.0.0
    Connectivity: USB
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    Setup Description: None
    Notes
    None
    Aggregate Electrical and Environmental Data
    Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
    100% 779 24.0
    90% 742 24.1
    80% 702 24.3
    70% 659 24.4
    60% 614 24.6
    50% 561 25.1
    40% 503 25.1
    30% 443 24.9
    20% 384 25.0
    10% 324 24.9
    Active Idle 187 25.2
    Line Standard Minimum Temperature (°C) Elevation (m)
    220V / 60 Hz / 1 phase / 2 wires 24.0 132
    See the Power/Temperature Details Report for additional details.
    Aggregate Performance Data
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     2,196,704
    Calibration 2     2,228,884
    Calibration 3     2,227,254
    ssj_ops@calibrated=2,228,069
    100% 99.7% 2,228,069 2,220,373
    90% 90.0% 2,005,262 2,005,083
    80% 80.0% 1,782,455 1,782,011
    70% 70.0% 1,559,648 1,559,834
    60% 59.9% 1,336,841 1,334,467
    50% 50.0% 1,114,034 1,113,292
    40% 40.1% 891,228 892,814
    30% 29.9% 668,421 666,869
    20% 19.9% 445,614 443,958
    10% 10.0% 222,807 223,066
    Active Idle   0 0

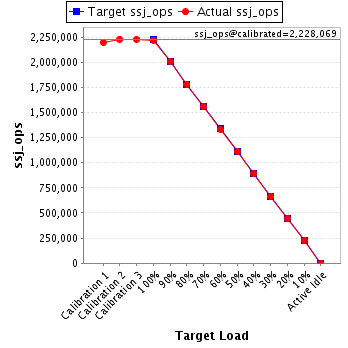

    Graph of results
    See the Host Performance Report for additional details.
