SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR585 F1 | SPECpower_ssj2008 = 2,136 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | May 22, 2012 |
| Hardware Availability: | Jun-2012 | Software Availability: | Jun-2011 | Publication: | Jun 21, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 2,299,931 | 786 | 2,925 |
| 90% | 89.9% | 2,075,410 | 747 | 2,777 |
| 80% | 80.2% | 1,851,168 | 710 | 2,607 |
| 70% | 69.9% | 1,613,866 | 668 | 2,416 |
| 60% | 60.1% | 1,387,288 | 619 | 2,241 |
| 50% | 50.2% | 1,158,434 | 564 | 2,055 |
| 40% | 40.0% | 924,363 | 504 | 1,833 |
| 30% | 29.9% | 690,750 | 446 | 1,550 |
| 20% | 20.1% | 463,482 | 388 | 1,195 |
| 10% | 10.0% | 231,293 | 326 | 710 |
| Active Idle | 0 | 186 | 0 | |
| ∑ssj_ops / ∑power = | 2,136 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR585 F1 |
| Form Factor: | 2U |
| CPU Name: | AMD Opteron 6278 |
| CPU Characteristics: | 16 cores, 2.40 GHz (AMD Turbo CORE technology up to 3.3 GHz) |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 64 cores, 4 chips, 16 cores/chip |
| Hardware Threads: | 64 (1 / core) |
| CPU(s) Orderable: | 2,4 chips |
| Primary Cache: | 512 KB I + 256 KB D on chip per chip |
| Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
| Tertiary Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
| Other Cache: | None |
| Memory Amount (GB): | 256 |
| # and size of DIMM: | 32 x 8192 MB |
| Memory Details: | 8GB 2Rx4 PC3-10600R; Slots 1A, 1B, 2A, 2B, 3A, 3B, 4A and 4B are populated for each processor |
| Power Supply Quantity and Rating (W): | 1 x 1400 |
| Power Supply Details: | PWS-1K41F-1R |
| Disk Drive: | 2 x 300GB SAS 15K RPM 3.5" HDD, Acer part #KH.300W1.025 |
| Disk Controller: | Flex IO USAS2H8iR add-on SAS RAID controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x dual-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20110619_85080 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp |
| JVM Affinity: | start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000] |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P6T0 |
| Management Firmware Version: | 1.00 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GR160 F1 |
| CPU Description: | Intel L5520 |
| Memory amount (GB): | 3 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 12-05-BAC-113-01 |
| Date of Calibration: | 10-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 786 | 23.6 |
| 90% | 747 | 23.4 |
| 80% | 710 | 23.6 |
| 70% | 668 | 24.2 |
| 60% | 619 | 24.3 |
| 50% | 564 | 24.0 |
| 40% | 504 | 23.6 |
| 30% | 446 | 23.6 |
| 20% | 388 | 24.1 |
| 10% | 326 | 24.6 |
| Active Idle | 186 | 24.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 23.4 | 132 |

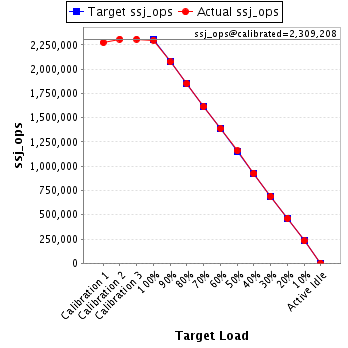

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 2,274,304 | ||
| Calibration 2 | 2,309,274 | ||
| Calibration 3 | 2,309,142 | ||
| ssj_ops@calibrated=2,309,208 | |||
| 100% | 99.6% | 2,309,208 | 2,299,931 |
| 90% | 89.9% | 2,078,287 | 2,075,410 |
| 80% | 80.2% | 1,847,366 | 1,851,168 |
| 70% | 69.9% | 1,616,445 | 1,613,866 |
| 60% | 60.1% | 1,385,525 | 1,387,288 |
| 50% | 50.2% | 1,154,604 | 1,158,434 |
| 40% | 40.0% | 923,683 | 924,363 |
| 30% | 29.9% | 692,762 | 690,750 |
| 20% | 20.1% | 461,842 | 463,482 |
| 10% | 10.0% | 230,921 | 231,293 |
| Active Idle | 0 | 0 | |
