SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R820 (Intel Xeon E5-4650L, 2.60 GHz) | SPECpower_ssj2008 = 4,894 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | May 1, 2012 |
| Hardware Availability: | Jun-2012 | Software Availability: | Dec-2011 | Publication: | May 30, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

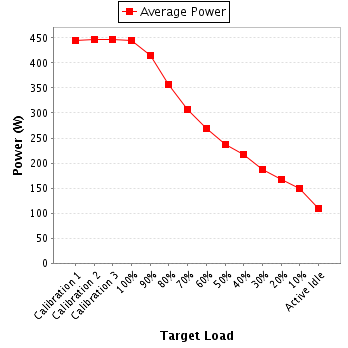

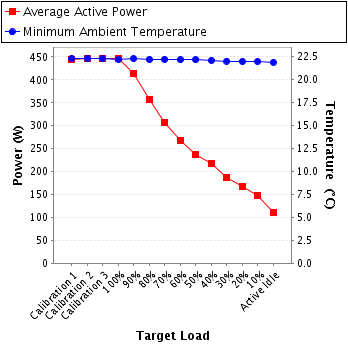

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 444 | 22.3 |
| Calibration 2 | 447 | 22.3 |
| Calibration 3 | 447 | 22.2 |
| 100% | 446 | 22.2 |
| 90% | 414 | 22.2 |
| 80% | 358 | 22.2 |
| 70% | 307 | 22.2 |
| 60% | 268 | 22.1 |
| 50% | 237 | 22.1 |
| 40% | 218 | 22.1 |
| 30% | 188 | 22.0 |
| 20% | 167 | 21.9 |
| 10% | 149 | 21.9 |
| Active Idle | 110 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91K308530 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 5402017 |
| Date of Calibration: | 20-Oct-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.30.02 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.20 | 5.0 | 0.974 | 444 | 0.5% |
| Calibration 2 | 208 | 300.0 | 2.21 | 5.0 | 0.974 | 447 | 0.5% |
| Calibration 3 | 208 | 300.0 | 2.21 | 5.0 | 0.974 | 447 | 0.5% |
| 100% | 208 | 300.0 | 2.20 | 5.0 | 0.974 | 446 | 0.5% |
| 90% | 208 | 300.0 | 2.06 | 5.0 | 0.970 | 414 | 0.5% |
| 80% | 208 | 300.0 | 1.79 | 2.0 | 0.961 | 358 | 0.3% |
| 70% | 208 | 300.0 | 1.55 | 2.0 | 0.954 | 307 | 0.4% |
| 60% | 208 | 300.0 | 1.36 | 2.0 | 0.946 | 268 | 0.4% |
| 50% | 208 | 300.0 | 1.22 | 2.0 | 0.938 | 237 | 0.4% |
| 40% | 208 | 300.0 | 1.13 | 2.0 | 0.931 | 218 | 0.5% |
| 30% | 208 | 300.0 | 0.985 | 1.0 | 0.920 | 188 | 0.3% |
| 20% | 208 | 300.0 | 0.883 | 1.0 | 0.910 | 167 | 0.4% |
| 10% | 208 | 300.0 | 0.795 | 1.0 | 0.900 | 149 | 0.4% |
| Active Idle | 208 | 300.0 | 0.608 | 1.0 | 0.870 | 110 | 0.5% |
