Huawei Technologies Co., Ltd RH2285 V2 SPECpower_ssj2008 = 4,117 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: May 15, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 205 23.0
Calibration 2 207 23.0
Calibration 3 207 23.1
100% 207 23.1
90% 181 23.2
80% 157 23.3
70% 139 23.4
60% 122 23.4
50% 108 23.4
40% 99.5 23.1
30% 91.9 22.9
20% 84.2 22.7
10% 76.6 22.4
Active Idle 55.1 22.2

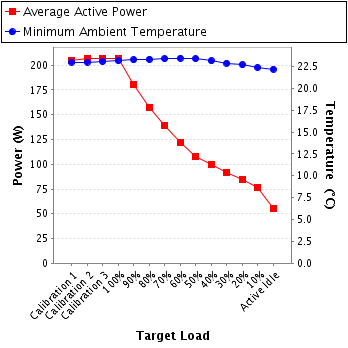

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K630156
Connectivity: COM
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B11004997-0007
Date of Calibration: 20-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: none
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 24 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 300.0 0.924 1.0 0.983 205 0.6%
Calibration 2 225 300.0 0.935 1.0 0.983 207 0.6%
Calibration 3 225 300.0 0.934 1.0 0.983 207 0.6%
100% 225 300.0 0.938 1.0 0.983 207 0.6%
90% 224 300.0 0.827 1.0 0.979 181 0.6%
80% 225 300.0 0.708 1.0 0.988 157 0.6%
70% 225 300.0 0.627 1.0 0.987 139 0.6%
60% 225 300.0 0.554 1.0 0.982 122 0.7%
50% 225 300.0 0.492 1.0 0.977 108 0.7%
40% 225 300.0 0.454 1.0 0.973 99.5 0.7%
30% 225 300.0 0.421 0.5 0.968 91.9 0.6%
20% 226 300.0 0.388 0.5 0.961 84.2 0.6%
10% 225 300.0 0.357 0.5 0.953 76.6 0.7%
Active Idle 225 300.0 0.267 0.5 0.917 55.1 0.8%

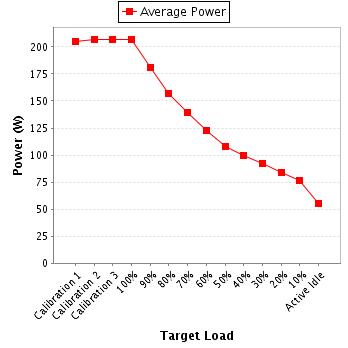

Power details for pwr1
