Fujitsu PRIMERGY TX120 S3p (Intel Xeon E3-1265LV2) ssj_ops@100% = 420,255
ssj_ops@100% per JVM = 105,064
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: May 1, 2012
Hardware Availability: May-2012 Software Availability: Feb-2012 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     420,890
Calibration 2     421,397
Calibration 3     420,612
ssj_ops@calibrated=421,005
100% 99.8% 421,005 420,255
90% 89.7% 378,904 377,633
80% 80.4% 336,804 338,646
70% 70.1% 294,703 295,048
60% 60.1% 252,603 253,003
50% 50.0% 210,502 210,650
40% 39.9% 168,402 168,141
30% 30.1% 126,301 126,866
20% 20.2% 84,201 85,085
10% 10.1% 42,100 42,441
Active Idle   0 0
Graph of results
System Under Test
Set: 'TX120 S3p'
Set Identifier: TX120 S3p
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX120 S3p (Intel Xeon E3-1265LV2)
Form Factor: Tower
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-12800E ECC CL11; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 250
Power Supply Details: Fujitsu Technology Solutions S26113-E565-V70-01
Disk Drive: 1 x 32GB, SSD, 2.5" SATA, S26361-F3298-E320
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82574L and 1 x Intel 82579LM Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise with SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_31
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0x03,0x0C,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.8.0
Management Firmware Version: 6.50A
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-RPMHJC10L3A.001 104,743
WIN-RPMHJC10L3A.002 105,959
WIN-RPMHJC10L3A.003 105,721
WIN-RPMHJC10L3A.004 103,832
ssj_ops@100% 420,255
ssj_ops@100% per JVM 105,064

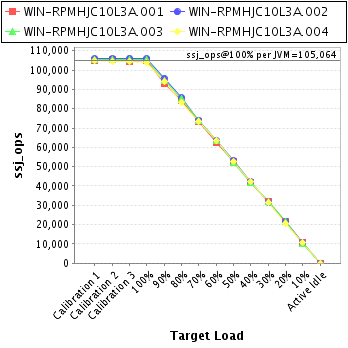

Graph of per-instance results
JVM 'WIN-RPMHJC10L3A.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,994
Calibration 2     105,366
Calibration 3     104,666
ssj_ops@calibrated=105,016
100% 99.7% 105,016 104,743
90% 88.8% 94,515 93,219
80% 80.2% 84,013 84,201
70% 69.9% 73,511 73,429
60% 59.5% 63,010 62,451
50% 50.0% 52,508 52,526
40% 39.8% 42,007 41,822
30% 30.3% 31,505 31,802
20% 20.4% 21,003 21,438
10% 10.2% 10,502 10,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

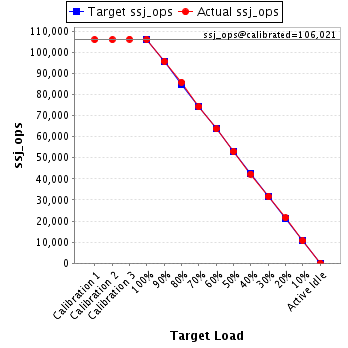

JVM 'WIN-RPMHJC10L3A.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,919
Calibration 2     105,885
Calibration 3     106,156
ssj_ops@calibrated=106,021
100% 99.9% 106,021 105,959
90% 90.2% 95,419 95,661
80% 80.9% 84,817 85,731
70% 69.9% 74,214 74,151
60% 60.1% 63,612 63,671
50% 50.0% 53,010 52,971
40% 39.9% 42,408 42,280
30% 29.9% 31,806 31,648
20% 20.3% 21,204 21,512
10% 10.1% 10,602 10,671
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

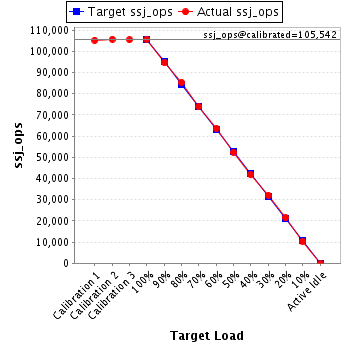

JVM 'WIN-RPMHJC10L3A.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,232
Calibration 2     105,687
Calibration 3     105,398
ssj_ops@calibrated=105,542
100% 100.2% 105,542 105,721
90% 89.7% 94,988 94,691
80% 80.9% 84,434 85,364
70% 70.0% 73,880 73,868
60% 60.2% 63,325 63,586
50% 49.6% 52,771 52,393
40% 39.7% 42,217 41,881
30% 30.4% 31,663 32,039
20% 20.3% 21,108 21,462
10% 9.9% 10,554 10,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPMHJC10L3A.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,745
Calibration 2     104,459
Calibration 3     104,391
ssj_ops@calibrated=104,425
100% 99.4% 104,425 103,832
90% 90.1% 93,983 94,061
80% 79.8% 83,540 83,350
70% 70.5% 73,098 73,600
60% 60.6% 62,655 63,294
50% 50.5% 52,213 52,759
40% 40.4% 41,770 42,158
30% 30.0% 31,328 31,377
20% 19.8% 20,885 20,673
10% 10.2% 10,443 10,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
