Huawei Technologies Co., Ltd RH2288 V2 SPECpower_ssj2008 = 4,846 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 25, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: May 16, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 161 21.6
Calibration 2 161 21.6
Calibration 3 161 21.6
100% 161 21.6
90% 146 21.6
80% 131 21.6
70% 117 21.7
60% 106 21.8
50% 100 21.8
40% 94.2 21.8
30% 87.3 21.8
20% 80.2 21.9
10% 72.5 21.9
Active Idle 52.2 21.9

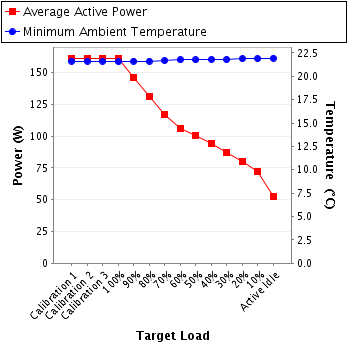

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91F522082
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB11003462-0020
Date of Calibration: 4-May-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: none
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 224 300.0 0.738 2.0 0.976 161 0.5%
Calibration 2 224 300.0 0.739 2.0 0.976 161 0.5%
Calibration 3 223 300.0 0.740 2.0 0.976 161 0.5%
100% 224 300.0 0.739 2.0 0.976 161 0.5%
90% 224 300.0 0.671 1.0 0.971 146 0.4%
80% 224 300.0 0.605 1.0 0.966 131 0.4%
70% 224 300.0 0.544 1.0 0.960 117 0.4%
60% 224 300.0 0.496 1.0 0.954 106 0.4%
50% 225 300.0 0.469 1.0 0.950 100 0.5%
40% 226 300.0 0.442 0.5 0.945 94.2 0.3%
30% 225 300.0 0.413 0.5 0.938 87.3 0.3%
20% 226 300.0 0.381 0.5 0.930 80.2 0.4%
10% 227 300.0 0.347 0.5 0.919 72.5 0.4%
Active Idle 227 300.0 0.254 0.5 0.906 52.2 0.5%

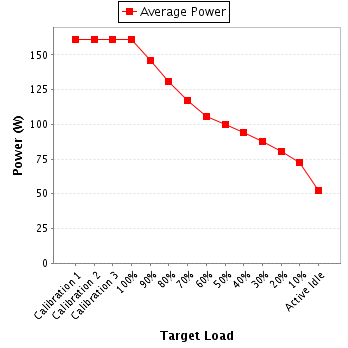

Power details for pwr1
