SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge T620 (Intel Xeon E5-2660, 2.2 GHz) | SPECpower_ssj2008 = 4,929 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Mar 27, 2012 |
| Hardware Availability: | Mar-2012 | Software Availability: | Dec-2011 | Publication: | May 2, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

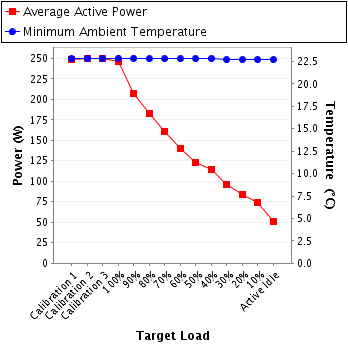

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 249 | 22.8 |
| Calibration 2 | 250 | 22.8 |
| Calibration 3 | 250 | 22.8 |
| 100% | 246 | 22.9 |
| 90% | 207 | 22.9 |
| 80% | 183 | 22.8 |
| 70% | 161 | 22.8 |
| 60% | 140 | 22.8 |
| 50% | 123 | 22.8 |
| 40% | 115 | 22.8 |
| 30% | 96.4 | 22.7 |
| 20% | 84.4 | 22.7 |
| 10% | 74.3 | 22.7 |
| Active Idle | 51.3 | 22.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91HB22770 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 5182274 |
| Date of Calibration: | 23-Apr-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.30.02 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 1.23 | 2.0 | 0.983 | 249 | 0.4% |
| Calibration 2 | 206 | 300.0 | 1.22 | 2.0 | 0.991 | 250 | 0.4% |
| Calibration 3 | 206 | 300.0 | 1.23 | 2.0 | 0.984 | 250 | 0.4% |
| 100% | 207 | 300.0 | 1.21 | 2.0 | 0.983 | 246 | 0.4% |
| 90% | 207 | 300.0 | 1.03 | 2.0 | 0.977 | 207 | 0.4% |
| 80% | 207 | 300.0 | 0.907 | 2.0 | 0.976 | 183 | 0.5% |
| 70% | 207 | 300.0 | 0.801 | 1.0 | 0.974 | 161 | 0.3% |
| 60% | 207 | 300.0 | 0.700 | 1.0 | 0.967 | 140 | 0.4% |
| 50% | 207 | 300.0 | 0.627 | 1.0 | 0.952 | 123 | 0.4% |
| 40% | 207 | 300.0 | 0.590 | 1.0 | 0.944 | 115 | 0.4% |
| 30% | 207 | 300.0 | 0.499 | 0.5 | 0.935 | 96.4 | 0.3% |
| 20% | 207 | 300.0 | 0.442 | 0.5 | 0.923 | 84.4 | 0.4% |
| 10% | 207 | 300.0 | 0.394 | 0.5 | 0.911 | 74.3 | 0.4% |
| Active Idle | 207 | 300.0 | 0.293 | 0.5 | 0.846 | 51.3 | 0.5% |
