SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R720 (Intel Xeon E5-2660, 2.2 GHz) | SPECpower_ssj2008 = 4,836 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Mar 26, 2012 |
| Hardware Availability: | Mar-2012 | Software Availability: | Dec-2011 | Publication: | May 2, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

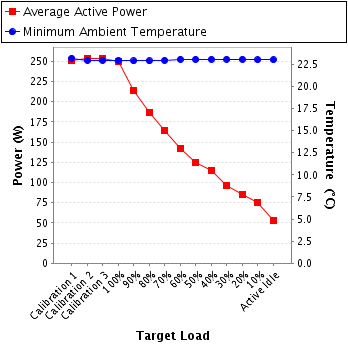

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 251 | 23.2 |
| Calibration 2 | 254 | 22.9 |
| Calibration 3 | 254 | 22.9 |
| 100% | 250 | 22.9 |
| 90% | 214 | 22.9 |
| 80% | 187 | 22.9 |
| 70% | 164 | 22.9 |
| 60% | 142 | 23.1 |
| 50% | 124 | 23.1 |
| 40% | 114 | 23.1 |
| 30% | 96.7 | 23.1 |
| 20% | 85.0 | 23.1 |
| 10% | 75.1 | 23.0 |
| Active Idle | 52.7 | 23.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91HB22770 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 5182274 |
| Date of Calibration: | 23-Apr-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.30.02 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of main airflow intake |

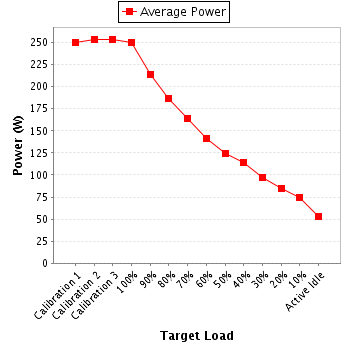

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 1.23 | 2.0 | 0.984 | 251 | 0.4% |
| Calibration 2 | 207 | 300.0 | 1.25 | 2.0 | 0.984 | 254 | 0.4% |
| Calibration 3 | 207 | 300.0 | 1.23 | 2.0 | 0.992 | 254 | 0.4% |
| 100% | 207 | 300.0 | 1.22 | 2.0 | 0.984 | 250 | 0.4% |
| 90% | 207 | 300.0 | 1.06 | 2.0 | 0.975 | 214 | 0.4% |
| 80% | 207 | 300.0 | 0.928 | 2.0 | 0.971 | 187 | 0.5% |
| 70% | 207 | 300.0 | 0.820 | 1.0 | 0.966 | 164 | 0.3% |
| 60% | 207 | 300.0 | 0.714 | 1.0 | 0.959 | 142 | 0.4% |
| 50% | 207 | 300.0 | 0.629 | 1.0 | 0.956 | 124 | 0.4% |
| 40% | 207 | 300.0 | 0.583 | 1.0 | 0.950 | 114 | 0.4% |
| 30% | 208 | 300.0 | 0.495 | 0.5 | 0.943 | 96.7 | 0.3% |
| 20% | 208 | 300.0 | 0.443 | 0.5 | 0.924 | 85.0 | 0.4% |
| 10% | 208 | 300.0 | 0.400 | 0.5 | 0.903 | 75.1 | 0.4% |
| Active Idle | 208 | 300.0 | 0.303 | 0.5 | 0.837 | 52.7 | 0.5% |
