SPECpower_ssj2008 Host 'WIN-K1IRTERJUTK' Performance Report

SPECpower_ssj2008

Host 'WIN-K1IRTERJUTK' Performance Report

Fujitsu PRIMERGY RX200 S7 (Intel Xeon E5-2660)			ssj_ops@100% = 1,338,554 ssj_ops@100% per JVM = 83,660
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Paderborn, NRW, Germany	Test Date:	Apr 2, 2012
Hardware Availability:	Mar-2012	Software Availability:	Dec-2011	Publication:	Apr 25, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

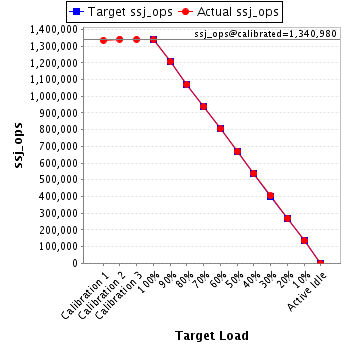

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,335,286
Calibration 2			1,341,727
Calibration 3			1,340,233
ssj_ops@calibrated=1,340,980
100%	99.8%	1,340,980	1,338,554
90%	90.0%	1,206,882	1,207,159
80%	79.9%	1,072,784	1,070,873
70%	69.9%	938,686	937,737
60%	60.0%	804,588	804,194
50%	50.0%	670,490	670,599
40%	40.1%	536,392	538,151
30%	30.1%	402,294	403,901
20%	20.0%	268,196	268,570
10%	10.0%	134,098	134,658
Active Idle		0	0

System Under Test

Set: 'RX200 S7'

Set Identifier:	RX200 S7
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY RX200 S7 (Intel Xeon E5-2660)
Form Factor:	1U
CPU Name:	Intel Xeon E5-2660
CPU Characteristics:	8-Core, 2.20GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz):	2200
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1, 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	32
# and size of DIMM:	8 x 4096 MB
Memory Details:	4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W):	1 x 450
Power Supply Details:	Fujitsu Technology Solutions S26113-E575-E10
Disk Drive:	1 x 32GB, SSD, 2.5" SATA, S26361-F3298-E320
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version:	Version 6.1.7601 Service Pack 1 Build 7601
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC00000000]
JVM Instances:	16
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	R1.4.0
Management Firmware Version:	6.48
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set "Adjacent Sector Prefetch = Disable" in BIOS.
Set "Hardware Prefetch = Disable" in BIOS.
Set "DCU Streamer Prefetch = Disable" in BIOS.
Set "DDR Performance = Low-Voltage optimized" in BIOS. (effective memory frequency = 1333MHz)
Set "USB Configuration = Disable External Ports" in BIOS.
Set "QPI Link Speed = 6.4GT/s" in BIOS.
Set "P-State coordination = SW_ANY" in BIOS.
Set "Intel Virtualization Technology = Disable" in BIOS.
Set "ASPM Support = Auto" in BIOS.
Set "LAN Port 2 = Disable" in BIOS.

Management Firmware Settings

None

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.

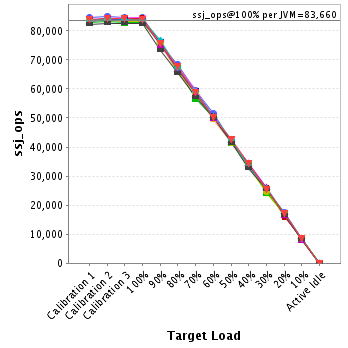

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-K1IRTERJUTK.001	83,703
WIN-K1IRTERJUTK.002	84,606
WIN-K1IRTERJUTK.003	84,300
WIN-K1IRTERJUTK.004	82,826
WIN-K1IRTERJUTK.005	84,629
WIN-K1IRTERJUTK.006	83,252
WIN-K1IRTERJUTK.007	83,715
WIN-K1IRTERJUTK.008	83,898
WIN-K1IRTERJUTK.009	84,293
WIN-K1IRTERJUTK.010	83,272
WIN-K1IRTERJUTK.011	83,004
WIN-K1IRTERJUTK.012	83,242
WIN-K1IRTERJUTK.013	83,577
WIN-K1IRTERJUTK.014	83,788
WIN-K1IRTERJUTK.015	82,411
WIN-K1IRTERJUTK.016	84,039
ssj_ops@100%	1,338,554
ssj_ops@100% per JVM	83,660

JVM 'WIN-K1IRTERJUTK.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,402
Calibration 2			83,595
Calibration 3			83,597
ssj_ops@calibrated=83,596
100%	100.1%	83,596	83,703
90%	90.1%	75,236	75,298
80%	79.0%	66,877	66,044
70%	70.2%	58,517	58,697
60%	59.9%	50,158	50,079
50%	50.6%	41,798	42,264
40%	40.1%	33,438	33,561
30%	29.6%	25,079	24,782
20%	19.9%	16,719	16,622
10%	10.1%	8,360	8,446
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			84,565
Calibration 2			84,987
Calibration 3			84,560
ssj_ops@calibrated=84,773
100%	99.8%	84,773	84,606
90%	89.0%	76,296	75,438
80%	80.7%	67,819	68,448
70%	70.2%	59,341	59,485
60%	60.6%	50,864	51,398
50%	49.4%	42,387	41,881
40%	40.4%	33,909	34,286
30%	29.6%	25,432	25,130
20%	20.5%	16,955	17,348
10%	10.0%	8,477	8,491
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,625
Calibration 2			83,696
Calibration 3			84,018
ssj_ops@calibrated=83,857
100%	100.5%	83,857	84,300
90%	89.0%	75,471	74,647
80%	80.2%	67,085	67,242
70%	69.6%	58,700	58,366
60%	60.3%	50,314	50,532
50%	50.0%	41,928	41,954
40%	39.6%	33,543	33,221
30%	30.4%	25,157	25,508
20%	20.1%	16,771	16,870
10%	9.8%	8,386	8,216
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

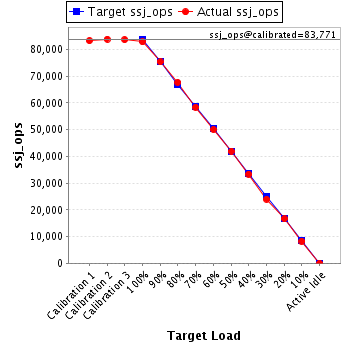

JVM 'WIN-K1IRTERJUTK.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,266
Calibration 2			83,876
Calibration 3			83,667
ssj_ops@calibrated=83,771
100%	98.9%	83,771	82,826
90%	90.0%	75,394	75,360
80%	80.8%	67,017	67,689
70%	69.8%	58,640	58,433
60%	59.8%	50,263	50,058
50%	50.1%	41,886	41,928
40%	39.9%	33,509	33,394
30%	28.6%	25,131	23,990
20%	19.9%	16,754	16,632
10%	9.9%	8,377	8,262
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			84,023
Calibration 2			84,174
Calibration 3			84,728
ssj_ops@calibrated=84,451
100%	100.2%	84,451	84,629
90%	89.7%	76,006	75,737
80%	80.3%	67,561	67,820
70%	70.6%	59,116	59,662
60%	59.9%	50,671	50,562
50%	49.7%	42,225	42,006
40%	40.5%	33,780	34,234
30%	30.5%	25,335	25,774
20%	19.5%	16,890	16,455
10%	10.3%	8,445	8,691
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,212
Calibration 2			83,521
Calibration 3			83,733
ssj_ops@calibrated=83,627
100%	99.6%	83,627	83,252
90%	90.4%	75,264	75,581
80%	79.6%	66,902	66,591
70%	70.1%	58,539	58,621
60%	60.2%	50,176	50,319
50%	50.1%	41,814	41,878
40%	39.9%	33,451	33,406
30%	30.2%	25,088	25,267
20%	19.9%	16,725	16,658
10%	10.0%	8,363	8,325
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,476
Calibration 2			83,607
Calibration 3			83,177
ssj_ops@calibrated=83,392
100%	100.4%	83,392	83,715
90%	90.0%	75,053	75,069
80%	79.7%	66,714	66,466
70%	70.4%	58,374	58,692
60%	59.0%	50,035	49,239
50%	49.8%	41,696	41,544
40%	40.1%	33,357	33,411
30%	30.3%	25,018	25,233
20%	20.3%	16,678	16,890
10%	10.1%	8,339	8,421
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,500
Calibration 2			83,852
Calibration 3			84,045
ssj_ops@calibrated=83,949
100%	99.9%	83,949	83,898
90%	90.6%	75,554	76,047
80%	79.3%	67,159	66,578
70%	70.4%	58,764	59,082
60%	59.9%	50,369	50,309
50%	50.0%	41,974	41,998
40%	40.1%	33,580	33,630
30%	30.3%	25,185	25,400
20%	20.1%	16,790	16,845
10%	10.0%	8,395	8,370
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,838
Calibration 2			83,951
Calibration 3			84,090
ssj_ops@calibrated=84,020
100%	100.3%	84,020	84,293
90%	90.1%	75,618	75,676
80%	78.9%	67,216	66,293
70%	69.8%	58,814	58,664
60%	60.2%	50,412	50,595
50%	50.0%	42,010	42,051
40%	39.8%	33,608	33,437
30%	30.6%	25,206	25,696
20%	19.2%	16,804	16,093
10%	10.2%	8,402	8,579
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,503
Calibration 2			84,319
Calibration 3			84,040
ssj_ops@calibrated=84,179
100%	98.9%	84,179	83,272
90%	90.4%	75,761	76,104
80%	79.8%	67,343	67,185
70%	70.1%	58,926	59,031
60%	59.6%	50,508	50,146
50%	49.3%	42,090	41,531
40%	40.1%	33,672	33,722
30%	30.3%	25,254	25,548
20%	20.3%	16,836	17,086
10%	10.3%	8,418	8,633
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

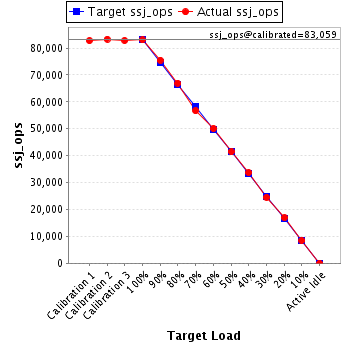

JVM 'WIN-K1IRTERJUTK.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			82,735
Calibration 2			83,305
Calibration 3			82,813
ssj_ops@calibrated=83,059
100%	99.9%	83,059	83,004
90%	90.9%	74,753	75,494
80%	80.6%	66,447	66,970
70%	68.2%	58,141	56,645
60%	60.3%	49,835	50,074
50%	49.9%	41,530	41,464
40%	40.6%	33,224	33,687
30%	29.5%	24,918	24,519
20%	20.4%	16,612	16,923
10%	10.2%	8,306	8,475
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

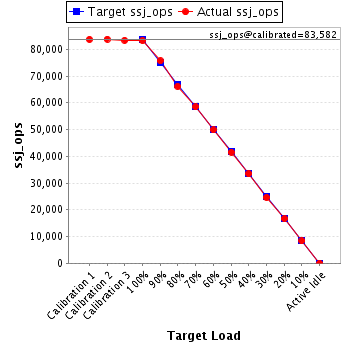

JVM 'WIN-K1IRTERJUTK.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,713
Calibration 2			83,789
Calibration 3			83,375
ssj_ops@calibrated=83,582
100%	99.6%	83,582	83,242
90%	90.6%	75,224	75,707
80%	79.1%	66,866	66,135
70%	70.0%	58,507	58,476
60%	59.6%	50,149	49,837
50%	49.7%	41,791	41,522
40%	40.0%	33,433	33,423
30%	29.4%	25,075	24,584
20%	19.9%	16,716	16,662
10%	10.0%	8,358	8,379
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,060
Calibration 2			83,820
Calibration 3			83,526
ssj_ops@calibrated=83,673
100%	99.9%	83,673	83,577
90%	90.0%	75,306	75,295
80%	80.1%	66,938	66,990
70%	70.0%	58,571	58,584
60%	60.0%	50,204	50,178
50%	50.1%	41,836	41,926
40%	40.9%	33,469	34,232
30%	31.1%	25,102	25,997
20%	19.9%	16,735	16,678
10%	9.7%	8,367	8,100
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,388
Calibration 2			84,393
Calibration 3			83,887
ssj_ops@calibrated=84,140
100%	99.6%	84,140	83,788
90%	91.3%	75,726	76,788
80%	79.9%	67,312	67,212
70%	70.2%	58,898	59,089
60%	60.1%	50,484	50,565
50%	50.7%	42,070	42,645
40%	39.7%	33,656	33,395
30%	30.6%	25,242	25,768
20%	20.2%	16,828	16,966
10%	10.0%	8,414	8,398
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			82,182
Calibration 2			82,582
Calibration 3			82,643
ssj_ops@calibrated=82,612
100%	99.8%	82,612	82,411
90%	88.7%	74,351	73,247
80%	79.4%	66,090	65,610
70%	69.4%	57,829	57,358
60%	60.6%	49,567	50,065
50%	50.1%	41,306	41,429
40%	39.6%	33,045	32,698
30%	30.8%	24,784	25,475
20%	20.1%	16,522	16,618
10%	10.0%	8,261	8,246
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

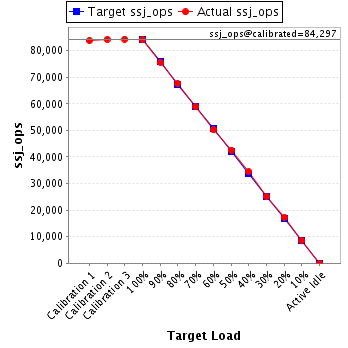

JVM 'WIN-K1IRTERJUTK.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,798
Calibration 2			84,261
Calibration 3			84,333
ssj_ops@calibrated=84,297
100%	99.7%	84,297	84,039
90%	89.8%	75,868	75,671
80%	80.2%	67,438	67,600
70%	69.8%	59,008	58,854
60%	59.6%	50,578	50,237
50%	50.5%	42,149	42,575
40%	40.8%	33,719	34,413
30%	29.9%	25,289	25,230
20%	20.4%	16,859	17,225
10%	10.2%	8,430	8,628
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
