SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R620 (Intel Xeon E5-2660, 2.2 GHz) | SPECpower_ssj2008 = 4,525 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell | Test Location: | Round Rock, TX, USA | Test Date: | Mar 15, 2012 |
| Hardware Availability: | Apr-2012 | Software Availability: | Dec-2011 | Publication: | Apr 4, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

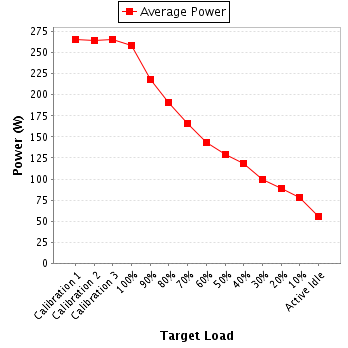

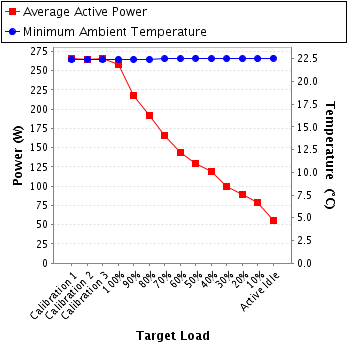

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 266 | 22.4 |
| Calibration 2 | 265 | 22.4 |
| Calibration 3 | 265 | 22.4 |
| 100% | 258 | 22.4 |
| 90% | 218 | 22.4 |
| 80% | 191 | 22.4 |
| 70% | 166 | 22.5 |
| 60% | 144 | 22.5 |
| 50% | 129 | 22.6 |
| 40% | 119 | 22.5 |
| 30% | 99.4 | 22.5 |
| 20% | 89.0 | 22.5 |
| 10% | 78.6 | 22.5 |
| Active Idle | 56.1 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91HB22770 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 5182274 |
| Date of Calibration: | 23-Apr-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.30.02 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.30 | 2.0 | 0.986 | 266 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.28 | 2.0 | 0.993 | 265 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.29 | 2.0 | 0.986 | 265 | 0.4% |
| 100% | 208 | 300.0 | 1.26 | 2.0 | 0.985 | 258 | 0.4% |
| 90% | 208 | 300.0 | 1.07 | 2.0 | 0.981 | 218 | 0.4% |
| 80% | 209 | 300.0 | 0.938 | 2.0 | 0.978 | 191 | 0.5% |
| 70% | 209 | 300.0 | 0.819 | 1.0 | 0.974 | 166 | 0.3% |
| 60% | 209 | 300.0 | 0.713 | 1.0 | 0.969 | 144 | 0.4% |
| 50% | 209 | 300.0 | 0.644 | 1.0 | 0.961 | 129 | 0.4% |
| 40% | 209 | 300.0 | 0.598 | 1.0 | 0.955 | 119 | 0.4% |
| 30% | 210 | 300.0 | 0.499 | 0.5 | 0.952 | 99.4 | 0.3% |
| 20% | 210 | 300.0 | 0.451 | 0.5 | 0.942 | 89.0 | 0.3% |
| 10% | 210 | 300.0 | 0.403 | 0.5 | 0.928 | 78.6 | 0.4% |
| Active Idle | 210 | 300.0 | 0.305 | 0.5 | 0.876 | 56.1 | 0.5% |
