SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR385 F1 | SPECpower_ssj2008 = 2,812 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Feb 14, 2011 |
| Hardware Availability: | Jan-2012 | Software Availability: | Dec-2010 | Publication: | Apr 4, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

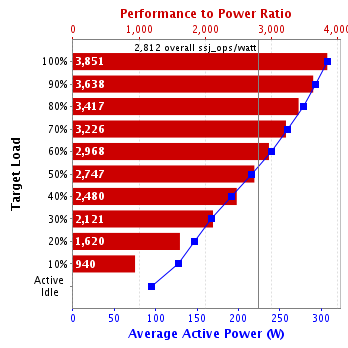

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 1,183,480 | 307 | 3,851 |
| 90% | 89.8% | 1,067,791 | 294 | 3,638 |
| 80% | 80.1% | 952,377 | 279 | 3,417 |
| 70% | 70.2% | 834,538 | 259 | 3,226 |
| 60% | 59.8% | 711,865 | 240 | 2,968 |
| 50% | 49.9% | 593,482 | 216 | 2,747 |
| 40% | 40.0% | 475,542 | 192 | 2,480 |
| 30% | 29.9% | 355,961 | 168 | 2,121 |
| 20% | 20.0% | 238,235 | 147 | 1,620 |
| 10% | 10.1% | 119,718 | 127 | 940 |
| Active Idle | 0 | 94.9 | 0 | |
| ∑ssj_ops / ∑power = | 2,812 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR385 F1 |
| Form Factor: | 2U |
| CPU Name: | AMD Opteron 6276 |
| CPU Characteristics: | 16 cores, 2.30 GHz (AMD Turbo CORE technology up to 3.20 GHz) |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 32 cores, 2 chips, 16 cores/chip |
| Hardware Threads: | 32 (1 / core) |
| CPU(s) Orderable: | 2,4 chips |
| Primary Cache: | 512 KB I + 256 KB D on chip per core |
| Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
| Tertiary Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
| Other Cache: | None |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 8 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, 3A and 4A populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 720 |
| Power Supply Details: | PWS-721P-1R |
| Disk Drive: | 1 x 300GB SATA 10K RPM 2.5" HDD, Acer part #TC.32700.088 |
| Disk Controller: | onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x dual-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1400m -Xms1600m -Xmx1600m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp |
| JVM Affinity: | start /affinity [0x3,0xC,0x30,0xc0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000] |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P03T01 |
| Management Firmware Version: | 1.40 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR160 F1 |
| CPU Description: | Intel L5520 |
| Memory amount (GB): | 3 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-205-07 |
| Date of Calibration: | 16-May-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 307 | 24.0 |
| 90% | 294 | 24.1 |
| 80% | 279 | 24.1 |
| 70% | 259 | 23.7 |
| 60% | 240 | 23.8 |
| 50% | 216 | 24.1 |
| 40% | 192 | 24.0 |
| 30% | 168 | 23.7 |
| 20% | 147 | 23.9 |
| 10% | 127 | 24.3 |
| Active Idle | 94.9 | 23.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 23.4 | 132 |

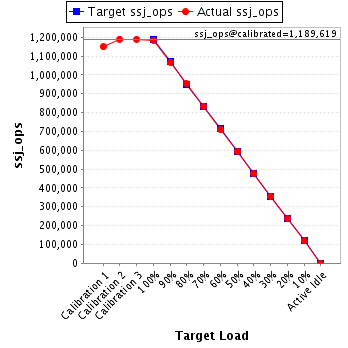

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,149,109 | ||
| Calibration 2 | 1,189,861 | ||
| Calibration 3 | 1,189,376 | ||
| ssj_ops@calibrated=1,189,619 | |||
| 100% | 99.5% | 1,189,619 | 1,183,480 |
| 90% | 89.8% | 1,070,657 | 1,067,791 |
| 80% | 80.1% | 951,695 | 952,377 |
| 70% | 70.2% | 832,733 | 834,538 |
| 60% | 59.8% | 713,771 | 711,865 |
| 50% | 49.9% | 594,809 | 593,482 |
| 40% | 40.0% | 475,847 | 475,542 |
| 30% | 29.9% | 356,886 | 355,961 |
| 20% | 20.0% | 237,924 | 238,235 |
| 10% | 10.1% | 118,962 | 119,718 |
| Active Idle | 0 | 0 | |
