Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,246,966
ssj_ops@100% per JVM = 155,871
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 7, 2012
Hardware Availability: Mar-2012 Software Availability: Jan-2010 Publication: May 2, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,222,068
Calibration 2     1,246,439
Calibration 3     1,246,438
ssj_ops@calibrated=1,246,438
100% 100.0% 1,246,438 1,246,966
90% 90.1% 1,121,795 1,122,977
80% 80.0% 997,151 996,635
70% 70.0% 872,507 872,769
60% 59.9% 747,863 746,015
50% 49.7% 623,219 619,548
40% 40.1% 498,575 500,094
30% 29.9% 373,932 372,739
20% 20.0% 249,288 248,716
10% 10.1% 124,644 125,910
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8 GB
Memory Details: 8GB 2Rx4 PC3L-10600E ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1706m -Xms2048m -Xmx2048m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [f,f0,f00,f000,f0000,f00000,f000000,f0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: V009
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-QTG213U7OFT.001 157,210
WIN-QTG213U7OFT.002 156,138
WIN-QTG213U7OFT.003 155,815
WIN-QTG213U7OFT.004 154,502
WIN-QTG213U7OFT.005 154,335
WIN-QTG213U7OFT.006 156,656
WIN-QTG213U7OFT.007 156,685
WIN-QTG213U7OFT.008 155,625
ssj_ops@100% 1,246,966
ssj_ops@100% per JVM 155,871

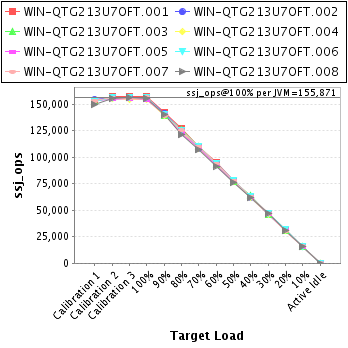

Graph of per-instance results
JVM 'WIN-QTG213U7OFT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,741
Calibration 2     157,451
Calibration 3     157,163
ssj_ops@calibrated=157,307
100% 99.9% 157,307 157,210
90% 90.5% 141,576 142,357
80% 80.5% 125,846 126,563
70% 70.2% 110,115 110,384
60% 60.1% 94,384 94,549
50% 49.8% 78,653 78,277
40% 40.1% 62,923 63,114
30% 30.0% 47,192 47,167
20% 20.1% 31,461 31,562
10% 10.0% 15,731 15,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,233
Calibration 2     156,238
Calibration 3     155,864
ssj_ops@calibrated=156,051
100% 100.1% 156,051 156,138
90% 90.6% 140,446 141,427
80% 80.2% 124,841 125,198
70% 69.4% 109,236 108,316
60% 60.1% 93,631 93,780
50% 49.7% 78,025 77,621
40% 39.9% 62,420 62,193
30% 29.7% 46,815 46,306
20% 20.0% 31,210 31,162
10% 10.2% 15,605 15,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,749
Calibration 2     155,828
Calibration 3     155,998
ssj_ops@calibrated=155,913
100% 99.9% 155,913 155,815
90% 89.6% 140,322 139,728
80% 80.8% 124,730 125,923
70% 70.3% 109,139 109,600
60% 59.8% 93,548 93,266
50% 49.7% 77,956 77,481
40% 40.7% 62,365 63,527
30% 29.7% 46,774 46,290
20% 20.0% 31,183 31,243
10% 10.1% 15,591 15,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,820
Calibration 2     155,076
Calibration 3     154,521
ssj_ops@calibrated=154,799
100% 99.8% 154,799 154,502
90% 89.8% 139,319 139,038
80% 80.4% 123,839 124,391
70% 70.0% 108,359 108,380
60% 59.9% 92,879 92,724
50% 49.9% 77,399 77,214
40% 39.8% 61,919 61,553
30% 29.9% 46,440 46,307
20% 19.8% 30,960 30,674
10% 10.0% 15,480 15,457
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,616
Calibration 2     154,443
Calibration 3     155,046
ssj_ops@calibrated=154,744
100% 99.7% 154,744 154,335
90% 90.9% 139,270 140,594
80% 79.2% 123,795 122,549
70% 70.5% 108,321 109,149
60% 59.7% 92,847 92,362
50% 49.9% 77,372 77,239
40% 40.5% 61,898 62,625
30% 30.0% 46,423 46,418
20% 20.0% 30,949 30,960
10% 10.2% 15,474 15,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,155
Calibration 2     155,837
Calibration 3     156,444
ssj_ops@calibrated=156,140
100% 100.3% 156,140 156,656
90% 90.0% 140,526 140,531
80% 80.4% 124,912 125,557
70% 70.7% 109,298 110,405
60% 60.3% 93,684 94,080
50% 49.8% 78,070 77,691
40% 40.1% 62,456 62,576
30% 29.7% 46,842 46,443
20% 20.3% 31,228 31,625
10% 10.0% 15,614 15,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,963
Calibration 2     155,911
Calibration 3     155,420
ssj_ops@calibrated=155,666
100% 100.7% 155,666 156,685
90% 89.3% 140,099 139,005
80% 80.6% 124,532 125,441
70% 70.5% 108,966 109,719
60% 60.3% 93,399 93,793
50% 49.9% 77,833 77,702
40% 40.2% 62,266 62,616
30% 29.9% 46,700 46,617
20% 19.5% 31,133 30,312
10% 10.2% 15,567 15,846
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,790
Calibration 2     155,656
Calibration 3     155,983
ssj_ops@calibrated=155,819
100% 99.9% 155,819 155,625
90% 90.0% 140,237 140,297
80% 77.7% 124,655 121,012
70% 68.6% 109,073 106,816
60% 58.7% 93,492 91,462
50% 49.0% 77,910 76,323
40% 39.7% 62,328 61,890
30% 30.3% 46,746 47,191
20% 20.0% 31,164 31,178
10% 10.2% 15,582 15,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
