Huawei Technologies Co., Ltd RH2288 V2 | SPECpower_ssj2008 = 4,669 overall ssj_ops/watt | ||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Mar 7, 2012 |
Hardware Availability: | Mar-2012 | Software Availability: | Jan-2010 | Publication: | May 2, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

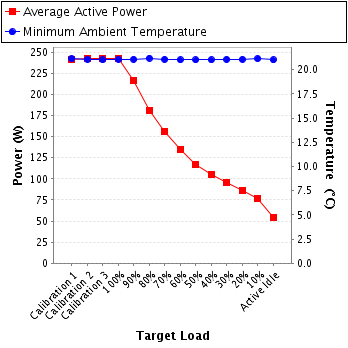

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 241 | 21.1 |
Calibration 2 | 243 | 21.1 |
Calibration 3 | 243 | 21.0 |
100% | 243 | 21.1 |
90% | 217 | 21.1 |
80% | 181 | 21.2 |
70% | 157 | 21.1 |
60% | 135 | 21.0 |
50% | 117 | 21.0 |
40% | 106 | 21.0 |
30% | 96.2 | 21.1 |
20% | 86.2 | 21.1 |
10% | 76.3 | 21.1 |
Active Idle | 54.7 | 21.0 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91K630156 |
Connectivity: | RS232 |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
Accredited by: | Calibration and Testing Center of CEPREI |
Calibration Label: | B11004997-0007 |
Date of Calibration: | 20-Jun-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | none |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Temperature@lert |
Model: | TM-STD30 |
Driver Version: | 3.1.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | none |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 225 | 300.0 | 1.09 | 2.0 | 0.986 | 241 | 0.7% |
Calibration 2 | 225 | 300.0 | 1.09 | 2.0 | 0.986 | 243 | 0.7% |
Calibration 3 | 226 | 300.0 | 1.09 | 2.0 | 0.986 | 243 | 0.7% |
100% | 225 | 300.0 | 1.09 | 2.0 | 0.986 | 243 | 0.7% |
90% | 225 | 300.0 | 0.986 | 1.0 | 0.982 | 217 | 0.6% |
80% | 225 | 300.0 | 0.823 | 1.0 | 0.976 | 181 | 0.6% |
70% | 226 | 300.0 | 0.702 | 1.0 | 0.989 | 157 | 0.6% |
60% | 225 | 300.0 | 0.609 | 1.0 | 0.985 | 135 | 0.7% |
50% | 225 | 300.0 | 0.529 | 1.0 | 0.980 | 117 | 0.7% |
40% | 225 | 300.0 | 0.480 | 0.5 | 0.975 | 106 | 0.6% |
30% | 225 | 300.0 | 0.440 | 0.5 | 0.969 | 96.2 | 0.6% |
20% | 226 | 300.0 | 0.398 | 0.5 | 0.961 | 86.2 | 0.6% |
10% | 225 | 300.0 | 0.356 | 0.5 | 0.951 | 76.3 | 0.7% |
Active Idle | 226 | 300.0 | 0.266 | 0.5 | 0.912 | 54.7 | 0.8% |
