Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 960,074
ssj_ops@100% per JVM = 120,009
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 6, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Mar 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     944,616
Calibration 2     964,072
Calibration 3     962,158
ssj_ops@calibrated=963,115
100% 99.7% 963,115 960,074
90% 90.3% 866,804 869,810
80% 79.5% 770,492 765,756
70% 69.8% 674,181 672,236
60% 60.0% 577,869 577,401
50% 49.9% 481,558 480,922
40% 39.8% 385,246 383,729
30% 30.0% 288,935 289,097
20% 20.0% 192,623 193,086
10% 10.0% 96,312 96,723
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2650L
CPU Characteristics: 8-Core, 1.80 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 2.3 GHz)
CPU Frequency (MHz): 1800
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8 GB
Memory Details: 8GB 2Rx4 PC3L-10600E ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1706m -Xms2048m -Xmx2048m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [f,f0,f00,f000,f0000,f00000,f000000,f0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: V009
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-QTG213U7OFT.001 121,585
WIN-QTG213U7OFT.002 120,432
WIN-QTG213U7OFT.003 119,916
WIN-QTG213U7OFT.004 119,803
WIN-QTG213U7OFT.005 120,341
WIN-QTG213U7OFT.006 120,731
WIN-QTG213U7OFT.007 120,565
WIN-QTG213U7OFT.008 116,701
ssj_ops@100% 960,074
ssj_ops@100% per JVM 120,009

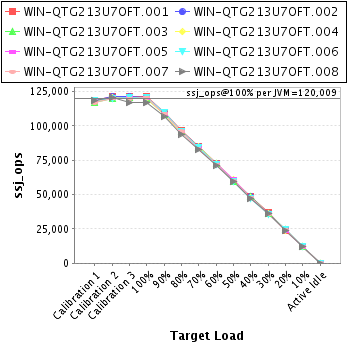

Graph of per-instance results
JVM 'WIN-QTG213U7OFT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,622
Calibration 2     121,281
Calibration 3     121,435
ssj_ops@calibrated=121,358
100% 100.2% 121,358 121,585
90% 90.3% 109,222 109,558
80% 79.6% 97,086 96,563
70% 69.9% 84,951 84,817
60% 60.0% 72,815 72,779
50% 49.9% 60,679 60,517
40% 40.0% 48,543 48,494
30% 30.3% 36,407 36,781
20% 19.9% 24,272 24,154
10% 10.0% 12,136 12,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,335
Calibration 2     121,158
Calibration 3     121,111
ssj_ops@calibrated=121,135
100% 99.4% 121,135 120,432
90% 89.9% 109,021 108,854
80% 79.0% 96,908 95,756
70% 69.9% 84,794 84,726
60% 60.0% 72,681 72,737
50% 49.9% 60,567 60,387
40% 39.8% 48,454 48,241
30% 30.0% 36,340 36,397
20% 20.1% 24,227 24,391
10% 10.2% 12,113 12,314
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,262
Calibration 2     120,145
Calibration 3     120,794
ssj_ops@calibrated=120,469
100% 99.5% 120,469 119,916
90% 90.1% 108,422 108,517
80% 79.8% 96,376 96,128
70% 69.9% 84,329 84,239
60% 60.0% 72,282 72,296
50% 49.5% 60,235 59,613
40% 40.4% 48,188 48,622
30% 29.9% 36,141 36,056
20% 20.2% 24,094 24,289
10% 9.9% 12,047 11,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,058
Calibration 2     120,660
Calibration 3     120,701
ssj_ops@calibrated=120,681
100% 99.3% 120,681 119,803
90% 90.0% 108,612 108,622
80% 79.1% 96,544 95,464
70% 70.1% 84,476 84,628
60% 60.2% 72,408 72,675
50% 50.2% 60,340 60,632
40% 39.9% 48,272 48,170
30% 29.8% 36,204 35,917
20% 19.7% 24,136 23,741
10% 10.1% 12,068 12,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,526
Calibration 2     120,213
Calibration 3     120,856
ssj_ops@calibrated=120,534
100% 99.8% 120,534 120,341
90% 90.4% 108,481 108,962
80% 79.8% 96,427 96,155
70% 69.5% 84,374 83,716
60% 60.0% 72,321 72,320
50% 50.6% 60,267 60,990
40% 39.8% 48,214 48,004
30% 30.1% 36,160 36,248
20% 19.7% 24,107 23,750
10% 10.0% 12,053 12,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,716
Calibration 2     119,888
Calibration 3     120,597
ssj_ops@calibrated=120,243
100% 100.4% 120,243 120,731
90% 91.5% 108,218 110,048
80% 79.6% 96,194 95,662
70% 69.9% 84,170 84,029
60% 59.5% 72,146 71,534
50% 49.5% 60,121 59,486
40% 39.5% 48,097 47,465
30% 29.7% 36,073 35,689
20% 20.4% 24,049 24,478
10% 10.1% 12,024 12,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,772
Calibration 2     120,208
Calibration 3     119,912
ssj_ops@calibrated=120,060
100% 100.4% 120,060 120,565
90% 90.5% 108,054 108,634
80% 80.0% 96,048 96,026
70% 69.3% 84,042 83,148
60% 59.8% 72,036 71,844
50% 49.8% 60,030 59,833
40% 39.7% 48,024 47,677
30% 29.7% 36,018 35,697
20% 20.4% 24,012 24,495
10% 10.0% 12,006 11,986
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,323
Calibration 2     120,518
Calibration 3     116,754
ssj_ops@calibrated=118,636
100% 98.4% 118,636 116,701
90% 89.9% 106,772 106,615
80% 79.2% 94,909 94,004
70% 69.9% 83,045 82,933
60% 60.0% 71,181 71,217
50% 50.1% 59,318 59,465
40% 39.7% 47,454 47,055
30% 30.6% 35,591 36,312
20% 20.1% 23,727 23,787
10% 10.1% 11,864 12,010
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
