SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd RH2288 V2 | SPECpower_ssj2008 = 4,369 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Mar 6, 2012 |
| Hardware Availability: | Mar-2012 | Software Availability: | Dec-2011 | Publication: | Mar 28, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

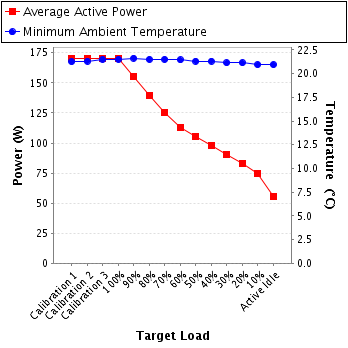

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 170 | 21.2 |
| Calibration 2 | 171 | 21.3 |
| Calibration 3 | 171 | 21.5 |
| 100% | 170 | 21.5 |
| 90% | 155 | 21.6 |
| 80% | 139 | 21.5 |
| 70% | 126 | 21.5 |
| 60% | 113 | 21.4 |
| 50% | 106 | 21.3 |
| 40% | 98.3 | 21.3 |
| 30% | 90.7 | 21.1 |
| 20% | 82.9 | 21.1 |
| 10% | 74.4 | 20.9 |
| Active Idle | 55.3 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K630156 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | B11004997-0007 |
| Date of Calibration: | 20-Jun-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | none |

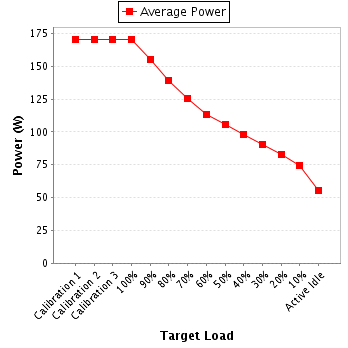

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 224 | 300.0 | 0.780 | 2.0 | 0.973 | 170 | 0.8% |
| Calibration 2 | 224 | 300.0 | 0.782 | 2.0 | 0.974 | 171 | 0.8% |
| Calibration 3 | 224 | 300.0 | 0.782 | 2.0 | 0.974 | 171 | 0.8% |
| 100% | 224 | 300.0 | 0.782 | 2.0 | 0.974 | 170 | 0.8% |
| 90% | 223 | 300.0 | 0.706 | 2.0 | 0.987 | 155 | 0.8% |
| 80% | 223 | 300.0 | 0.634 | 1.0 | 0.987 | 139 | 0.6% |
| 70% | 223 | 300.0 | 0.573 | 1.0 | 0.984 | 126 | 0.7% |
| 60% | 223 | 300.0 | 0.516 | 1.0 | 0.979 | 113 | 0.7% |
| 50% | 223 | 300.0 | 0.485 | 1.0 | 0.976 | 106 | 0.7% |
| 40% | 224 | 300.0 | 0.452 | 1.0 | 0.972 | 98.3 | 0.8% |
| 30% | 224 | 300.0 | 0.419 | 0.5 | 0.966 | 90.7 | 0.6% |
| 20% | 225 | 300.0 | 0.385 | 0.5 | 0.958 | 82.9 | 0.6% |
| 10% | 225 | 300.0 | 0.349 | 0.5 | 0.949 | 74.4 | 0.7% |
| Active Idle | 225 | 300.0 | 0.269 | 0.5 | 0.916 | 55.3 | 0.8% |
